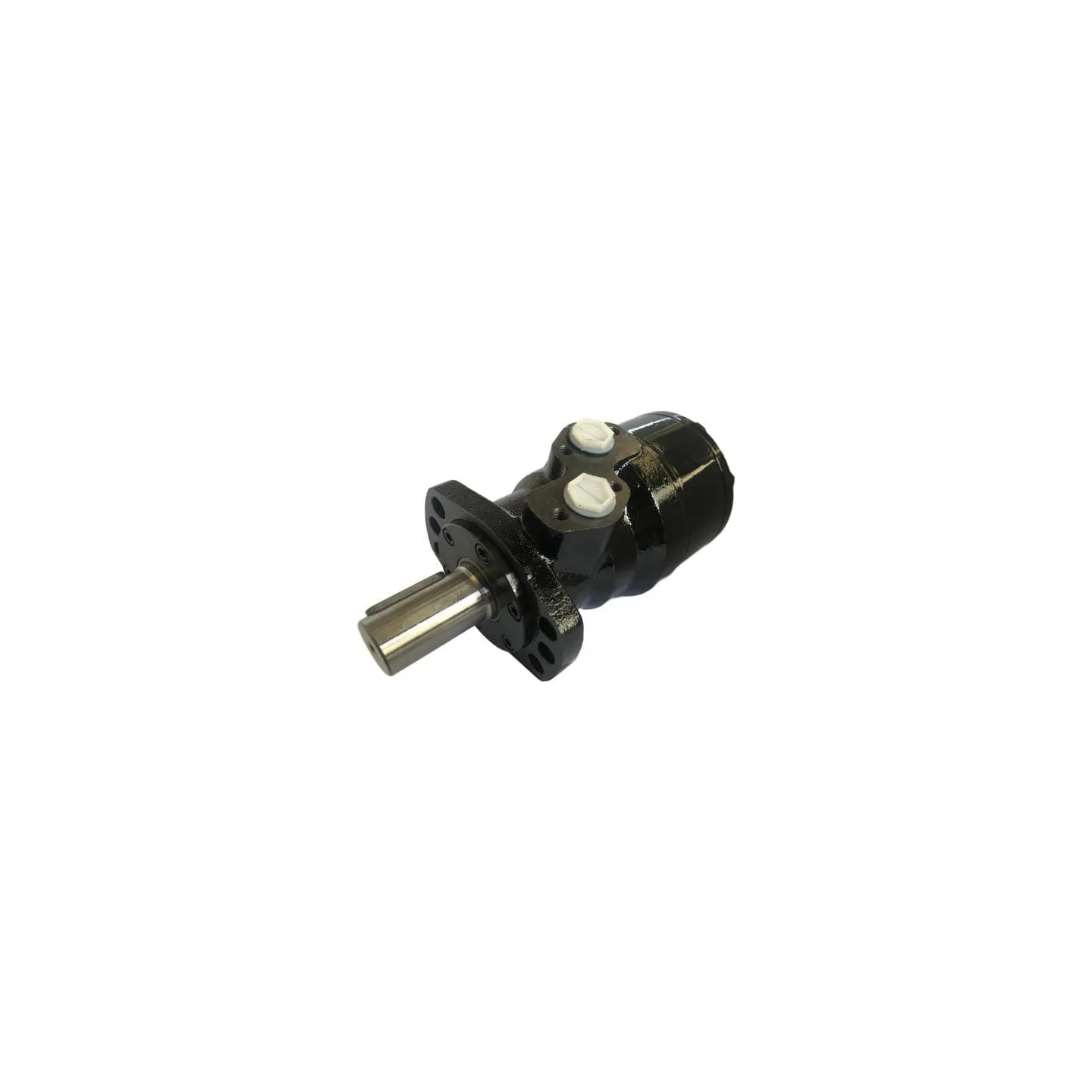

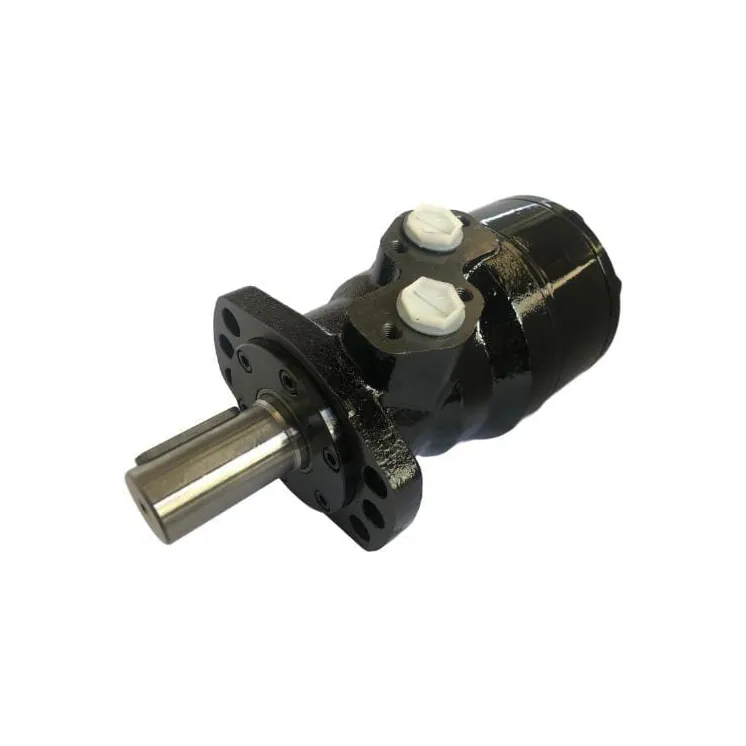

Orbit motors 400cc, SMH400A432YGP

Name: Orbit motors 400cc, SMH400A432YGP
Brand: GoPart
SKU: SMH400A432YGP
Price: 176.07 EUR
Availability: BackOrder

Apmaksas iespējas

176,07 €

AR PVN

Pēc pieprasījuma

Orbit motors 400cc, SMH400A432YGP gopart

Uz pasūtījumu

ID: 31530

Apraksts

Part number	SMH400A432YGP
EAN	8719493052015
Unit	Each
Long description	Orbital motor type SMH / gopart
Details	High axial, radial axle load and a high torque Low wear
Application range	Can be used wherever a high torque and low speeds are required Also suitable for continuous reversal of rotation Can be used continuously in high pressure conditions
Properties	Roller construction Wide shaft slip bearing From the medium-sized orbit motors series With leakage oil drain Compact and extremely robust construction
Benefits	Good price/performance ratio Long service life
Number of mounting holes	6
Shaft type	Straight parallel
Shaft diameter	32 mm
Displacement	400 cmÂ³/rev
Max continuous torque	535 NÂ·m
Max. continous working pressure	105 BAR
Max intermittend working pressure	125 BAR
Max pressure peak	155 BAR
Max. flow rate	75 l/min
Max rotation speed	185 r/min
Min rotation speed	10 r/min
Main port thread diameter	1/2 Inch
Main port thread type	G
Drain port thread diameter	1/4 Inch
Drain port thread type	G
L1Rotor length	56 mm
Max. power	10 kW
LHousing length	195 mm
