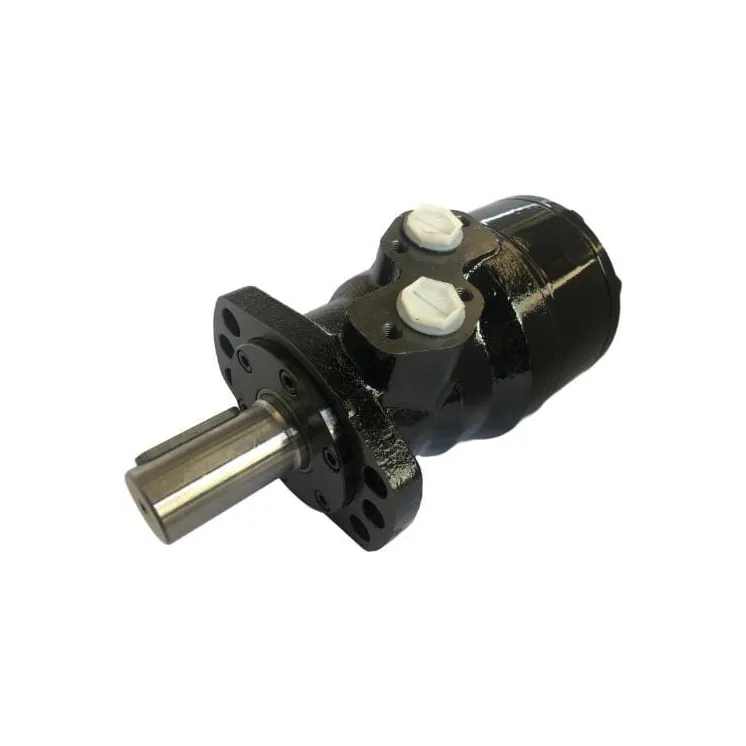

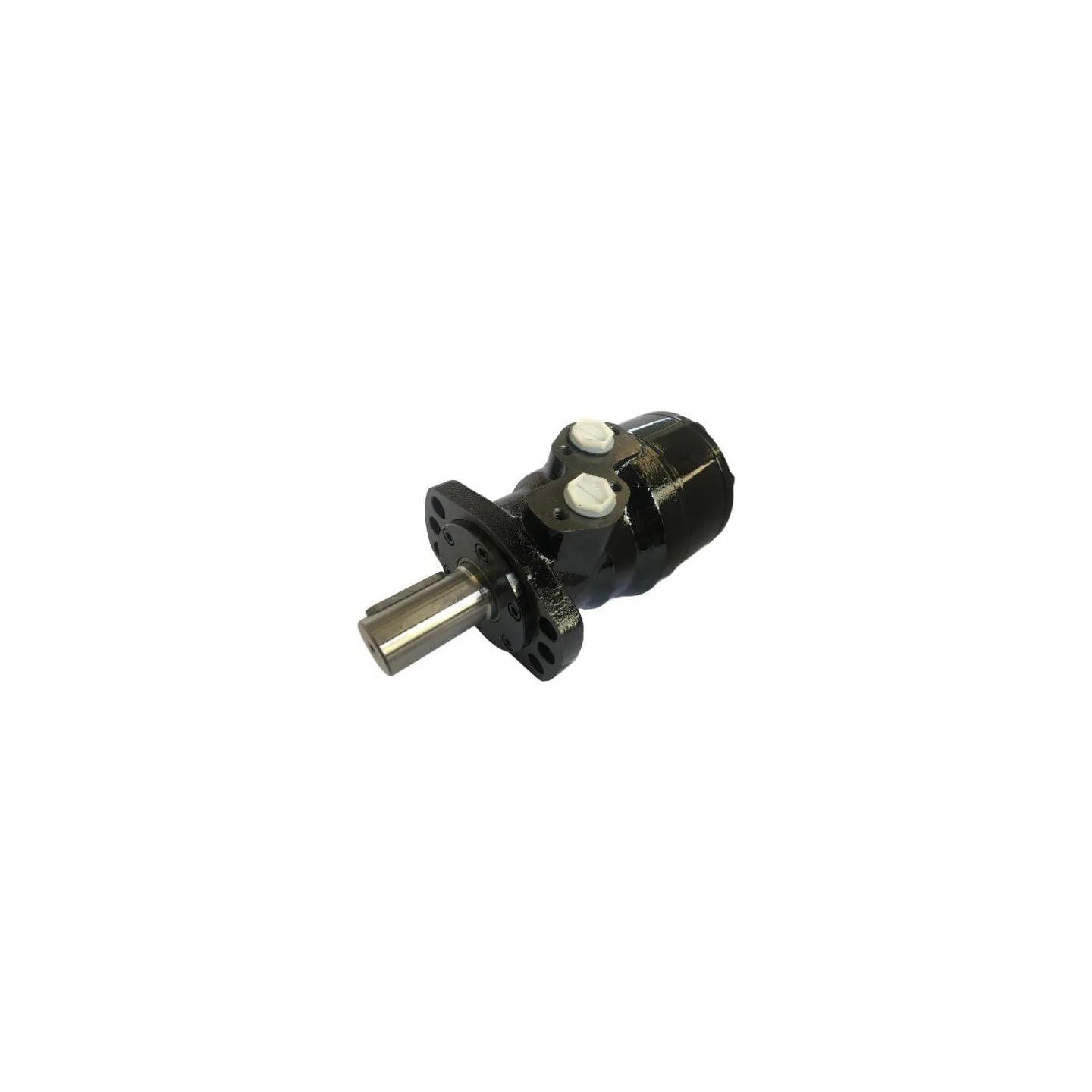

Orbit motors 200cc, SMH200A432YGP

Name: Orbit motors 200cc, SMH200A432YGP
Brand: GoPart
SKU: SMH200A432YGP
Price: 202.74 EUR
Availability: BackOrder

Apmaksas iespējas

202,74 €

AR PVN

Pēc pieprasījuma

Orbit motors 200cc, SMH200A432YGP gopart SMH2004BDGP

Uz pasūtījumu

ID: 31535

Apraksts

Part number	SMH200A432YGP
EAN	8719493059328
Unit	Each
Long description	Orbital motor type SMH / gopart
Details	High axial, radial axle load and a high torque Low wear
Application range	Can be used wherever a high torque and low speeds are required Also suitable for continuous reversal of rotation Can be used continuously in high pressure conditions
Properties	Roller construction Wide shaft slip bearing From the medium-sized orbit motors series With leakage oil drain Compact and extremely robust construction
Benefits	Good price/performance ratio Long service life
Number of mounting holes	6
Shaft type	Straight parallel
Shaft diameter	32 mm
Displacement	200 cmÂ³/rev
Max continuous torque	419 NÂ·m
Max. continous working pressure	155 BAR
Max intermittend working pressure	175 BAR
Max pressure peak	200 BAR
Max. flow rate	75 l/min
Max rotation speed	370 r/min
Min rotation speed	10 r/min
Main port thread diameter	1/2 Inch
Main port thread type	G
Drain port thread diameter	1/4 Inch
Drain port thread type	G
L1Rotor length	28 mm
Max. power	14 kW
LHousing length	168 mm
