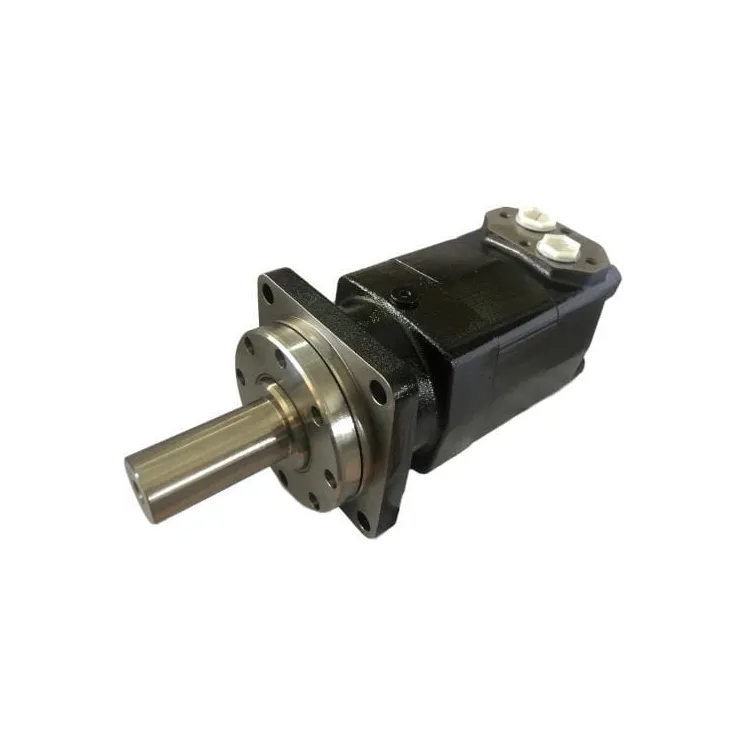

Orbit motors 500cc, SMT500A440YGP

Name: Orbit motors 500cc, SMT500A440YGP
Brand: GoPart
SKU: SMT500A440YGP
Price: 316.72 EUR
Availability: BackOrder

Apmaksas iespējas

316,72 €

AR PVN

Pēc pieprasījuma

Orbit motors 500cc, SMT500A440YGP gopart B480SMT5004MDSP SMT5004MD SMT5004MDGP

Uz pasūtījumu

ID: 31539

Apraksts

Part number	SMT500A440YGP
EAN	8719493058864
Unit	Each
Long description	Orbital motor type SMT / gopart
Details	High axial, radial axle load and a high torque
Application range	Can be used wherever a high torque and low speeds are required Also suitable for continuous reversal of rotation Suitable for continuous use with large loads
Properties	With leakage oil drain Roller construction Tapered roller bearing From the large orbit motors series Robust design Excellent starting characteristics Runs very quietly at low speeds
Benefits	Good price/performance ratio
Flange shape	Square
Number of mounting holes	4
Shaft type	Straight parallel
Shaft diameter	40 mm
Displacement	500 cmÂ³/rev
Max continuous torque	1121 NÂ·m
Max. continous working pressure	160 BAR
Max intermittend working pressure	180 BAR
Max pressure peak	210 BAR
Max rotation speed	240 r/min
Min rotation speed	5 r/min
Main port thread diameter	3/4 Inch
Main port thread type	G
Drain port thread diameter	1/4 Inch
Drain port thread type	G
Port position	Side
L1Rotor length	56.5 mm
Max. power	31 kW
L2Main port center to front flange distance	195 mm
LHousing length	245.5 mm
