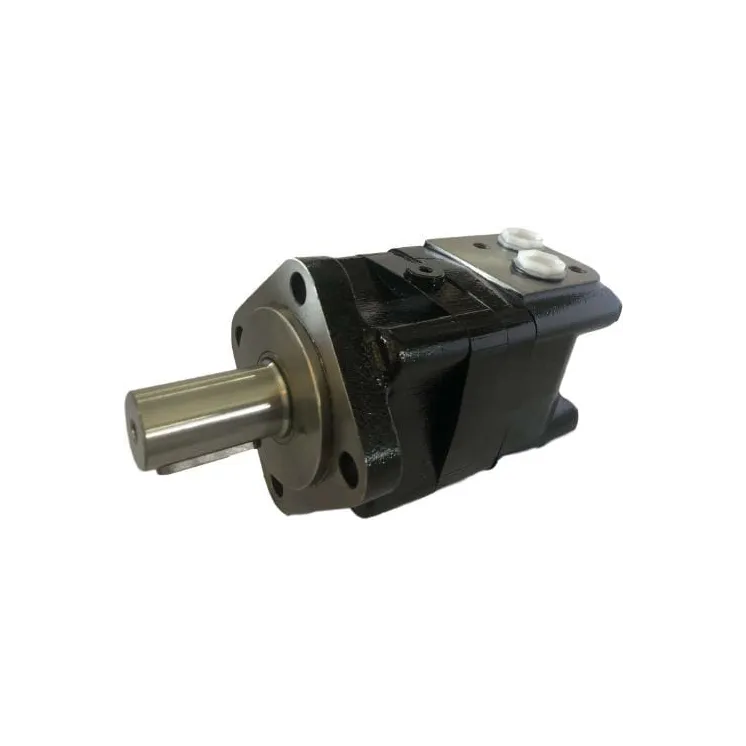

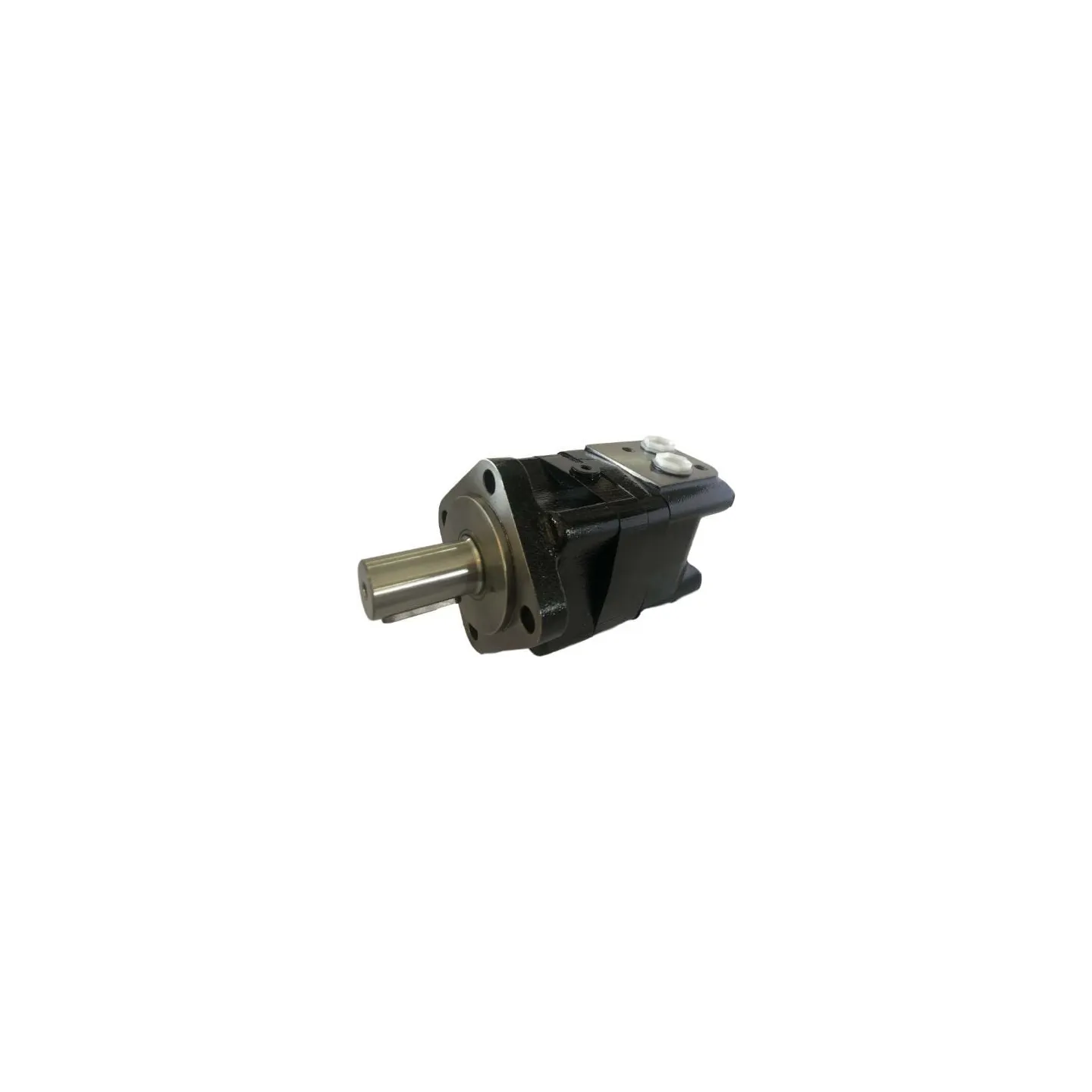

Orbit motors 125cc, SMS125A432YGP

Name: Orbit motors 125cc, SMS125A432YGP
Brand: GoPart
SKU: SMS125A432YGP
Price: 205.12 EUR
Availability: BackOrder

Apmaksas iespējas

205,12 €

AR PVN

Pēc pieprasījuma

Orbit motors 125cc, SMS125A432YGP gopart B480SMS125E4BDSP SMS125E432D00 SMS125E432D00GP

Uz pasūtījumu

ID: 31546

Apraksts

Produkta detaļas

Datu lapa

Apmaksa
100% Droši maksājumi

Piegāde
Ātri piegādes risinājumi

Preču atgriešana
30 dienu preces atgriešanas iespēja

Komentāri (0)

Šobrid vēl nav klientu atsauksmju.

Part number	SMS125A432YGP
EAN	8719493057751
Unit	Each
Long description	Orbital motor type SMS / gopart
Details	High axial, radial axle load and a high torque Runs very quietly at low speeds
Application range	Can be used wherever a high torque and low speeds are required Also suitable for continuous reversal of rotation Can be used continuously in high pressure conditions
Properties	With leakage oil drain Roller construction Tapered roller bearing From the large orbit motors series Robust and compact construction Excellent starting characteristics
Benefits	Good price/performance ratio Minimal loss of power
Flange shape	Square
Flange code	SAE-A
Number of mounting holes	4
Shaft type	Straight parallel
Shaft diameter	32 mm
Displacement	125 cmÂ³/rev
Max continuous torque	303 NÂ·m
Max. continous working pressure	175 BAR
Max intermittend working pressure	200 BAR
Max pressure peak	225 BAR
Max. flow rate	75 l/min
Max rotation speed	600 r/min
Min rotation speed	9 r/min
Main port thread diameter	1/2 Inch
Main port thread type	G
Drain port thread diameter	1/4 Inch
Drain port thread type	G
Port position	Side
L1Rotor length	19 mm
Max. power	16 kW
L2Main port center to front flange distance	132 mm
LHousing length	175 mm
