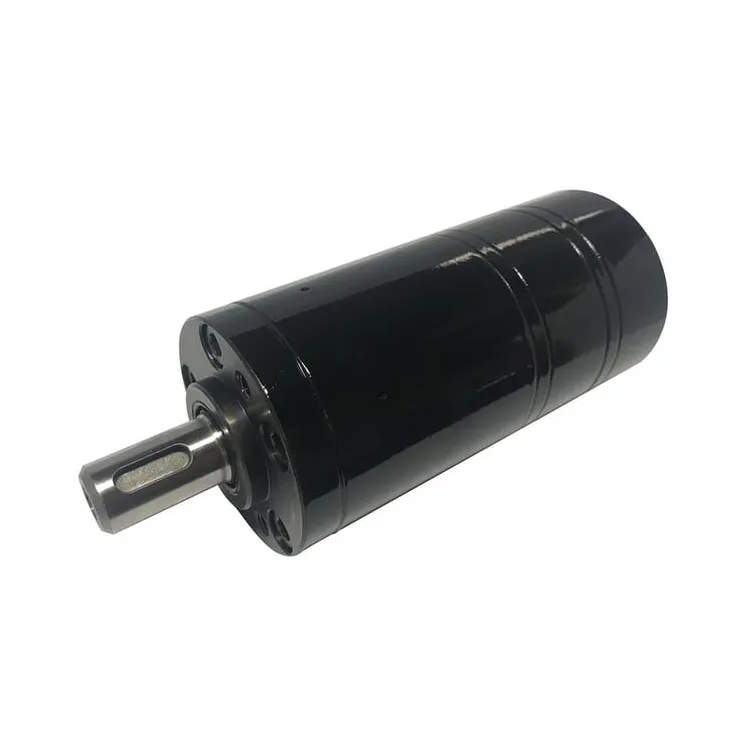

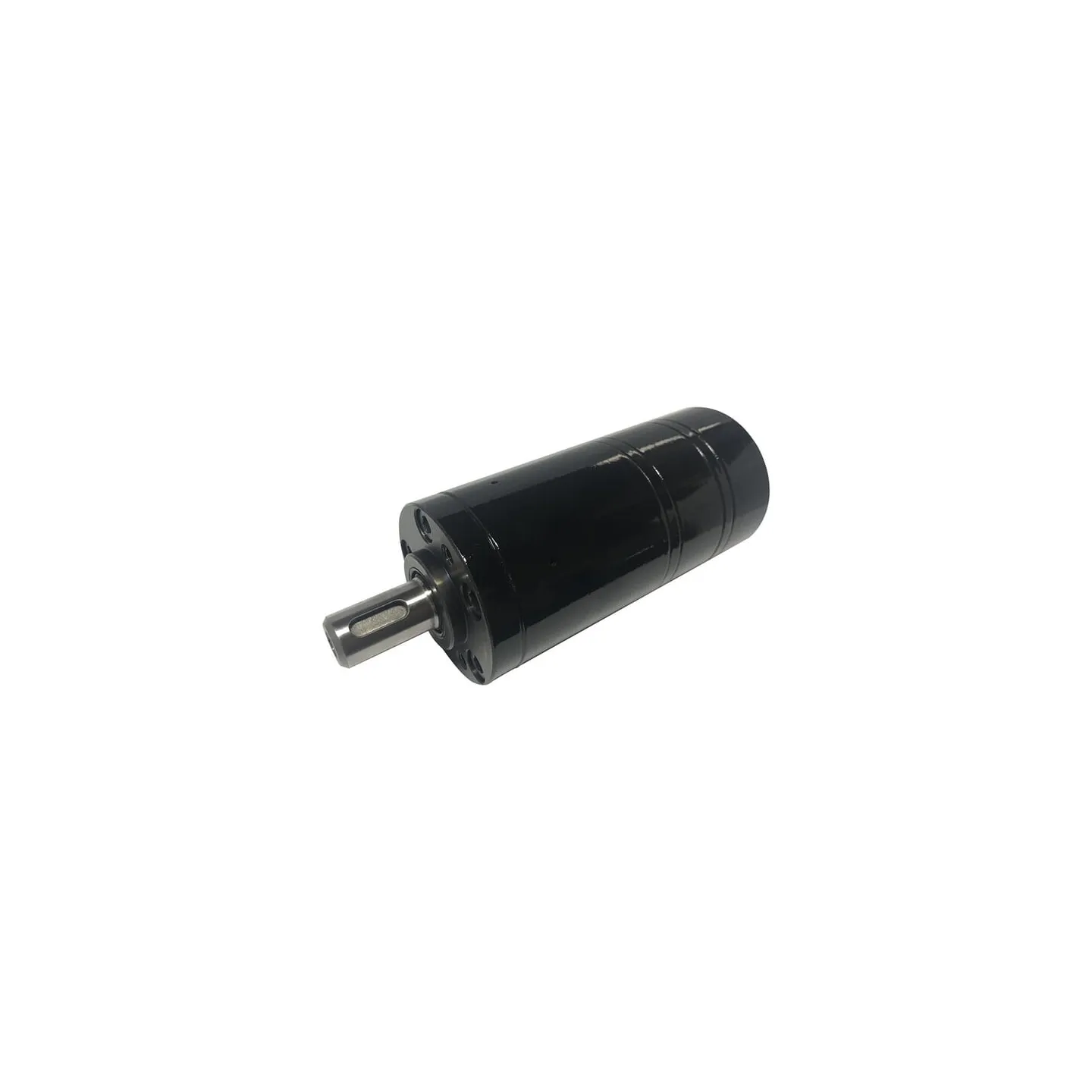

Orbit motors 20cc, SMM20CPYGP

Name: Orbit motors 20cc, SMM20CPYGP
Brand: GoPart
SKU: SMM20CPYGP
Price: 148.56 EUR
Availability: BackOrder

Apmaksas iespējas

148,56 €

AR PVN

Pēc pieprasījuma

Orbit motors 20cc, SMM20CPYGP gopart B480SMM20MAIESP SMM20MAIEGP

Uz pasūtījumu

ID: 31548

Apraksts

Part number	SMM20CPYGP
EAN	8719607280419
Unit	Each
Long description	Orbit motors are distinguished by compact design and high starting torque.
Pros	Available with rear or side connections A variety of shaft designs are available
Product details	Suitable for continuous operation at medium pressure or short-term operation at high pressure Robust and compact design Refer to technical information on maximum radial and axial loads Belongs to the series of small orbit motors
Flange shape	Round
Number of mounting holes	3
Shaft type	Cylindrical
Shaft diameter	16 mm
Displacement	20 cmÂ³/rev
Max continuous torque	25 NÂ·m
Max. continous working pressure	100 BAR
Max intermittend working pressure	140 BAR
Max pressure peak	200 BAR
Max. flow rate	20 l/min
Max rotation speed	1005 r/min
Main port thread diameter	3/8 Inch
Main port thread type	BSP
Drain port thread diameter	1/8 Inch
Drain port thread type	BSP
Port position	End
L1Rotor length	8.5 mm
Max. power	2.4 kW
