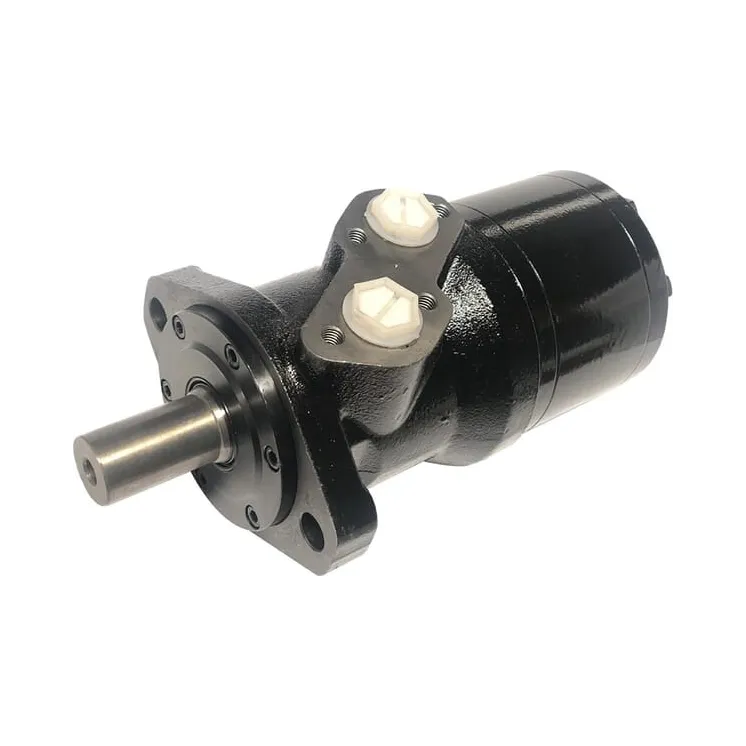

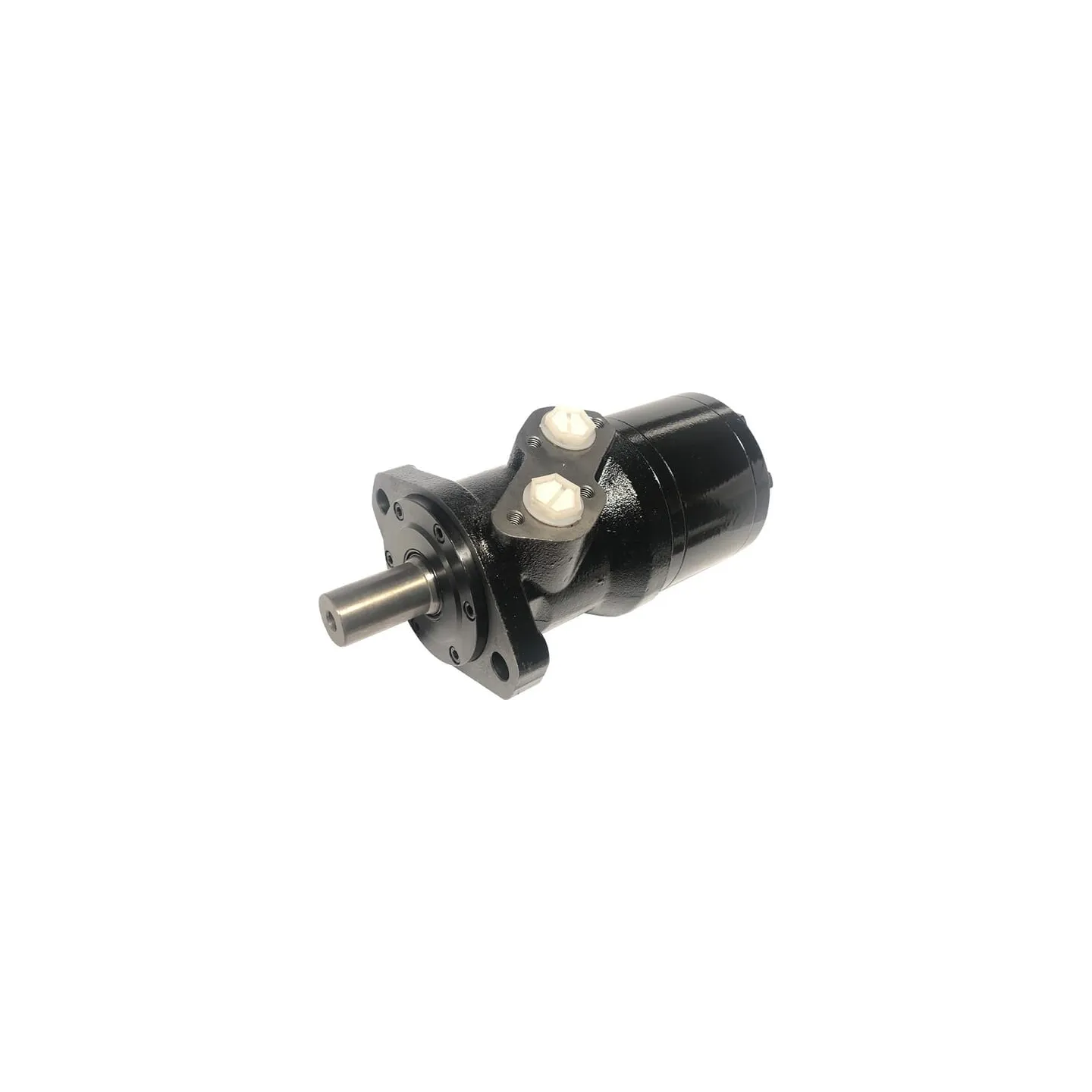

Orbit motors 250cc, SMR250A225YGP

Name: Orbit motors 250cc, SMR250A225YGP
Brand: GoPart
SKU: SMR250A225YGP
Price: 105.81 EUR
Availability: InStock

Apmaksas iespējas

105,81 €

AR PVN

4-5 Darba dienas

Orbit motors 250cc, SMR250A225YGP gopart B480SMR2502ADSP BMR2502AD SMR2502AD SMR2502ADGP VMR25011136678 VMR25011174307 WR255250A6312

IR NOLIKTAVĀ

ID: 31552

Apraksts

Part number	SMR250A225YGP
EAN	8719607280129
Unit	Each
Pros	Good value for money Long durability
Product details	With leak oil drain Roller design Wide shaft plain bearing Can be connected in series with other motors Belongs to the series of medium-sized orbital motors Robust and compact design
Flange shape	Oval
Number of mounting holes	2
Consists of	Supplied with Key
Shaft type	Cylindrical
Shaft diameter	25 mm
Displacement	250 cmÂ³/rev
Max continuous torque	380 NÂ·m
Max. continous working pressure	110 BAR
Max intermittend working pressure	140 BAR
Max pressure peak	160 BAR
Max. flow rate	60 l/min
Max rotation speed	235 r/min
Min rotation speed	10 r/min
Main port thread diameter	1/2 Inch
Main port thread type	BSP
Drain port thread diameter	1/4 Inch
Drain port thread type	BSP
Port position	Side
L1Rotor length	44 mm
Max. power	10 kW
