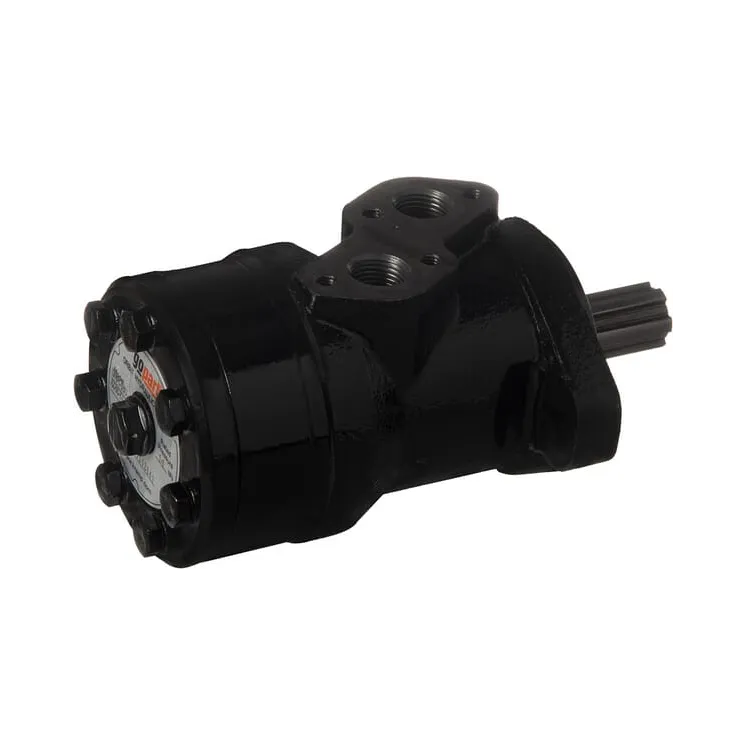

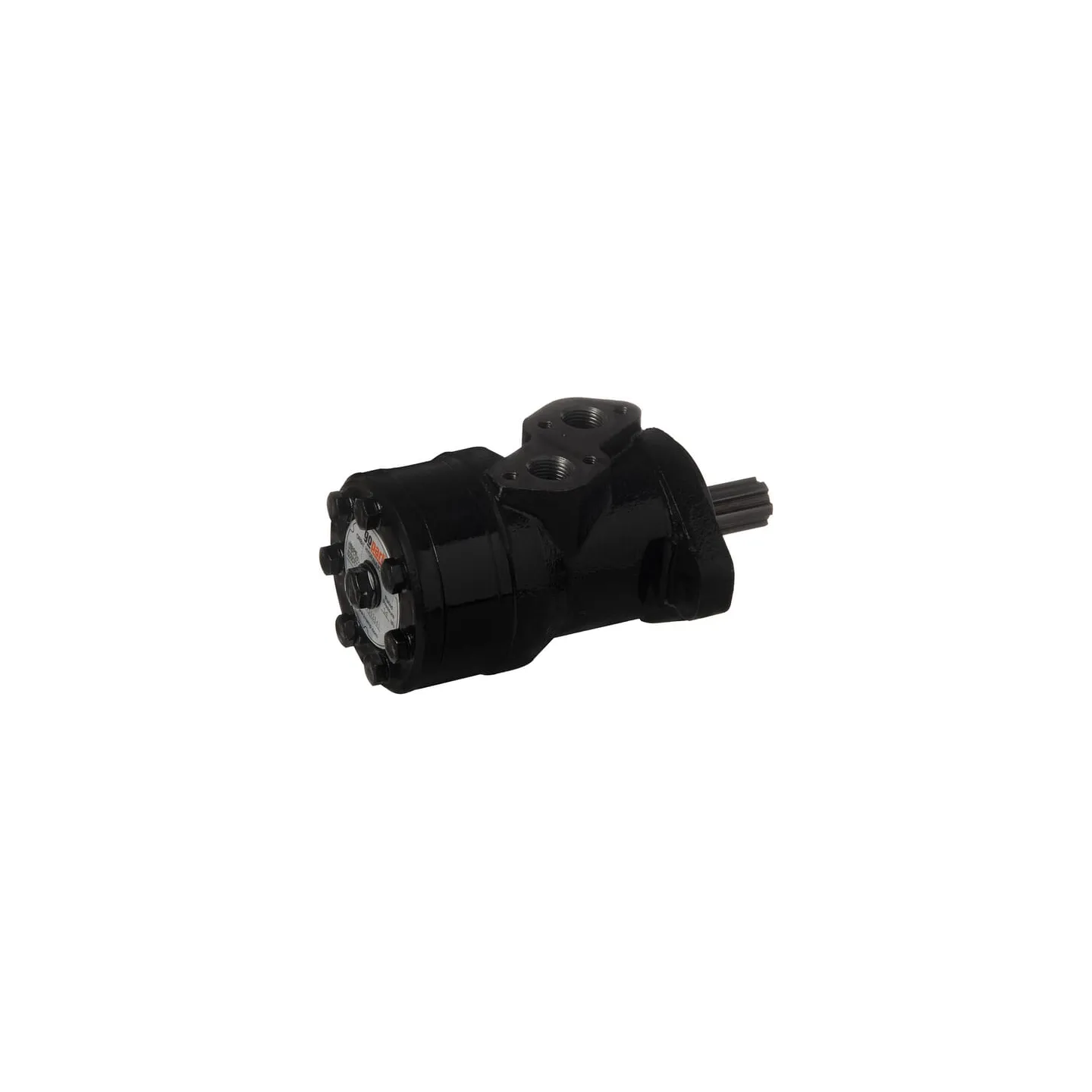

Orbit motors 160cc, SMR160A26BYGP

Name: Orbit motors 160cc, SMR160A26BYGP
Brand: GoPart
SKU: SMR160A26BYGP
Price: 139.15 EUR
Availability: BackOrder

Apmaksas iespējas

139,15 €

AR PVN

Pēc pieprasījuma

Orbit motors 160cc, SMR160A26BYGP gopart B480SMR1602EDSP SMR1602EDGP

Uz pasūtījumu

ID: 31557

Apraksts

Part number	SMR160A26BYGP
EAN	8719607281171
Unit	Each
Pros	Good value for money Long durability
Product details	With leak oil drain Roller design Wide shaft plain bearing Can be connected in series with other motors Belongs to the series of medium-sized orbital motors Robust and compact design
Flange shape	Oval
Number of mounting holes	2
Consists of	Supplied with Key
Shaft type	Splined
Shaft number of teeth	6
Displacement	160 cmÂ³/rev
Max continuous torque	310 NÂ·m
Max. continous working pressure	140 BAR
Max intermittend working pressure	175 BAR
Max pressure peak	200 BAR
Max. flow rate	60 l/min
Max rotation speed	370 r/min
Min rotation speed	10 r/min
Main port thread diameter	1/2 Inch
Main port thread type	BSP
Drain port thread diameter	1/4 Inch
Drain port thread type	BSP
Port position	Side
L1Rotor length	28 mm
Max. power	12.5 kW
