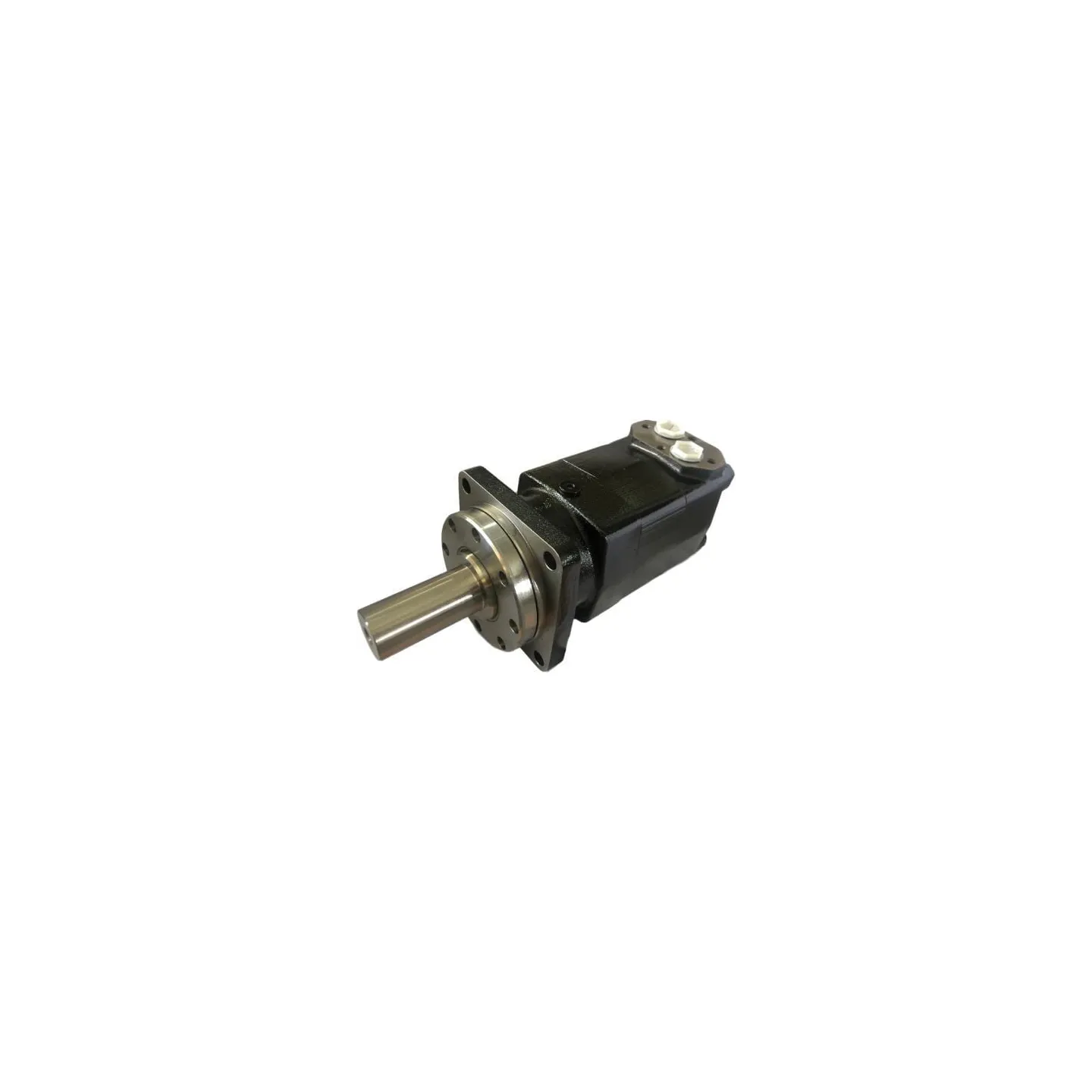

Orbit motors 200cc, SMT200A440YGP

Name: Orbit motors 200cc, SMT200A440YGP
Brand: GoPart
SKU: SMT200A440YGP
Price: 324.1 EUR
Availability: BackOrder

Apmaksas iespējas

324,10 €

AR PVN

Pēc pieprasījuma

Orbit motors 200cc, SMT200A440YGP gopart B480SMT2004MDSP SMT2004MD SMT2004MDGP

Uz pasūtījumu

ID: 31565

Apraksts

Part number	SMT200A440YGP
EAN	8719493058994
Unit	Each
Long description	Orbital motor type SMT / gopart
Details	High axial, radial axle load and a high torque
Application range	Can be used wherever a high torque and low speeds are required Also suitable for continuous reversal of rotation Suitable for continuous use with large loads
Properties	With leakage oil drain Roller construction Tapered roller bearing From the large orbit motors series Robust design Excellent starting characteristics Runs very quietly at low speeds
Benefits	Good price/performance ratio
Flange shape	Square
Number of mounting holes	4
Shaft type	Straight parallel
Shaft diameter	40 mm
Displacement	200 cmÂ³/rev
Max continuous torque	561 NÂ·m
Max. continous working pressure	200 BAR
Max intermittend working pressure	240 BAR
Max pressure peak	280 BAR
Max rotation speed	625 r/min
Min rotation speed	9 r/min
Main port thread diameter	3/4 Inch
Main port thread type	G
Drain port thread diameter	1/4 Inch
Drain port thread type	G
Port position	Side
L1Rotor length	16.5 mm
Max. power	25.2 kW
L2Main port center to front flange distance	155 mm
LHousing length	205.5 mm
