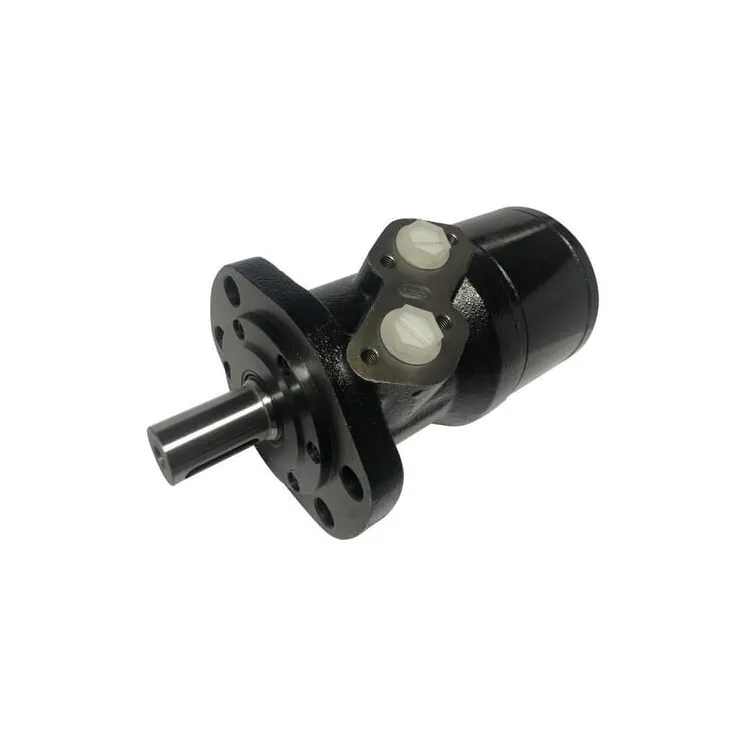

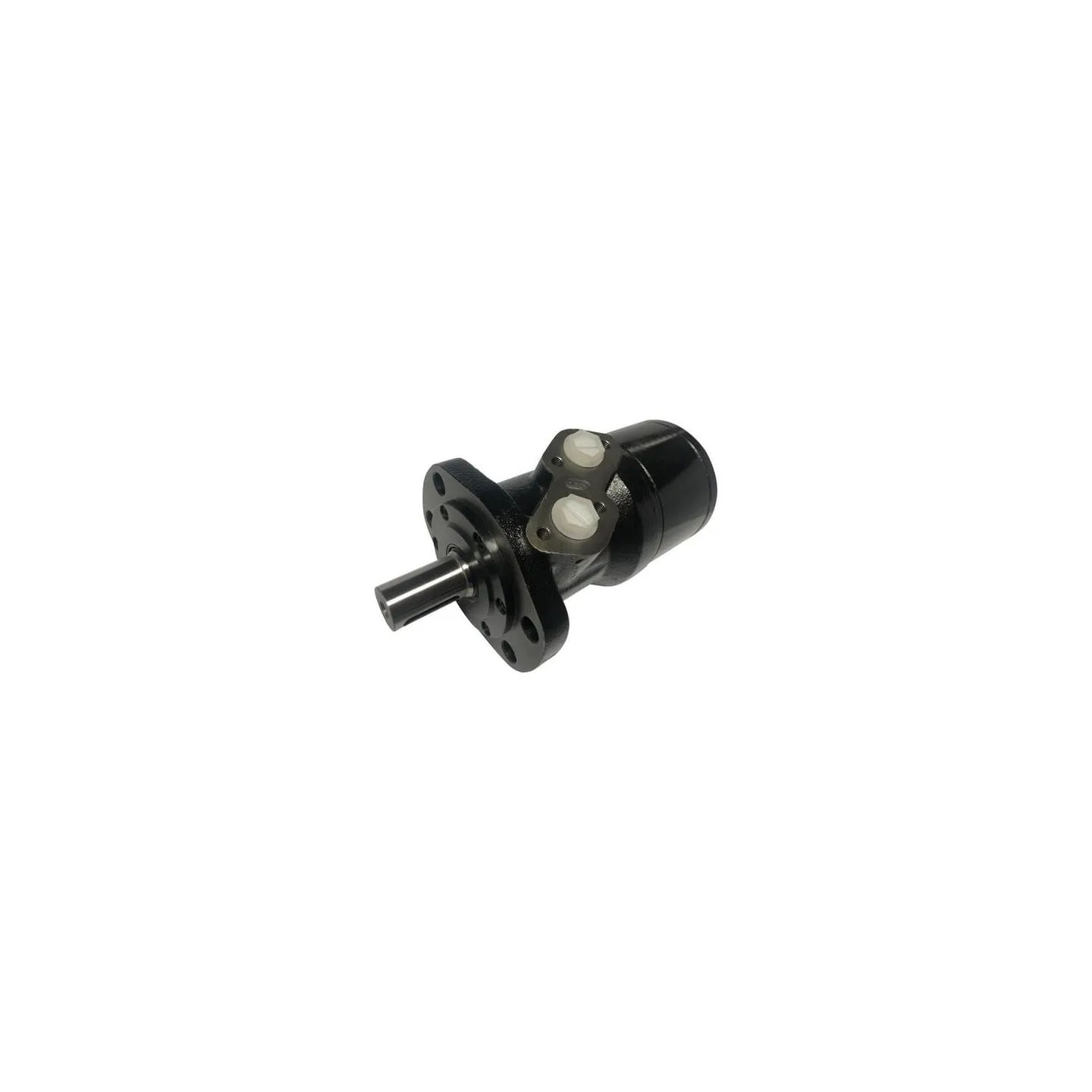

Orbit motors 200cc, SMR200A432YGP

Name: Orbit motors 200cc, SMR200A432YGP
Brand: GoPart
SKU: SMR200A432YGP
Price: 146.43 EUR
Availability: BackOrder

Apmaksas iespējas

146,43 €

AR PVN

Pēc pieprasījuma

Orbit motors 200cc, SMR200A432YGP gopart SMR2004BDB SMR2004BDGP

Uz pasūtījumu

ID: 31578

Apraksts

Part number	SMR200A432YGP
EAN	8719607280082
Unit	Each
Pros	Good value for money Long durability
Product details	With leak oil drain Roller design Wide shaft plain bearing Can be connected in series with other motors Belongs to the series of medium-sized orbital motors Robust and compact design
Flange shape	Oval
Number of mounting holes	4
Consists of	Supplied with Key
Shaft type	Cylindrical
Shaft diameter	32 mm
Displacement	200 cmÂ³/rev
Max continuous torque	369 NÂ·m
Max. continous working pressure	140 BAR
Max intermittend working pressure	175 BAR
Max pressure peak	200 BAR
Max. flow rate	60 l/min
Max rotation speed	295 r/min
Min rotation speed	10 r/min
Main port thread diameter	1/2 Inch
Main port thread type	BSP
Drain port thread diameter	1/4 Inch
Drain port thread type	BSP
Port position	Side
L1Rotor length	35 mm
Max. power	11.5 kW
