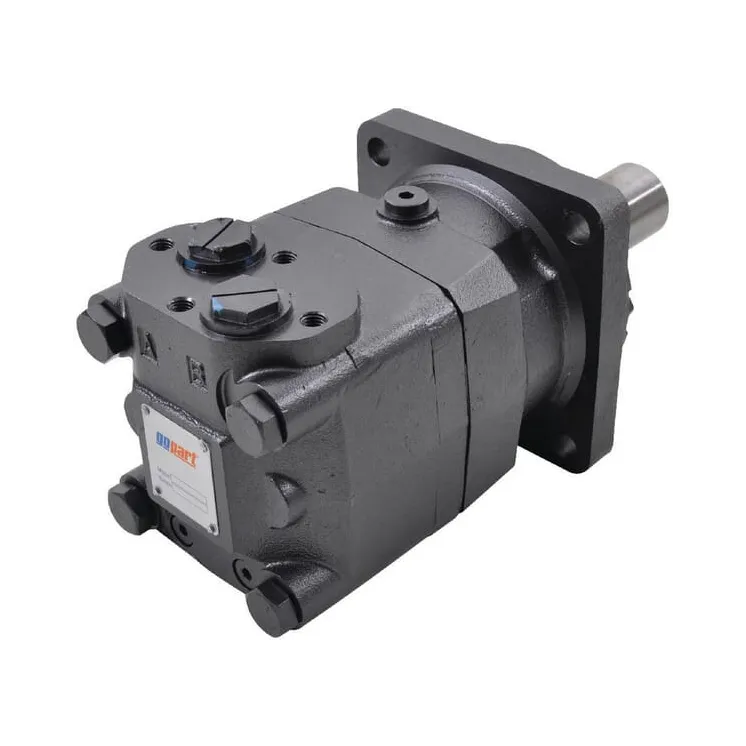

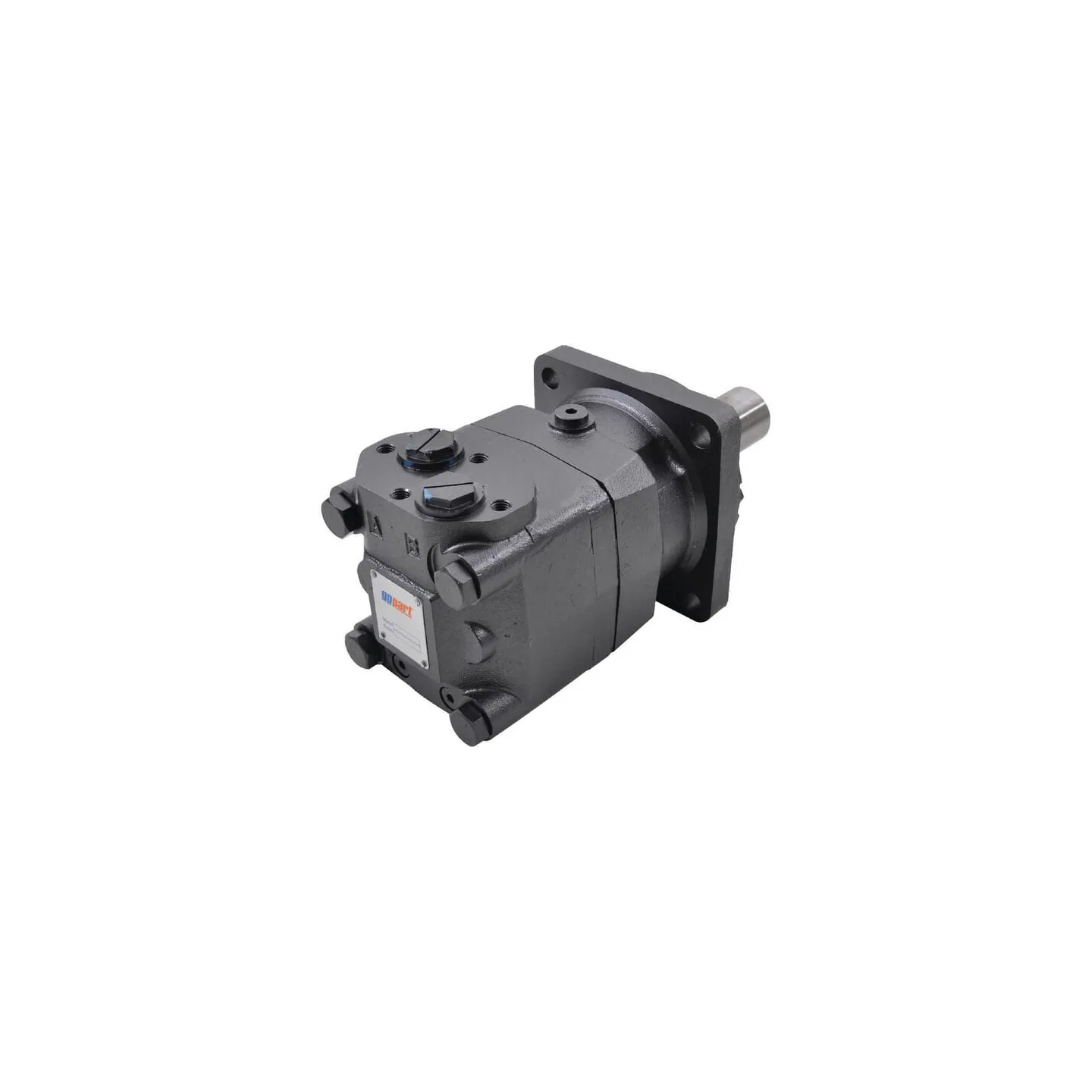

Orbītas motors SMT-630-4-M-D-GP SMT6304MDGP

Name: Orbītas motors SMT-630-4-M-D-GP SMT6304MDGP
Brand: GoPart
SKU: SMT6304MDGP
Price: 523.41 EUR
Availability: BackOrder

Apmaksas iespējas

523,41 €

AR PVN

Pēc pieprasījuma

Orbītas motors SMT-630-4-M-D-GP SMT6304MDGP gopart B480SMT6304MDSP

Uz pasūtījumu

ID: 31579

Apraksts

Part number	SMT6304MDGP
EAN	8716106064205
Unit	Each
Long description	Orbital motor type SMT / gopart
Details	High axial, radial axle load and a high torque
Application range	Can be used wherever a high torque and low speeds are required Also suitable for continuous reversal of rotation Suitable for continuous use with large loads
Properties	With leakage oil drain Roller construction Tapered roller bearing From the large orbit motors series Robust design Excellent starting characteristics Runs very quietly at low speeds
Benefits	Good price/performance ratio
Flange shape	Square
Number of mounting holes	4
Shaft type	Straight parallel
Shaft diameter	40 mm
Displacement	630 cmÂ³/rev
Max continuous torque	1318 NÂ·m
Max. continous working pressure	140 BAR
Max intermittend working pressure	160 BAR
Max pressure peak	190 BAR
Max rotation speed	196 r/min
Min rotation speed	5 r/min
Main port thread diameter	3/4 Inch
Main port thread type	G
Drain port thread diameter	1/4 Inch
Drain port thread type	G
Port position	Side
L1Rotor length	47 mm
Max. power	25.3 kW
L2Main port center to front flange distance	185.5 mm
LHousing length	237 mm
