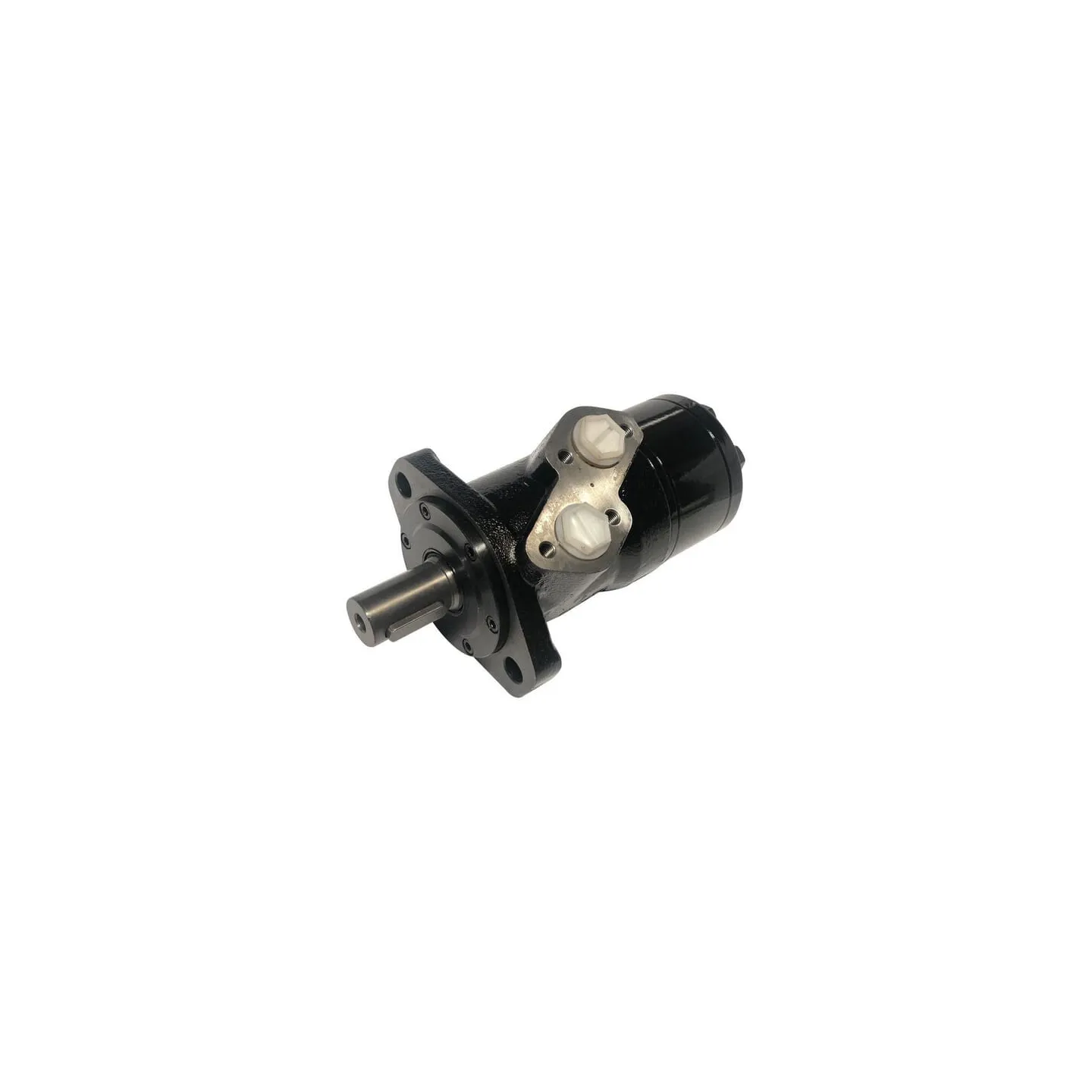

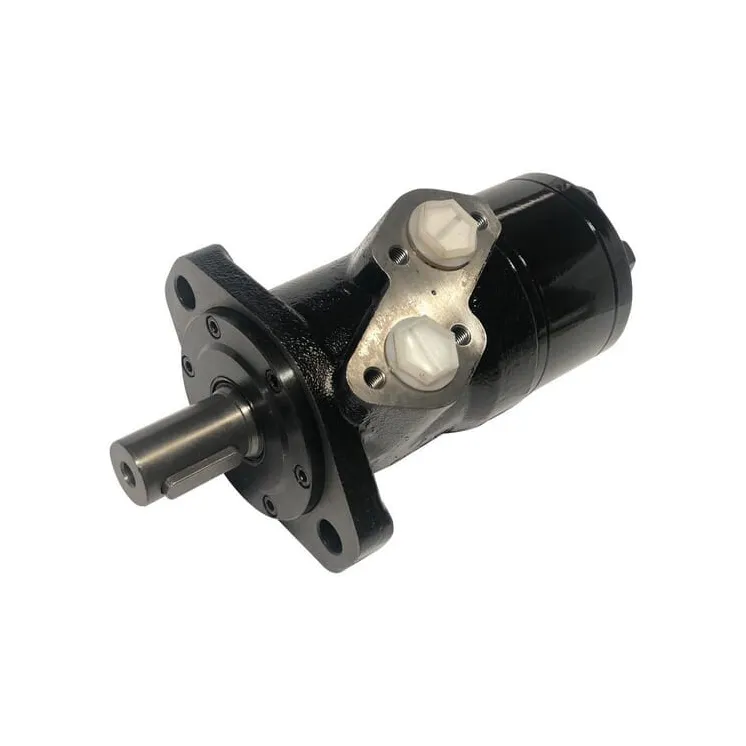

Orbit motors 200cc, SMP200A225YGP

Name: Orbit motors 200cc, SMP200A225YGP
Brand: GoPart
SKU: SMP200A225YGP
Price: 127.27 EUR
Availability: BackOrder

Apmaksas iespējas

127,27 €

AR PVN

Pēc pieprasījuma

Orbit motors 200cc, SMP200A225YGP gopart B480SMP2002ADSP BMP2002AD GFS200C2A2 SMP2002AD SMP2002ADGP VMP20011118249 VMP20011174216 WP155200A6312

Uz pasūtījumu

ID: 31582

Apraksts

Part number	SMP200A225YGP
EAN	8719607280273
Unit	Each
Long description	Orbital motor type SMP / gopart
Details	High axial, radial axle load and a high torque
Application range	Can be used wherever a high torque and low speeds are required Can be used briefly in high pressure conditions
Properties	With leakage oil drain Rotor construction Wide shaft slip bearing Can be connected to several motors in a row Suitable for use in closed systems From the medium-sized orbit motors series Robust and compact construction
Benefits	Good price/performance ratio
Flange shape	Oval
Number of mounting holes	2
Shaft type	Cylindrical
Shaft diameter	25 mm
Displacement	200 cmÂ³/rev
Max continuous torque	259 NÂ·m
Max. continous working pressure	110 BAR
Max intermittend working pressure	150 BAR
Max pressure peak	200 BAR
Max. flow rate	60 l/min
Max rotation speed	305 r/min
Min rotation speed	10 r/min
Main port thread diameter	1/2 Inch
Main port thread type	BSP
Drain port thread diameter	1/4 Inch
Drain port thread type	BSP
Port position	Side
L1Rotor length	26 mm
Max. power	9.5 kW
