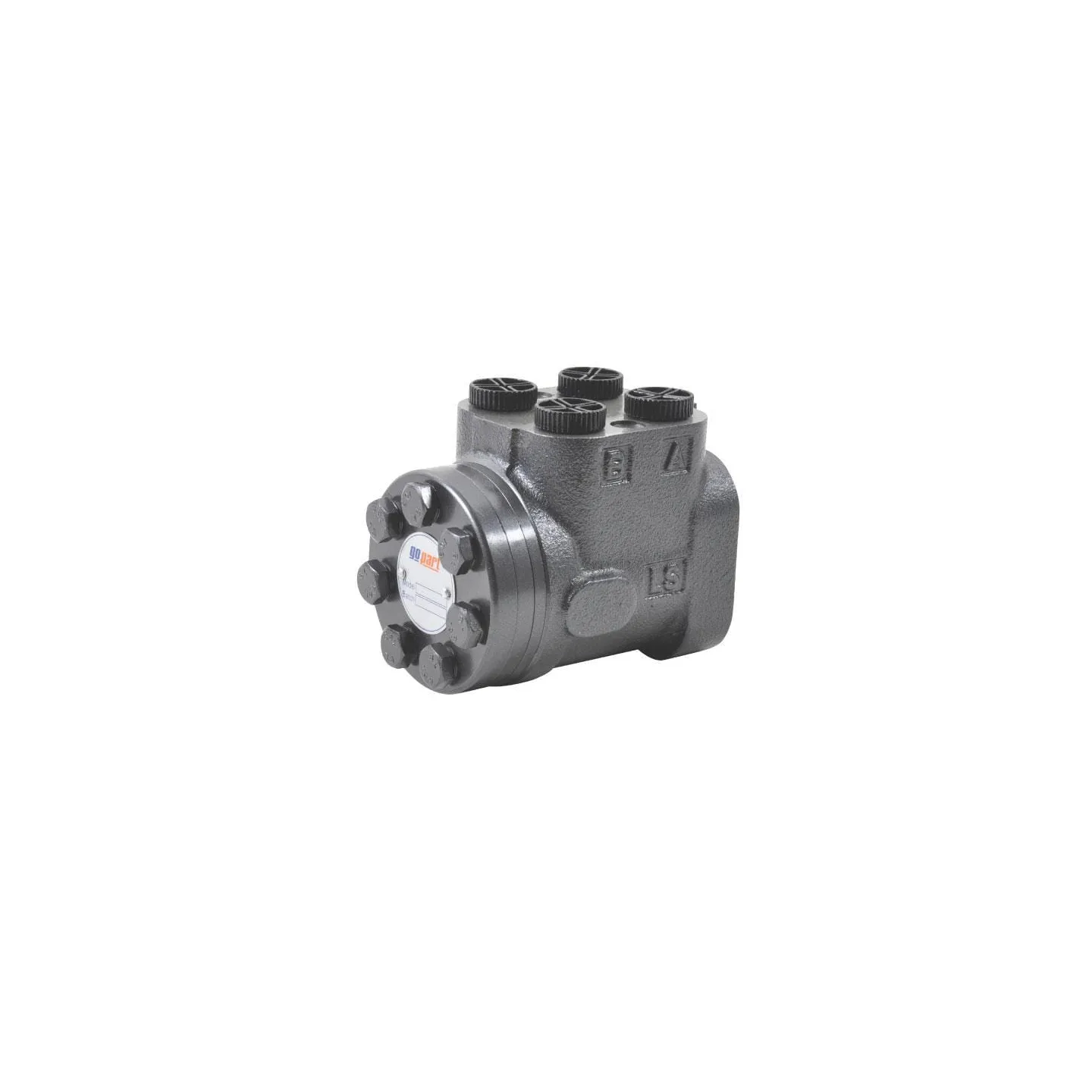

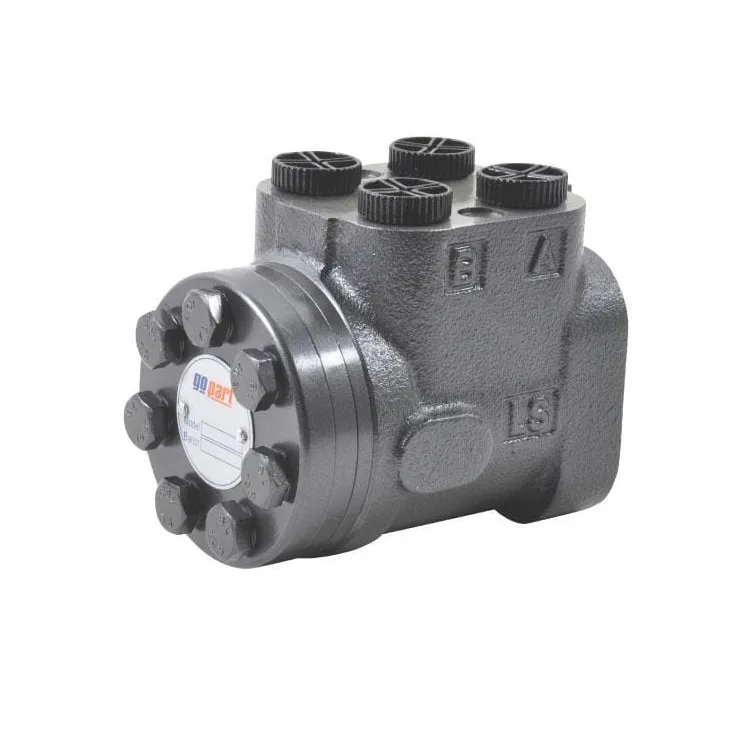

Orbītas stūres iekārta SOSPB-250- SOSPB250ONGP

Name: Orbītas stūres iekārta SOSPB-250- SOSPB250ONGP
Brand: GoPart
SKU: SOSPB250ONGP
Price: 252.7 EUR
Availability: BackOrder

Apmaksas iespējas

252,70 €

AR PVN

Pēc pieprasījuma

Orbītas stūres iekārta SOSPB-250- SOSPB250ONGP gopart B480SOSPB250ONSP

Uz pasūtījumu

ID: 31818

Apraksts

Part number	SOSPB250ONGP
EAN	8716106064311
Unit	Each
Details	Identical in design to the steering orbitrols of well-known manufacturers
Application range	Vehicles and ships with fully hydraulic steering
Properties	Compact design Design: open-centre, non reaction
Technical info	Open center Open center steering units have open connection between pump and tank in the neutral position. In open center steering systems, pumps with fixed displacement are used. Non-reaction With non-reaction steering units there is no corresponding movement of the steering wheel when the driver is not steering the vehicle.
Benefits	Good value for money High levels of safety and comfort Simple system design Minimal noise emission Requires low actuating torque from the steering wheel
Danfoss number	150-0052
Displacement	250 cmÂ³/rev
Type	ON
Max T connection pressure	25 BAR
Max. working pressure	160 BAR
Pressure settings L, R	280 BAR
Load sensing type	n/a
Min required flow	25 l/min
Thread diameter - connection A	1/2 Inch
Thread type - connection A	BSP
LDimension L1	161 mm
Material	Cast iron
