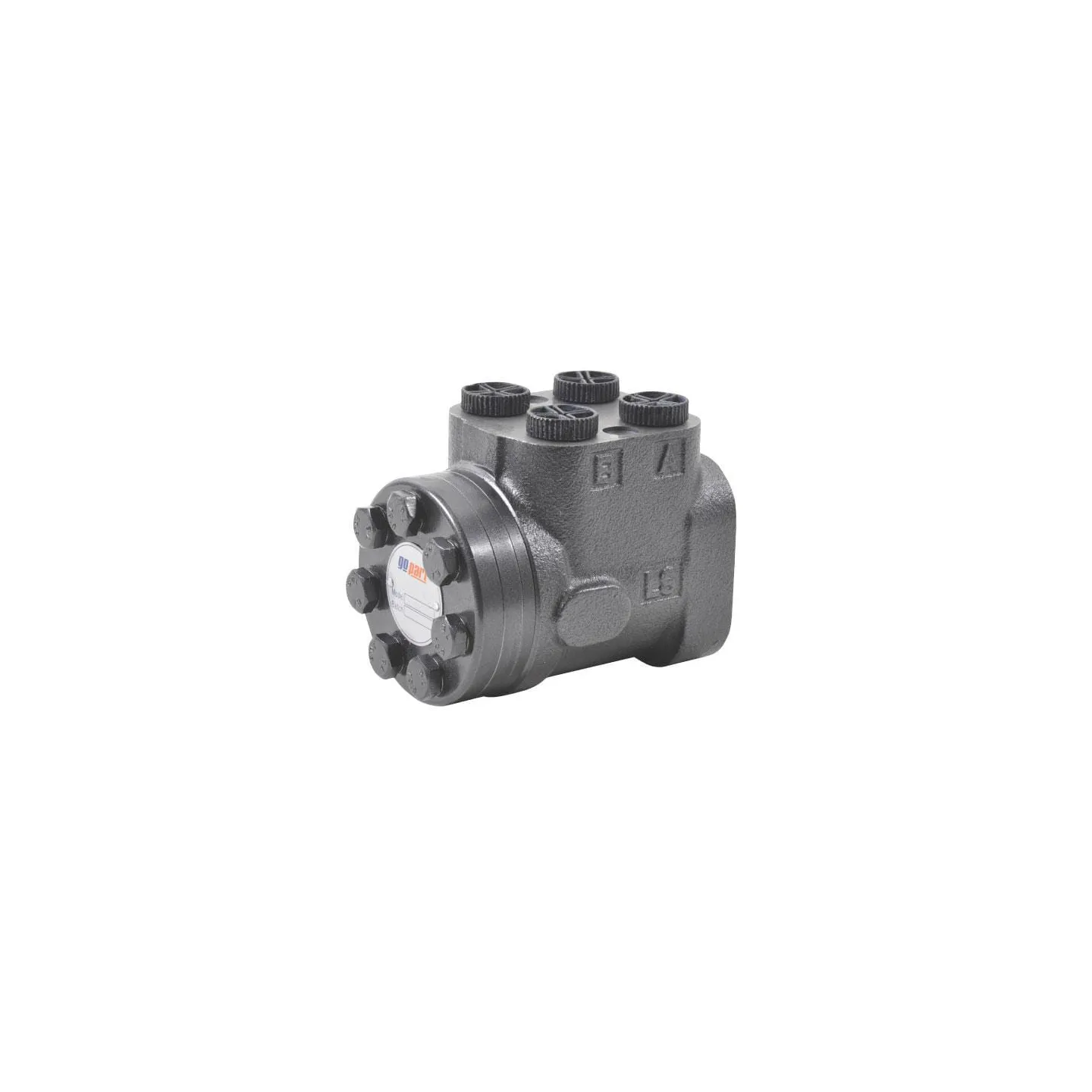

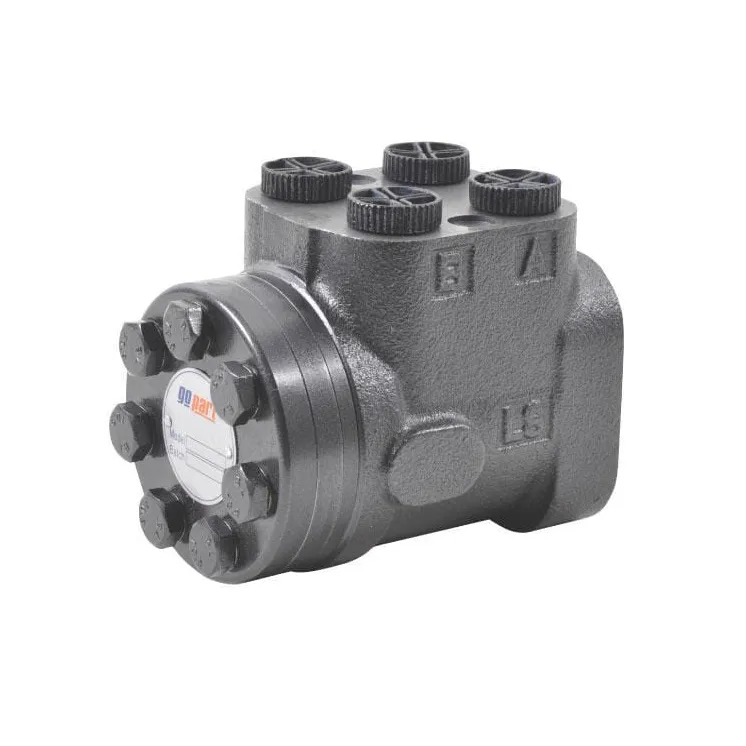

Stūres iekārta 125 OSPC LS SOSPC125LSGP

Name: Stūres iekārta 125 OSPC LS SOSPC125LSGP
Brand: GoPart
SKU: SOSPC125LSGP
Price: 190.25 EUR
Availability: BackOrder

Apmaksas iespējas

190,25 €

AR PVN

Pēc pieprasījuma

Stūres iekārta 125 OSPC LS SOSPC125LSGP gopart

Uz pasūtījumu

ID: 31824

Apraksts

Part number	SOSPC125LSGP
EAN	8719493938562
Unit	Each
Pros	Good value for money Minimal loss of energy High levels of safety and comfort Minimal noise emission Slight reduction in pressure
Product details	Small design Design: open-centre non reaction (SOSPB with integrated valves) "O" stands for "open system" In the neutral position, oil flows from connection "P" (pump) to connection "T" (tank) "N" stands for "non reaction". Forces acting on the wheels from outside are not transmitted to the steering gear.
Danfoss number	150-8297
Displacement	125 cmÂ³/rev
Type	LS
Pressure relief valve	Yes
Pressure relief valve	140 BAR
Shock valve	Yes
Shock valve pressure	200 BAR
Max T connection pressure	25 BAR
Max. working pressure	175 BAR
Min required flow	12.5 l/min
Thread diameter - connection A	1/2 Inch
Thread type - connection A	BSP
Thread type - connection LS	BSP
Thread diameter - connection LS	1/4 Inch
Dimension L1	140 mm
Material	Cast iron
