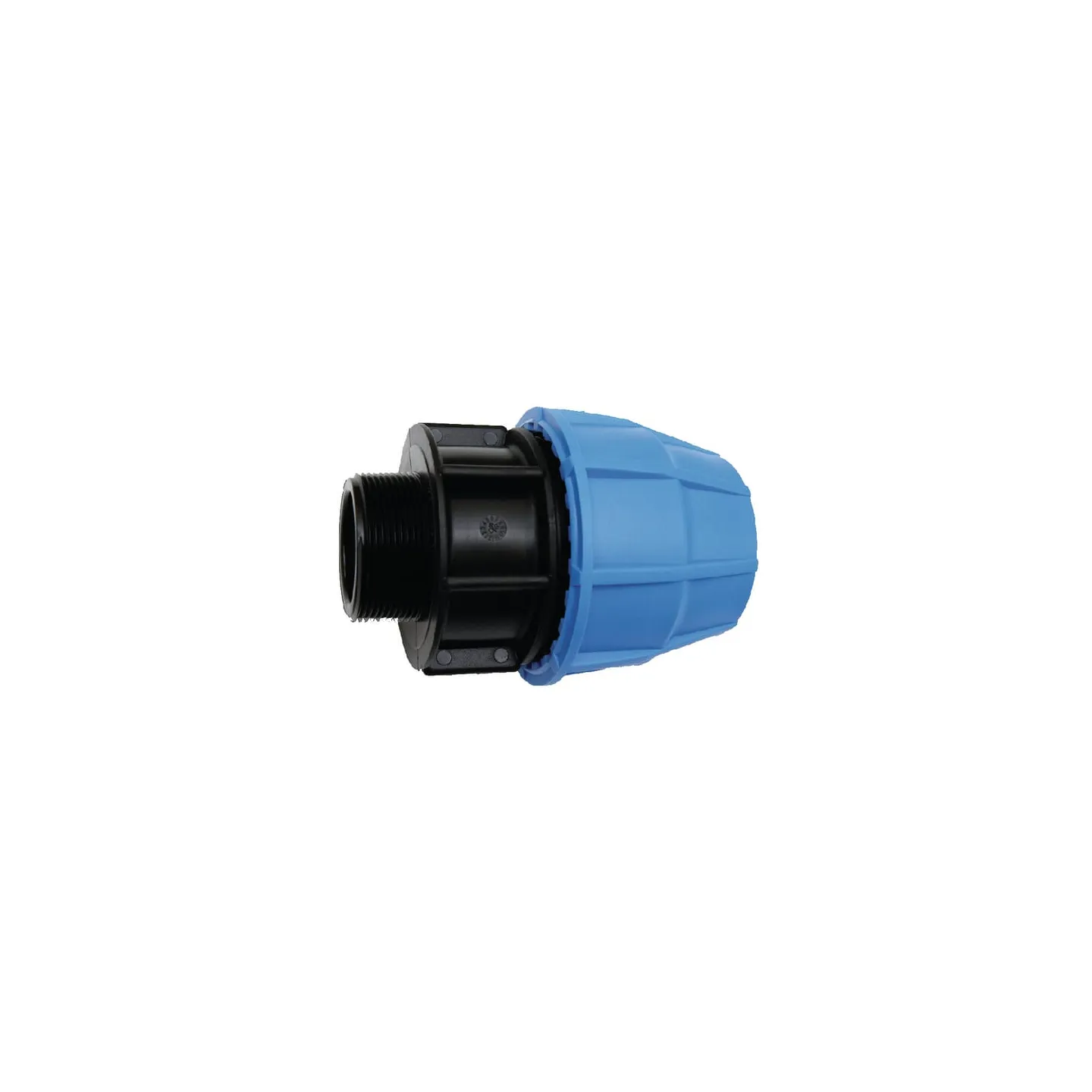

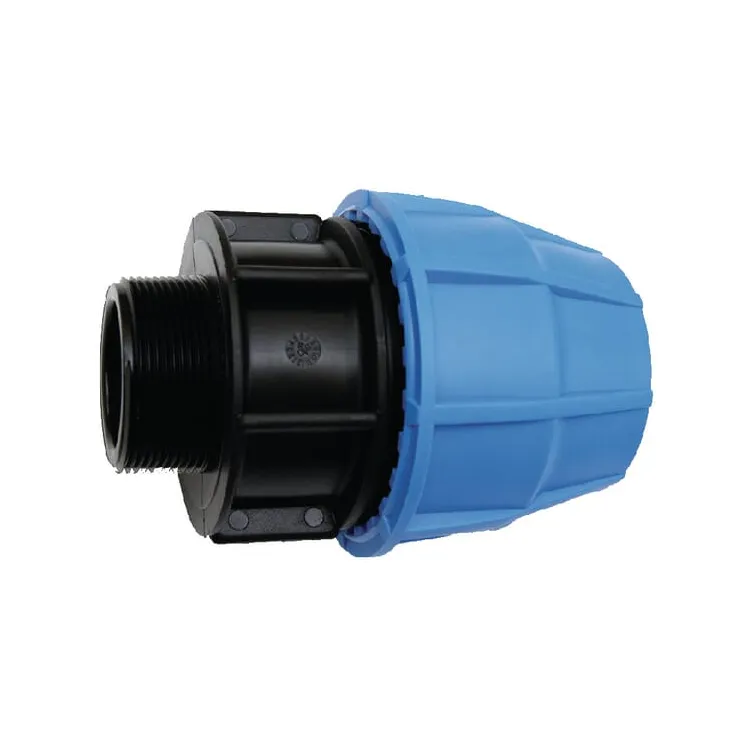

S16 sakabe 75 x 2 1/2 ārējā vītne 654095S

Name: S16 sakabe 75 x 2 1/2 ārējā vītne 654095S
Brand: AGRALV
SKU: 654095S
Price: 17.75 EUR
Availability: InStock

Apmaksas iespējas

17,75 €

AR PVN

4-5 Darba dienas

S16 sakabe 75 x 2 1/2 ārējā vītne 654095S AGRALV

IR NOLIKTAVĀ

ID: 37330

Apraksts

Part number	654095S
EAN
Unit	Each
Long description	Application: Water supply, pipe connection and water treatment plants, sport irrigation and gardening, agriculture and horticulture irrigation. Easy and fast assembly without any particular preparation of the pipe. Materials: Top quality raw materials which makes S16 fittings highly resistant and reliable in time (up to 50 years), suitable for drinking water and environment compatible. Body, nut, thrust ring: virgin polypropylene (PP-B), high mechanical resistant and thermal stability in course of time. Top UV resistant master-batch are used (grade 8-ASTM D2565) for colored nuts. Grip ring: copolymer polyacetal resin (POM), white color. Conical gasket: rubber NBR or EPDM, hardness 70sh, black color Reinforcement ring: only for female threads >=1 Â½ â€œ, stainless steel Working temperature: -10/+45 Â°C Nominal pressure (PN) and product approvals: S16 fittings are designed and suitable to be used at PN16 pressure rate. Fittings are tested and certified by major international approval institutions, such as: KIWA (Netherlands), DVGW (Germany), ACS (France), WRAS (UK), IIP (Italy), ETA (Denmark)
Pros	By tightening the nut â€“ Special Conical gasket â€“ is also moving radially and increasing its compression towards the pipe wall so it balancing pipe defects such as undersize, ovalization and little scratches.
Properties	BSP male thread Clamping connection
Shape	Straight - 2 connection sides
Connection no 1 type	PE Compression fittings
Connection no 1 type - male/female	Female
Connection no 1 diameter	75 mm
Connection 2, type	Thread
Connection 2, type - male/female	Male
Connection 2, thread diameter	2-1/2 Inch
Material	Polypropylene
Colour	Blue Black
Max working pressure	16 BAR
Max working temperature	45 Â°C
Min. working temperature	-15 Â°C
Quality label	WRAS
