Hidrauliskā šļūtene 1/2 CR613 AGRALV
search
  • Hidrauliskā šļūtene 1/2 CR613 AGRALV

Hidrauliskā šļūtene 1/2 CR613

Apmaksas iespējas
swedbank-icon.png citadele-icon.png visa-icon.png mastercard-icon.png paypal.png
11,06 €
AR PVN
Pēc pieprasījuma
Hidrauliskā šļūtene 1/2 CR613 AGRALV
Uz pasūtījumu

37940

  • Zīmols
    AGRALV
  • Norāde
    CR613
  • Stāvoklis
    Jauns
Apmaksa
100% Droši maksājumi
Piegāde
Ātri piegādes risinājumi
Preču atgriešana
30 dienu preces atgriešanas iespēja

Komentāri (0)

Šobrid vēl nav klientu atsauksmju.
Part number
CR613
EAN
Unit
Metre
Qty. Rounding
0.01
Details

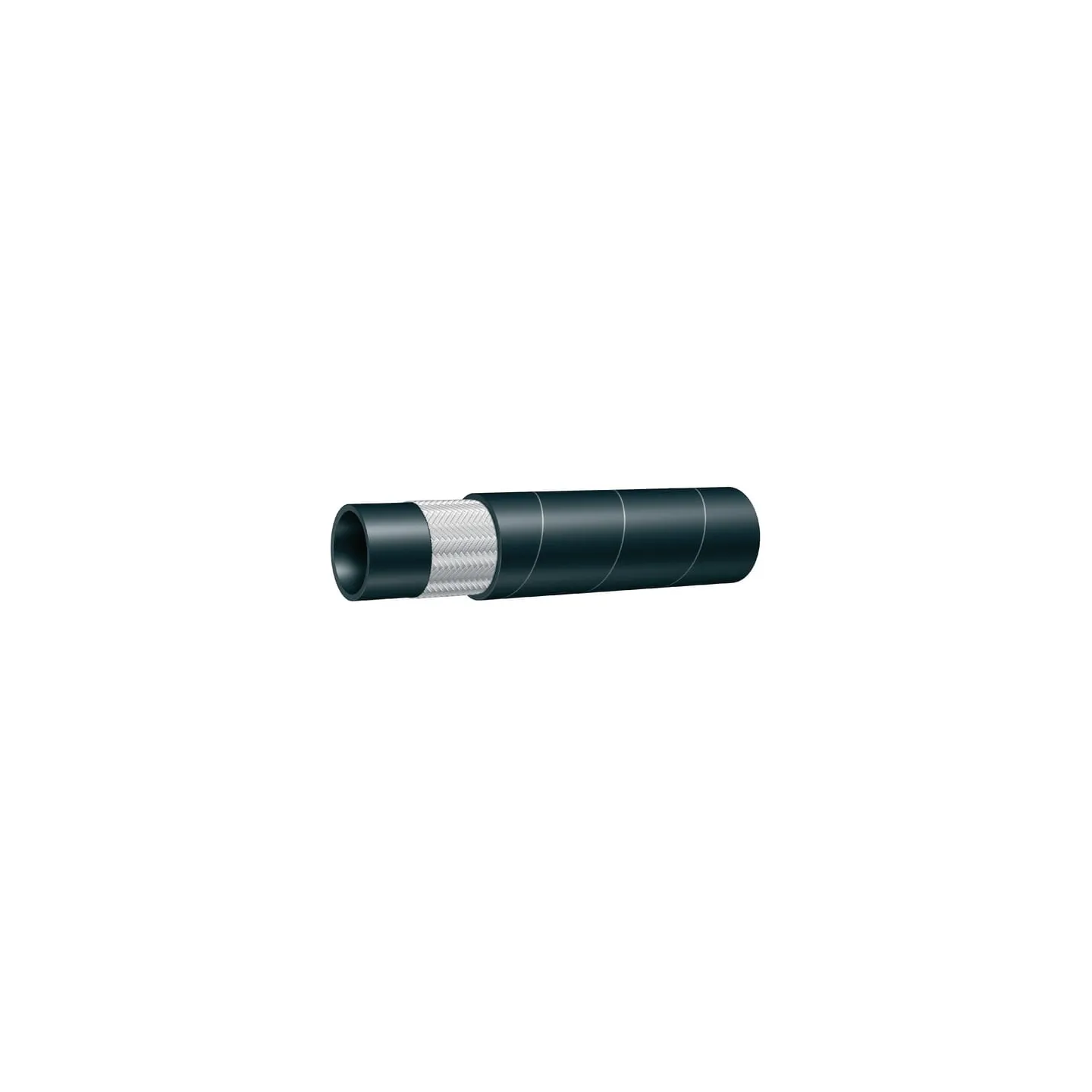

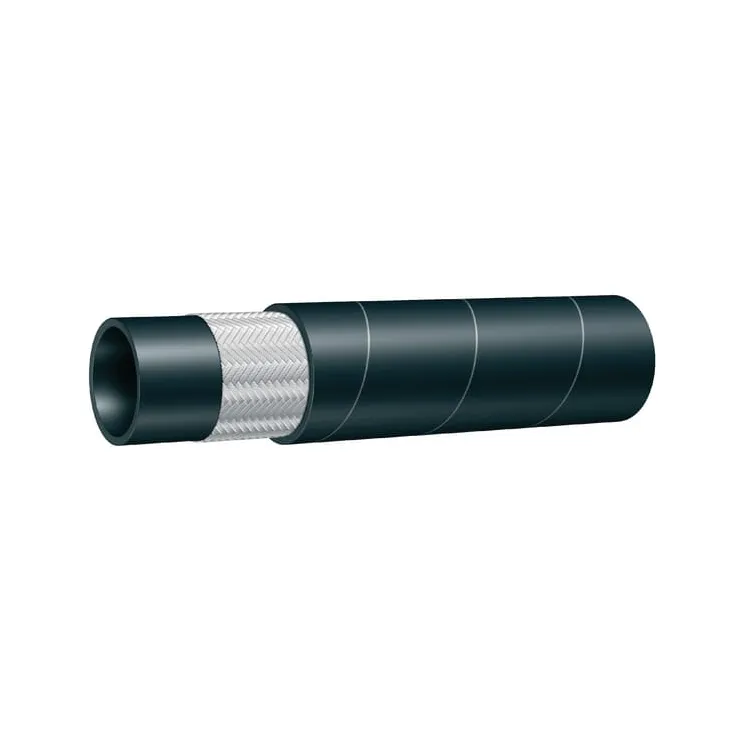

Rubber hydraulic hose with 1 ply of high-strength fabric mesh
Application range
  • Low pressure hydraulic systems
  • Mineral oil-based and glycol-based fluids
  • Lubricants
  • Air
  • Water
Properties
Oil-resistant, smooth outer coating
Technical info
  • Available lengths: by the metre
  • Not suitable for dynamic pressure loads
Benefits
  • Lightweight
  • Flexible hose
Long description
  • Application range:
  • Low pressure hydraulic systems
  • Mineral oil-based and glycol-based fluids
  • Lubricants
  • Air
  • Water
  • Benefits:
  • Lightweight
  • Flexible hose
  • Details:
  • Rubbe
Hose inside diameter
1/2 Inch
Hose inside diameter
12.7 mm
Max working pressure
28 BAR
Material inside
Nitrile rubber [NBR]
Bend radius
100 mm
Length
50 m
Weight
0.26 kg/m
Type
Hydraulic high pressure hose
DN
12 mm
Hose outside diameter
19.8 mm
Wall thickness
3.55 mm
Burst pressure
110 BAR
Medium
Hydraulic oil
Max working temperature
100 °C
Min working temperature
-40 °C
Material outside
  • Styrene-butadiene rubber (SBR)
  • Chloroprene rubber [CR]
Reinforcement type
Braid
Reinforcement number of plies
2
Reinforcement material
Syntal
Number of plies
1
Norm
SAE 100 R6
EN standard
854 R6
Additional info
*Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver.
