| Part number | CR625 | |
|---|---|---|
| EAN | ||
| Unit | Metre | |
| Qty. Rounding | 0.01 | |

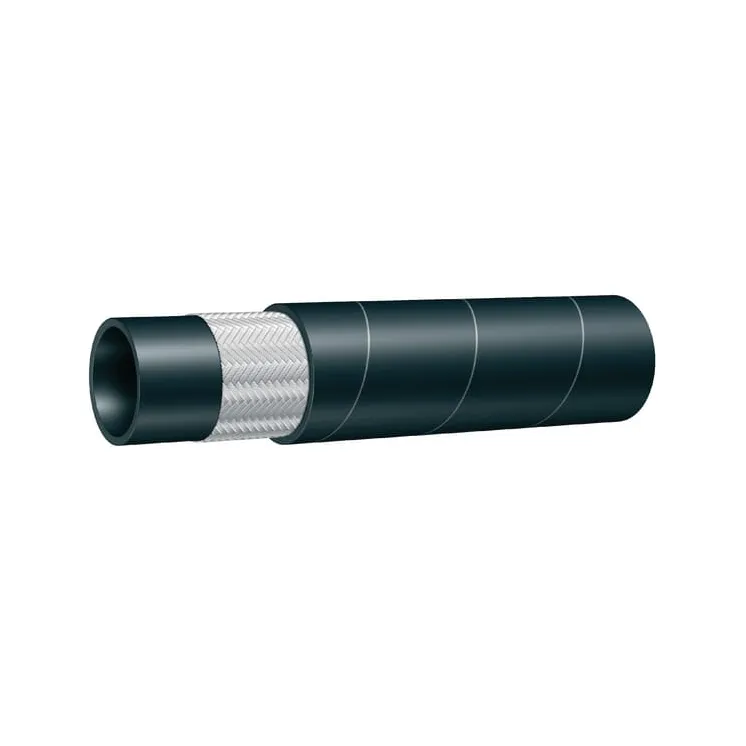

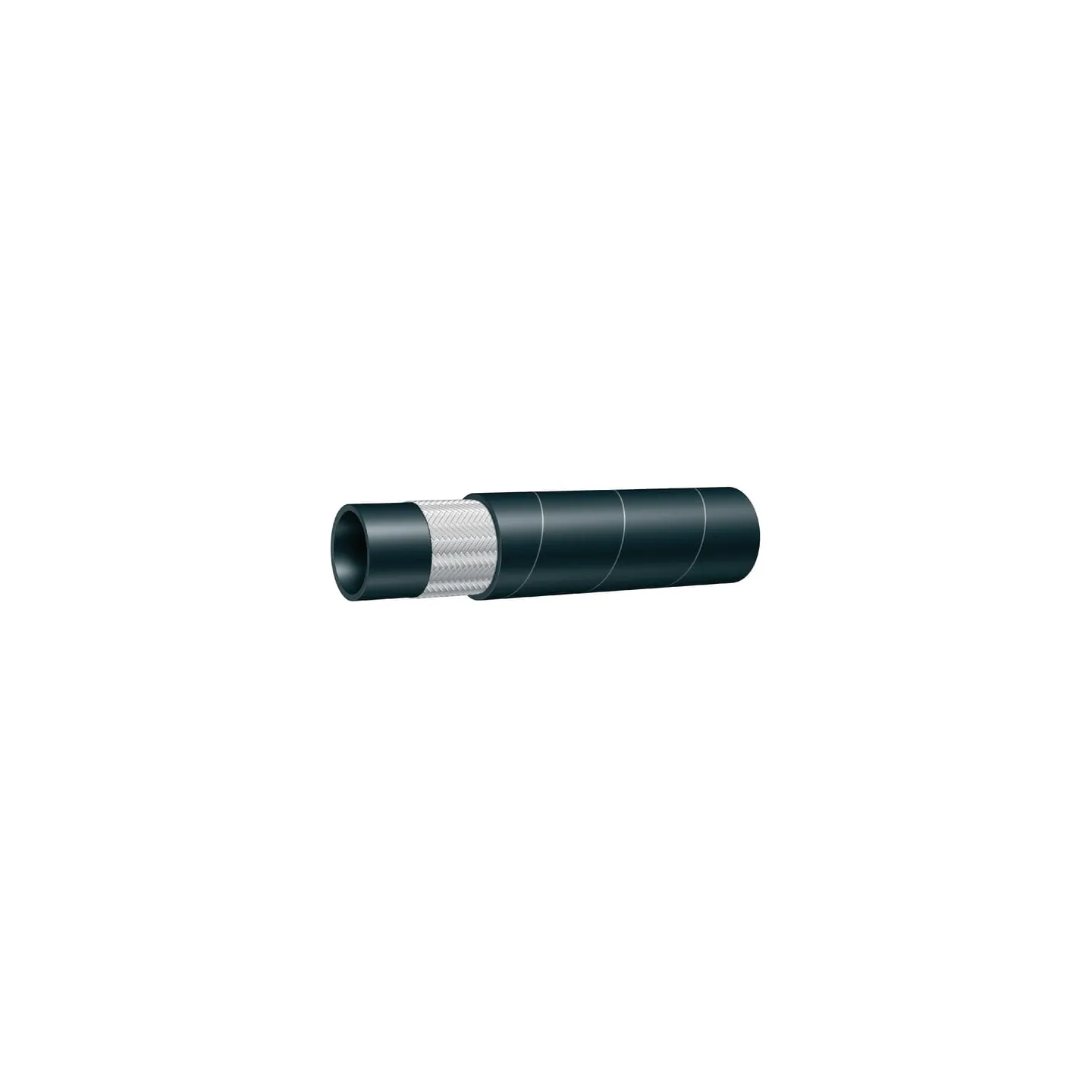

| Details | Rubber hydraulic hose with 1 ply of high-strength fabric mesh | |
| Application range |
| |
| Properties | Oil-resistant, smooth outer coating | |
| Technical info |
| |
| Benefits |
| |
| Long description |
| |
| Hose inside diameter | 1 Inch | |
| Hose inside diameter | 25.4 mm | |
| Max working pressure | 20 BAR | |
| Material inside | Nitrile rubber [NBR] | |
| Bend radius | 175 mm | |
| Length | 50 m | |
| Weight | 0.65 kg/m | |
| Type | Hydraulic high pressure hose | |
| DN | 25 mm | |
| Hose outside diameter | 35 mm | |
| Wall thickness | 4.8 mm | |
| Burst pressure | 80 BAR | |
| Medium | Hydraulic oil | |
| Max working temperature | 100 °C | |
| Min working temperature | -40 °C | |
| Material outside |
| |
| Reinforcement type | Braid | |
| Reinforcement number of plies | 2 | |
| Reinforcement material | Syntal | |
| Number of plies | 1 | |
| Norm | SAE 100 R6 | |
| EN standard | 854 R6 | |
| Additional info | *Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver. |
