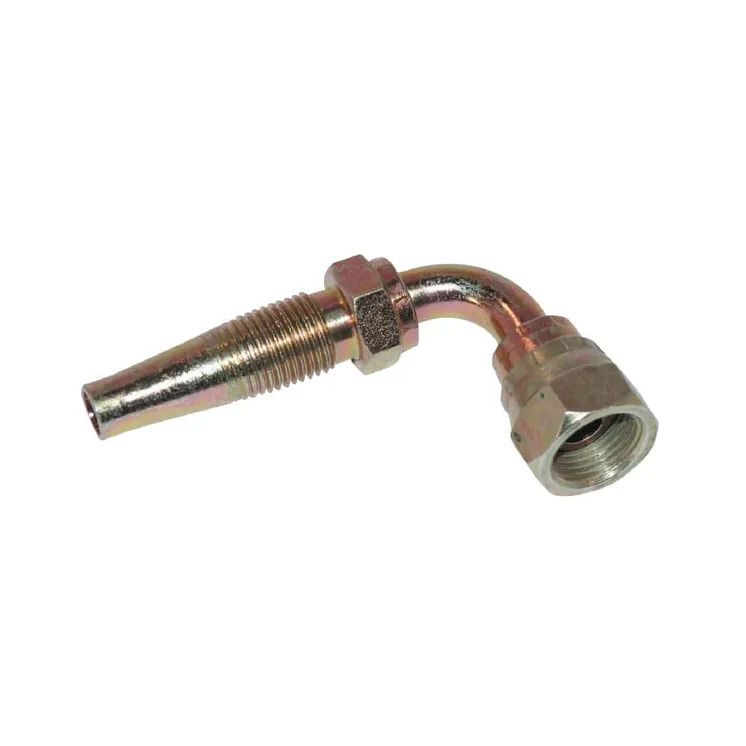

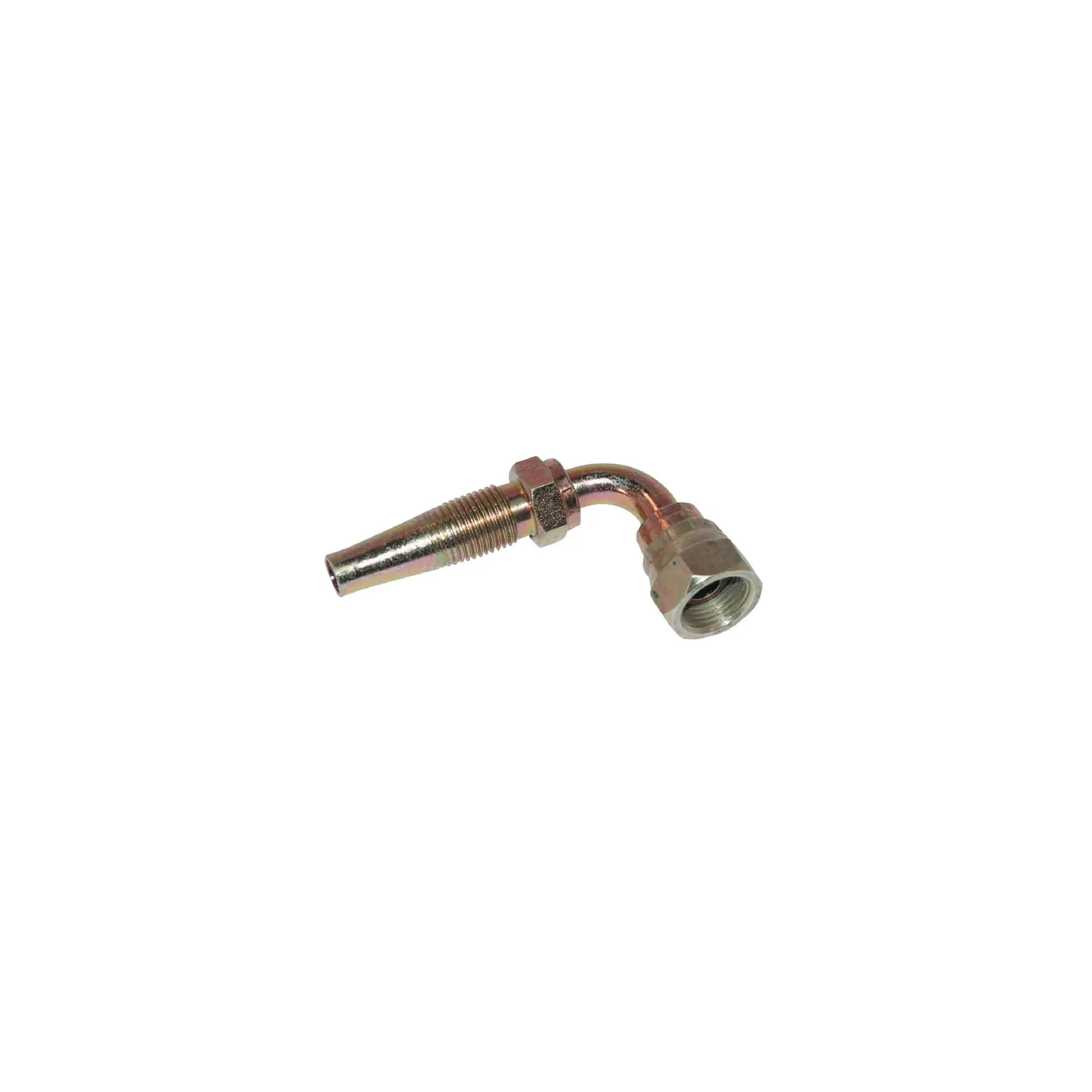

Ievietojiet DN06-1/4 BSP-90Â° F6490

Name: Ievietojiet DN06-1/4 BSP-90Â° F6490
Brand: AGRALV
SKU: F6490
Price: 5.46 EUR
Availability: InStock

Apmaksas iespējas

5,46 €

AR PVN

4-5 Darba dienas

Ievietojiet DN06-1/4 BSP-90Â° F6490 AGRALV

IR NOLIKTAVĀ

ID: 38880

Apraksts

Part number	F6490
EAN
Unit	Each
Product details	Metal on metal seal- Screw pipe nozzle allows a hose assembly to be assembled without the use of a hose press
Surface treatment	Zinc-plated White passivated
Angle	90 Â°
Cone angle	60 Â°
Connection 2, diameter	1/4 Inch
Connection 2, diameter	6 mm
LConnection 2, length	5.3 mm
Connection 2, type	Hose end
Connection no 1 center to end distance	34.9 mm
Connection centre to insert distance	23.5 mm
Connection no 1 thread diameter	1/4 Inch
Connection no 1 thread type	BSP
Connection no 1 type code	DKR
Connection no 1 type - male/female	Female
Connection no 1 type	Thread
HConnection no 1 wrench size	19.0 mm
Height	5.3 mm
ISO standard	228
CInside diameter	4.3 mm
Material	Steel
Shape	Elbow - 2 connection sides
