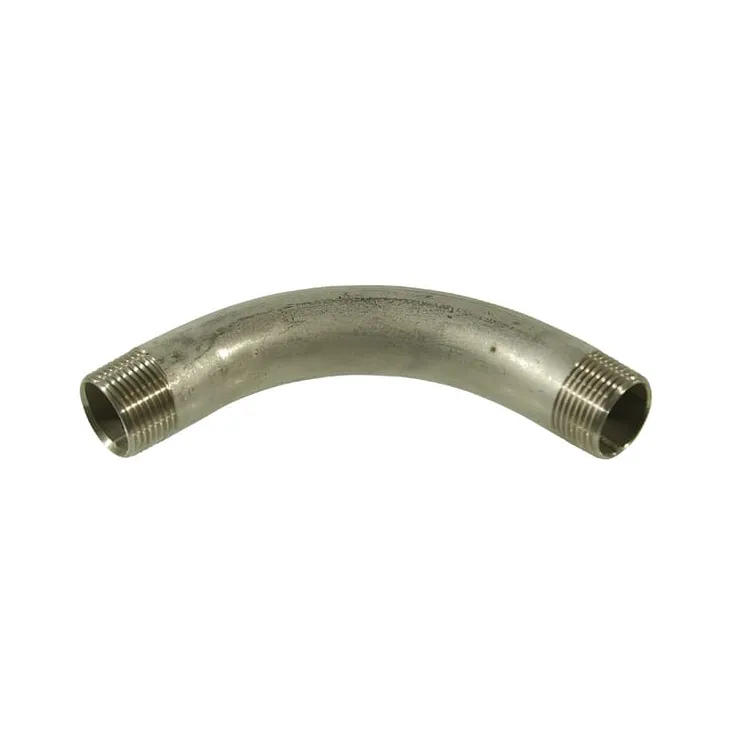

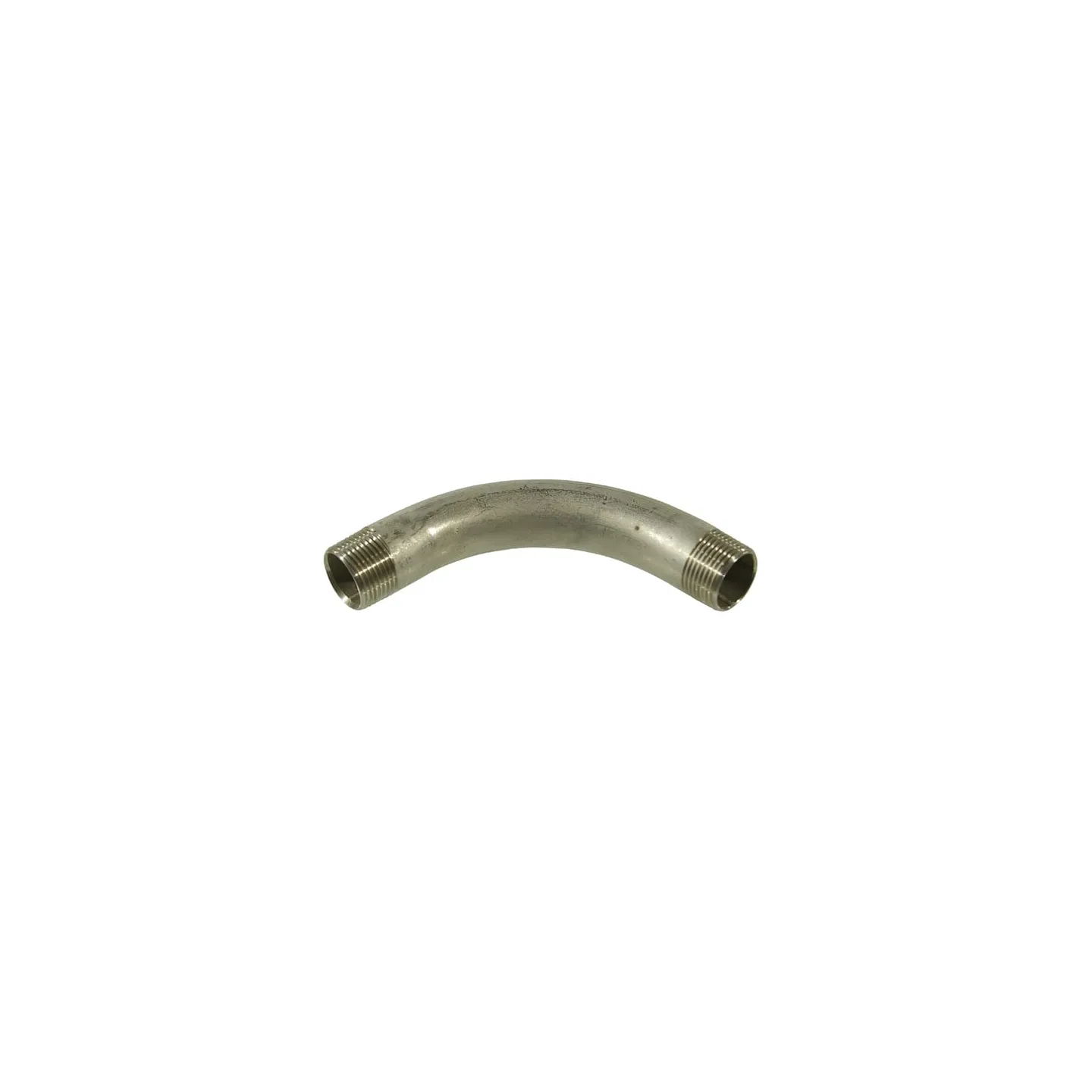

Elkonis 90° S.S. 2xM 1/4 FG314RVS

Name: Elkonis 90° S.S. 2xM 1/4 FG314RVS
Brand: AGRALV
SKU: FG314RVS
Price: 6.56 EUR
Availability: InStock

Apmaksas iespējas

6,56 €

AR PVN

4-5 Darba dienas

Elkonis 90° S.S. 2xM 1/4 FG314RVS AGRALV

IR NOLIKTAVĀ

ID: 38931

Apraksts

Part number	FG314RVS
EAN
Unit	Each
Shape	Elbow - 2 connection sides
Connection no 1 type	Thread
Connection no 1 type - male/female	Male
Connection no 1 thread diameter	1/4 Inch
Connection no 1 thread type	G
Connection 2, type	Thread
Connection 2, type - male/female	Male
Connection 2, thread diameter	1/4 Inch
Connection 2, thread type	G
Pipe diameter	8 mm
Material - SAE code	316
Length	64 mm
Angle	90 Â°
Max working pressure	16 BAR
Coupling number	3
Radius	41 mm
