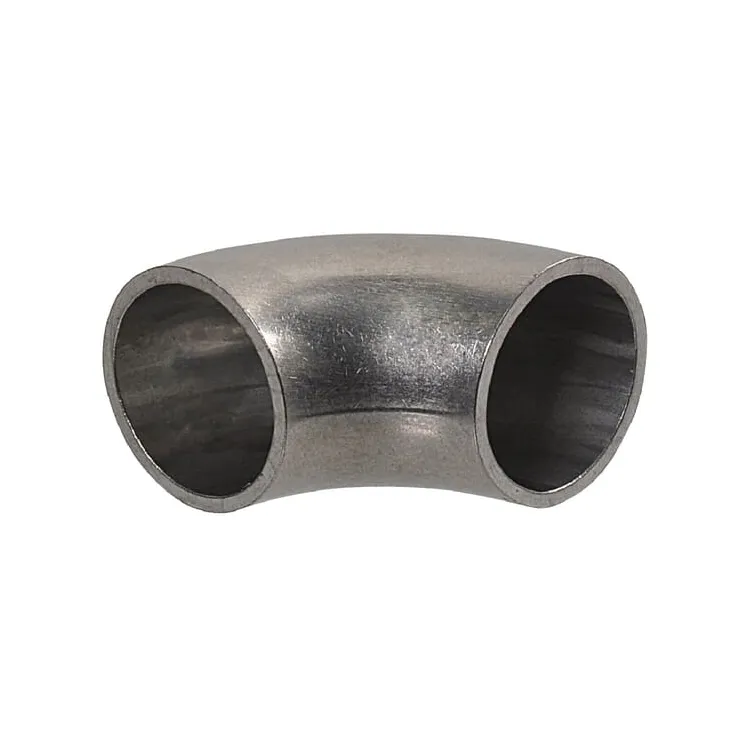

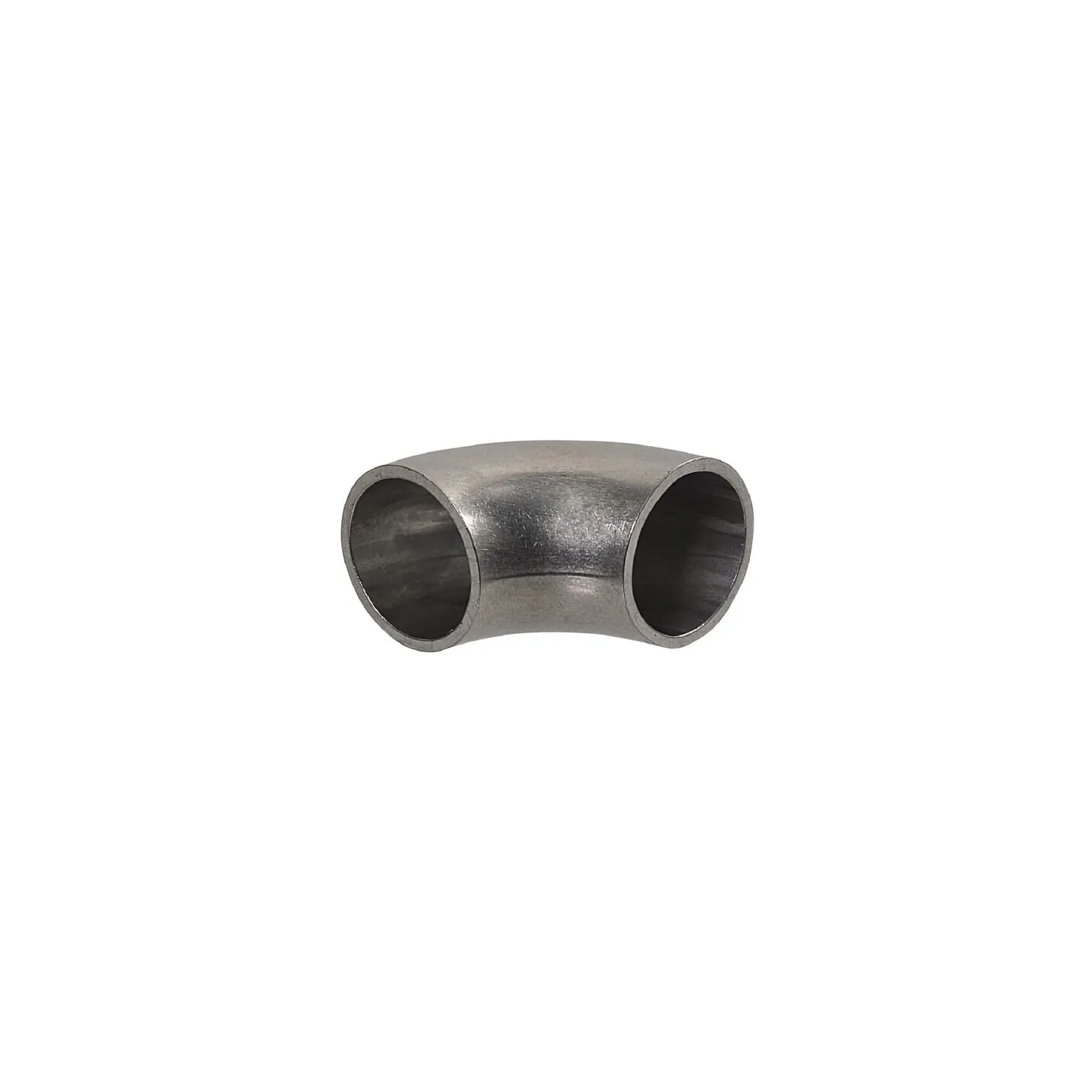

Uzmetināms līkums 90° V4A 1 1/4 FG900114RVS

Name: Uzmetināms līkums 90° V4A 1 1/4 FG900114RVS
Brand: AGRALV
SKU: FG900114RVS
Price: 9.37 EUR
Availability: InStock

Apmaksas iespējas

9,37 €

AR PVN

4-5 Darba dienas

Uzmetināms līkums 90° V4A 1 1/4 FG900114RVS AGRALV

IR NOLIKTAVĀ

ID: 39110

Apraksts

Part number	FG900114RVS
EAN
Unit	Each
Shape	Elbow - 2 connection sides
Connection no 1 type	Welded
Connection no 1 type - male/female	Male
Connection no 1 diameter	42.4 mm
Connection no 1 thread diameter	1-1/4 Inch
Connection 2, type	Welded
Connection 2, type - male/female	Male
Connection 2, diameter	42.4 mm
Connection 2, thread diameter	1-1/4 Inch
Material - SAE code	304
BInside diameter	32 mm
COutside diameter	42.4 mm
Angle	90 Â°
Max working pressure	16 BAR
DWall thickness	2 mm
Coupling number	900
ARadius	48 mm
