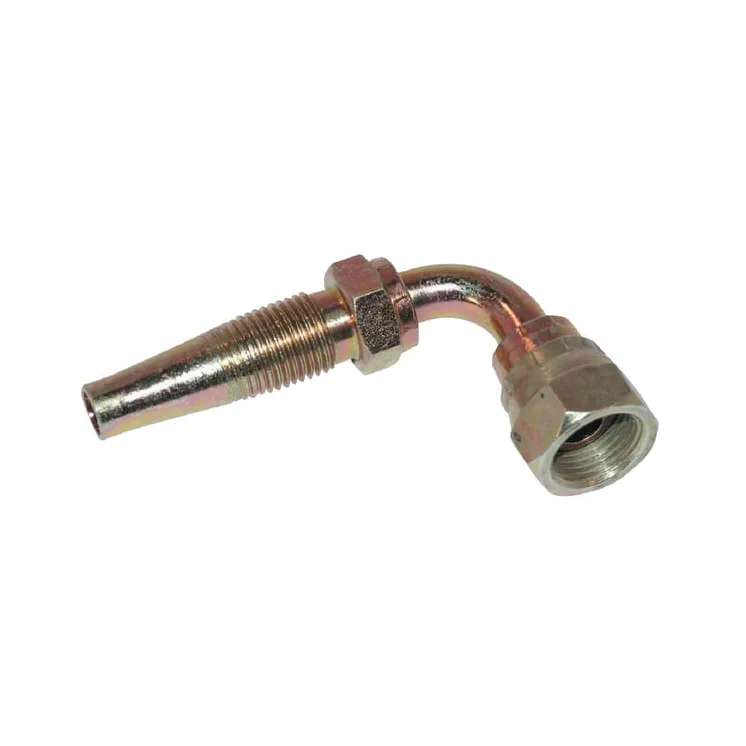

Ievietojiet DN10-3/8 BSP-90Â° F10690

Name: Ievietojiet DN10-3/8 BSP-90Â° F10690
Brand: AGRALV
SKU: F10690
Price: 6.55 EUR
Availability: InStock

Apmaksas iespējas

6,55 €

AR PVN

4-5 Darba dienas

Ievietojiet DN10-3/8 BSP-90Â° F10690 AGRALV

IR NOLIKTAVĀ

ID: 39166

Apraksts

Part number	F10690
EAN
Unit	Each
Product details	Metal on metal seal- Screw pipe nozzle allows a hose assembly to be assembled without the use of a hose press
Surface treatment	Zinc-plated White passivated
Angle	90 Â°
Cone angle	60 Â°
Connection 2, diameter	3/8 Inch
Connection 2, diameter	10 mm
LConnection 2, length	7.2 mm
Connection 2, type	Hose end
Connection no 1 center to end distance	37.9 mm
Connection centre to insert distance	30 mm
Connection no 1 thread diameter	3/8 Inch
Connection no 1 thread type	BSP
Connection no 1 type code	DKR
Connection no 1 type - male/female	Female
Connection no 1 type	Thread
HConnection no 1 wrench size	22.0 mm
Height	7.2 mm
ISO standard	228
CInside diameter	7.6 mm
Material	Steel
Shape	Elbow - 2 connection sides
