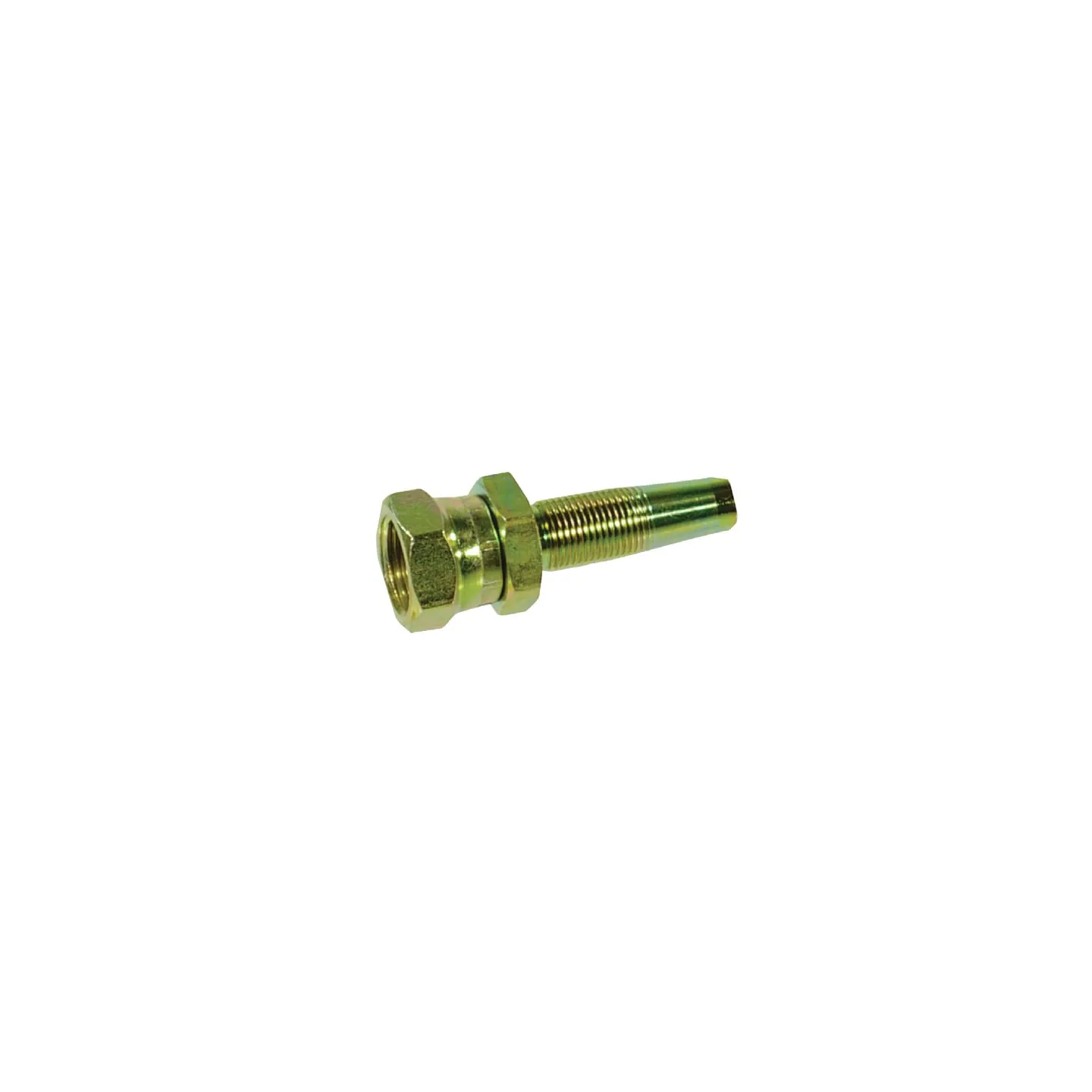

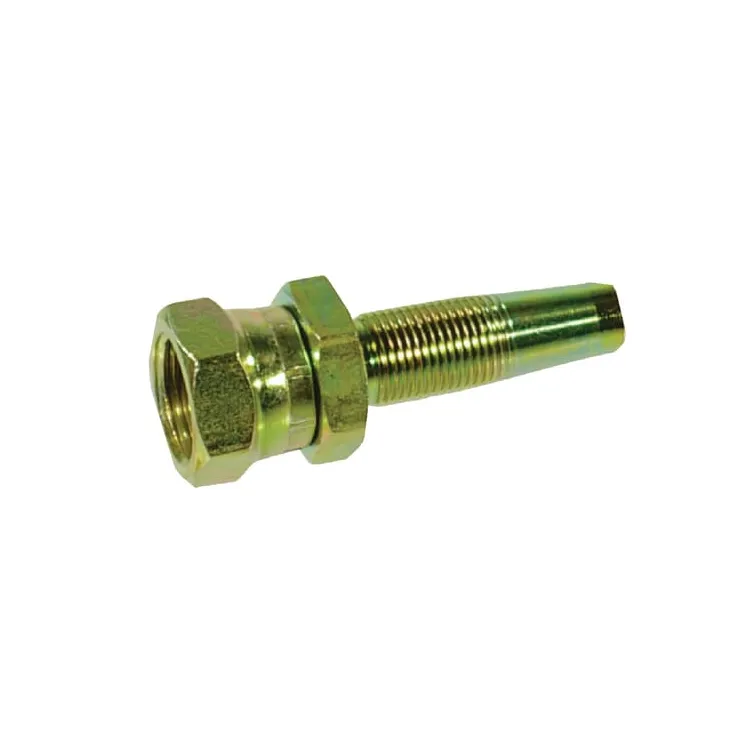

Ievietojiet DN13-1/2 BSP FZ138

Name: Ievietojiet DN13-1/2 BSP FZ138
Brand: AGRALV
SKU: FZ138
Price: 6.35 EUR
Availability: InStock

Apmaksas iespējas

6,35 €

AR PVN

4-5 Darba dienas

Ievietojiet DN13-1/2 BSP FZ138 AGRALV

IR NOLIKTAVĀ

ID: 39356

Apraksts

Part number	FZ138
EAN
Unit	Each
Product details	Metal on metal seal- Screw pipe nozzle allows a hose assembly to be assembled without the use of a hose press
Long description	Properties: Metal on metal seal Technical information: Available in stainless steel on request Using a swage coupling, it is possible to create a hose connection without using a hose press
Surface treatment	Zinc-plated White passivated
Angle	180 Â°
Cone angle	60 Â°
Connection 2, diameter	13 mm
LConnection 2, length	8.6 mm
Connection 2, type	Hose end
Connection no 1 diameter	1/2 Inch
Connection no 1 length	41.9 mm
Connection no 1 thread diameter	1/2 Inch
Connection no 1 thread type	BSP
Connection no 1 type code	DKR
Connection no 1 type - male/female	Female
Connection no 1 type	Cone
HConnection no 1 wrench size	27.0 mm
Height	8.6 mm
ISO standard	228
CInside diameter	9.9 mm
Material	Steel
Shape	Straight - 2 connection sides
