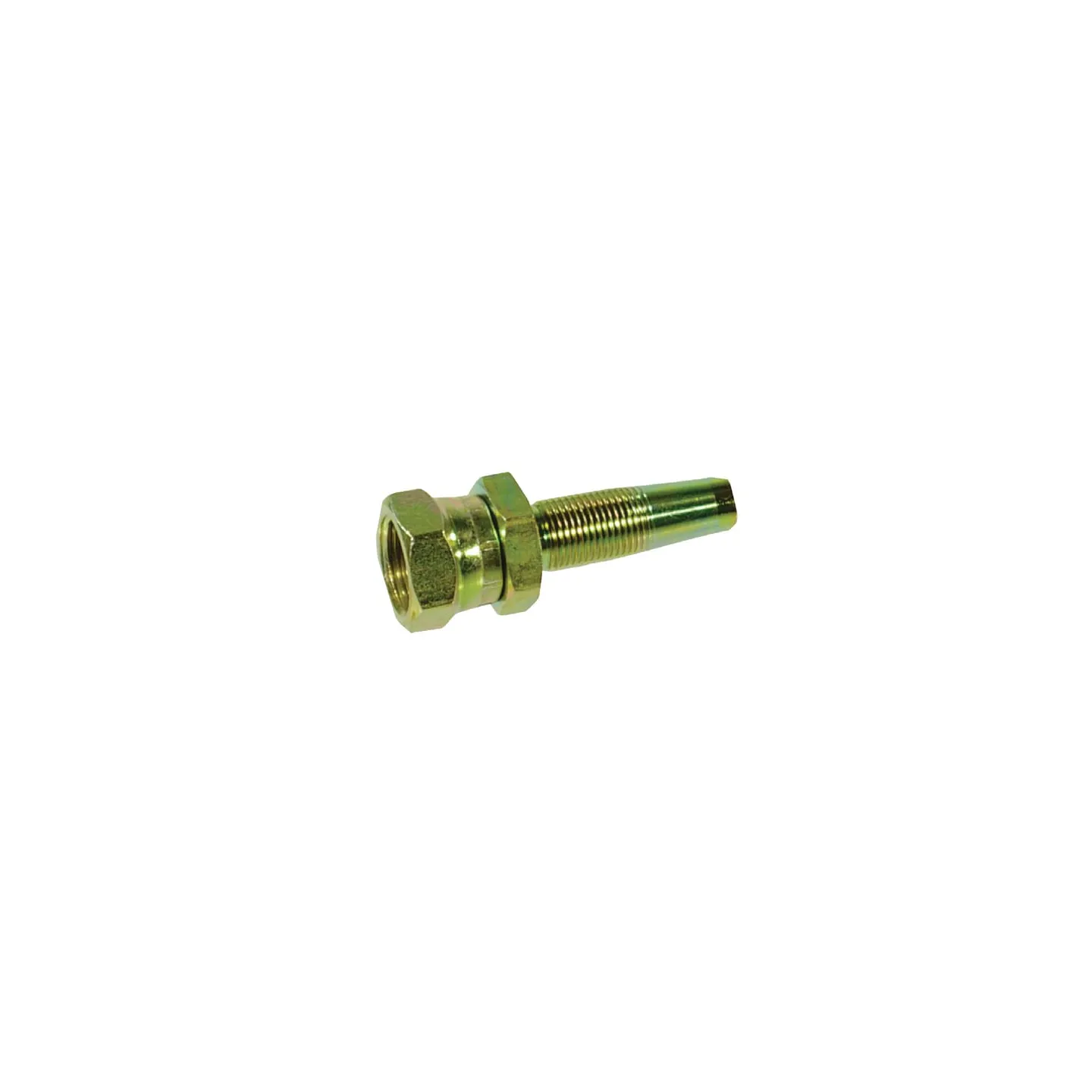

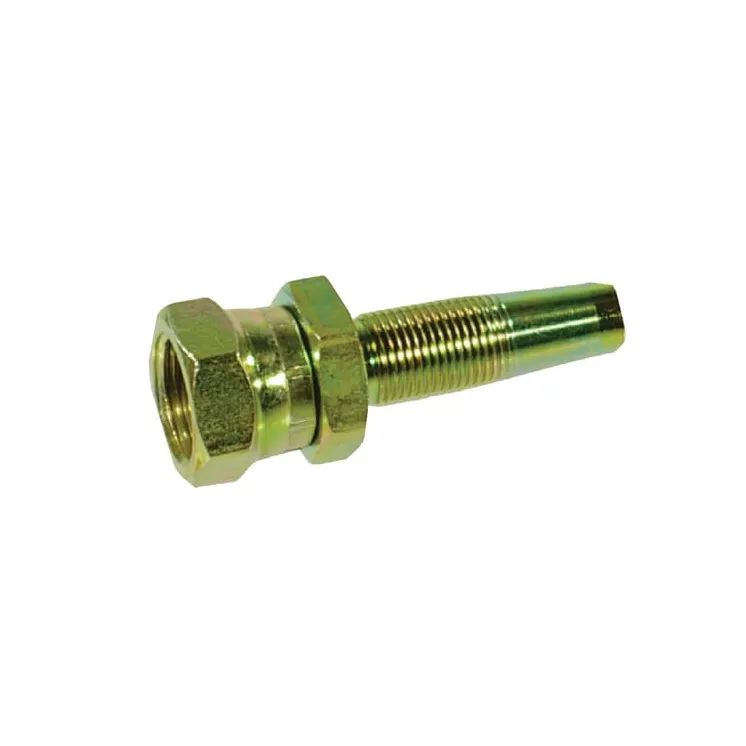

Ievietojiet DN10-3/8 BSP FZ106

Name: Ievietojiet DN10-3/8 BSP FZ106
Brand: AGRALV
SKU: FZ106
Price: 4.46 EUR
Availability: InStock

Apmaksas iespējas

4,46 €

AR PVN

4-5 Darba dienas

Ievietojiet DN10-3/8 BSP FZ106 AGRALV

IR NOLIKTAVĀ

ID: 39368

Apraksts

Part number	FZ106
EAN
Unit	Each
Product details	Metal on metal seal- Screw pipe nozzle allows a hose assembly to be assembled without the use of a hose press
Surface treatment	Zinc-plated White passivated
Angle	180 Â°
Cone angle	60 Â°
Connection 2, diameter	10 mm
Connection 2, type	Hose end
Connection no 1 diameter	3/8 Inch
Connection no 1 length	31 mm
Connection no 1 thread diameter	3/8 Inch
Connection no 1 thread type	BSP
Connection no 1 type code	DKR
Connection no 1 type - male/female	Female
Connection no 1 type	Cone
HConnection no 1 wrench size	22.0 mm
Height	7.2 mm
ISO standard	228
CInside diameter	7.6 mm
Material	Steel
Shape	Straight - 2 connection sides
