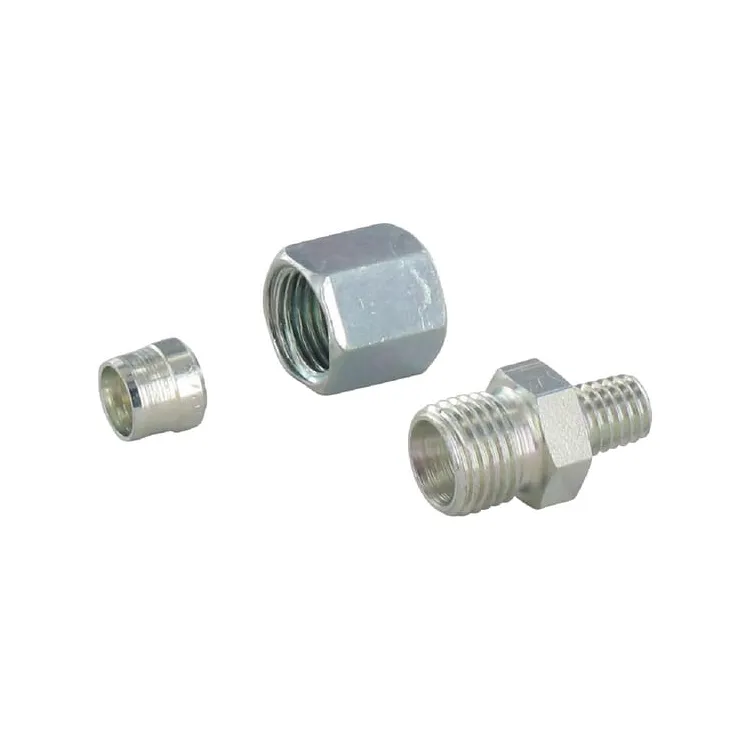

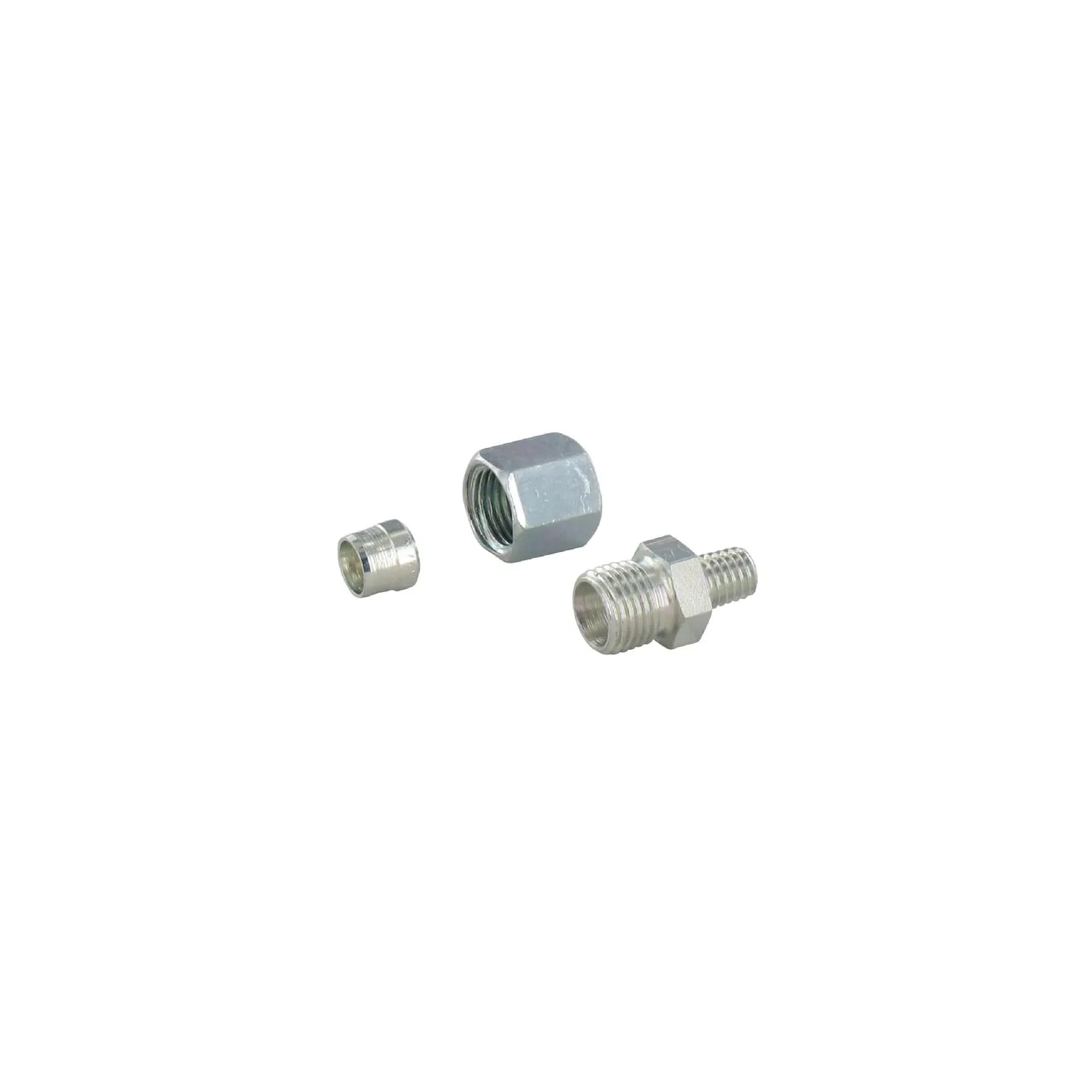

Sakabe 6LL M6 GEV6LLMK6

Name: Sakabe 6LL M6 GEV6LLMK6
Brand: AGRALV
SKU: GEV6LLMK6
Price: 2.36 EUR
Availability: InStock

Apmaksas iespējas

2,36 €

AR PVN

4-5 Darba dienas

Sakabe 6LL M6 GEV6LLMK6 AGRALV

IR NOLIKTAVĀ

ID: 39385

Apraksts

Part number	GEV6LLMK6
EAN
Unit	Each
Pros	2S cutting ring
Product details	2S cutting ring Optimal cutting ring connection and functionality Multiple corrosion resistance
Long description	Properties: Conical screw-in thread Cutting ring connection
DIN standard	2353 2401
Surface treatment	Zinc Nickel
Body height	11 mm
L2Connection 2, centre to end distance	9 mm
Connection 2, thread pitch	1.00 mm
Connection 2, thread diameter	M6
Connection 2, thread type	Metric
Connection 2, type	Thread taper
Connection 2, type - male/female	Male
L1Connection no 1 center to end distance	20.5 mm
Connection no 1 diameter	6 mm
KConnection no 1 thread length	8 mm
Connection no 1 type - male/female	Male
Connection no 1 type	Cutting ring
S1Connection no 1 wrench size	12.0 mm
Max working pressure	100 BAR
Pipe diameter	6 mm
Series	6LL
Shape	Straight - 2 connection sides
