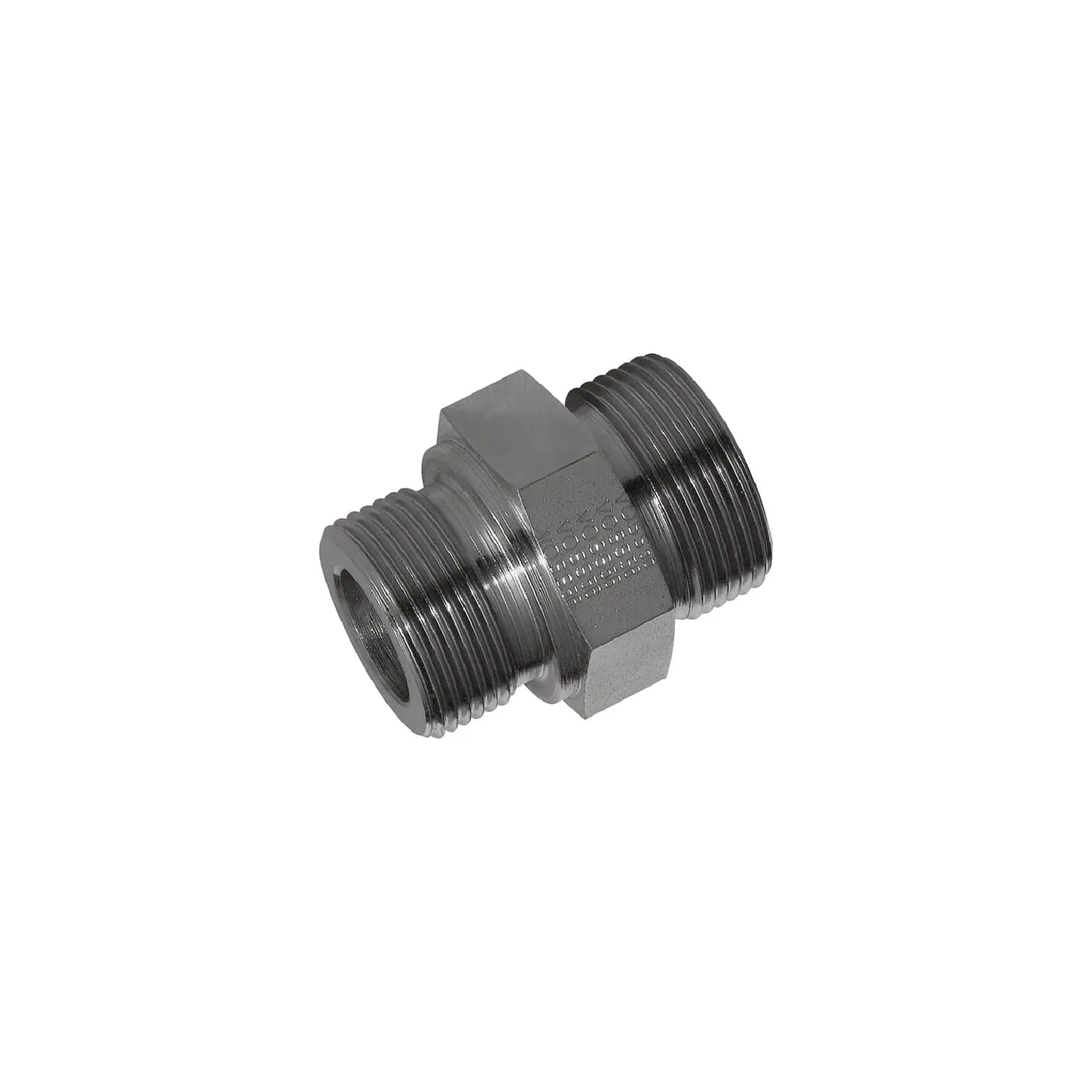

| Part number | GES10LR38 | |
|---|---|---|
| EAN | ||
| Unit | Each | |
| Pros | Reduced risk of leakage | |
| Product details |
| |
| DIN standard |
| |
| Surface treatment |
| |
| L1Connection 2, centre to end distance | 12.5 mm | |
| Connection 2, thread diameter | 3/8 Inch | |
| Connection 2, thread type | BSP | |
| Connection 2, type | Thread | |
| Connection 2, type - male/female | Male | |
| S2Connection 2, wrench size | 19.0 mm | |
| L2Connection no 1 center to end distance | 27.5 mm | |
| Connection no 1 diameter | 10 mm | |
| d2Connection no 1 thread pitch | 1.50 mm | |
| d2Connection no 1 thread diameter | M16 | |
| KConnection no 1 thread length | 12 mm | |
| Connection no 1 thread type | Metric | |
| Connection no 1 type - male/female | Female | |
| Connection no 1 type | Cutting ring | |
| S1Connection no 1 wrench size | 22.0 mm | |
| Connection no 1 hex size | 22 mm | |
| ISO standard | 228 | |
| Inside diameter | 7 mm | |
| Length | 31.5 mm | |
| Max. tightening torque | 95 N·m | |
| Max working pressure | 400 BAR | |
| Pipe diameter | 10 mm | |
| Series | L | |
| Shape | Straight - 2 connection sides |
