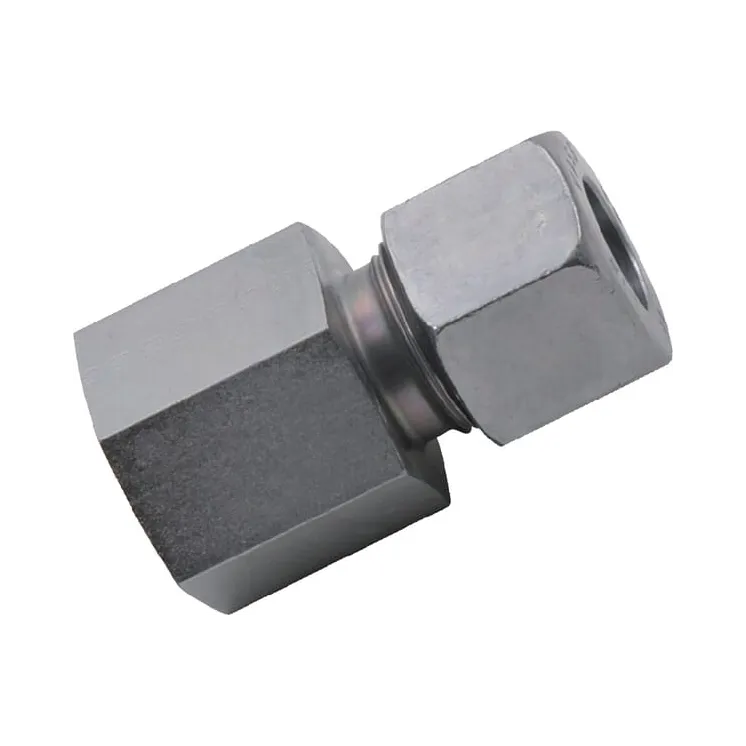

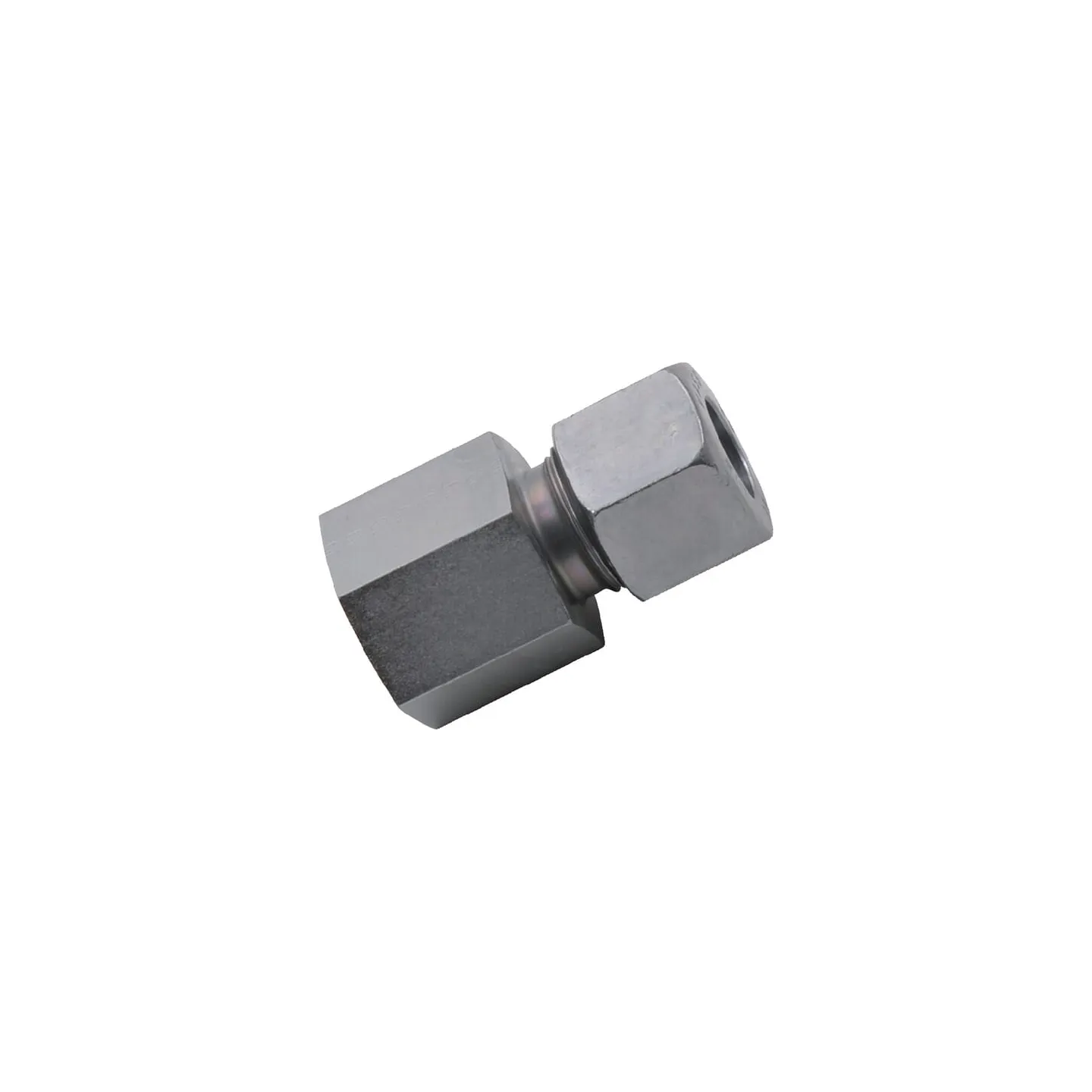

Sakabe 10L R3/8 GAV10LR38

Name: Sakabe 10L R3/8 GAV10LR38
Brand: AGRALV
SKU: GAV10LR38
Price: 10.85 EUR
Availability: InStock

Apmaksas iespējas

10,85 €

AR PVN

4-5 Darba dienas

Sakabe 10L R3/8 GAV10LR38 AGRALV

IR NOLIKTAVĀ

ID: 39440

Apraksts

Part number	GAV10LR38
EAN
Unit	Each
Pros	2S cutting ring
Product details	2S cutting ring Optimal cutting ring connection and functionality Multiple corrosion resistance
DIN standard	2353 228 3852 2401
Surface treatment	Zinc Nickel
Connection 2, centre to end distance	26 mm
Connection 2, thread diameter	3/8 Inch
Connection 2, thread type	BSP
Connection 2, type	Thread
Connection 2, type - male/female	Female
S2Connection 2, wrench size	19.0 mm
Connection no 1 center to end distance	41 mm
Connection no 1 diameter	10 mm
Connection no 1 thread pitch	1.50 mm
Connection no 1 thread diameter	M16
Connection no 1 thread type	Metric
Connection no 1 type - male/female	Male
Connection no 1 type	Cutting ring
S1Connection no 1 wrench size	24.0 mm
ISO standard	228
Max working pressure	250 BAR
Pipe diameter	10 mm
Series	10L
Shape	Straight - 2 connection sides
