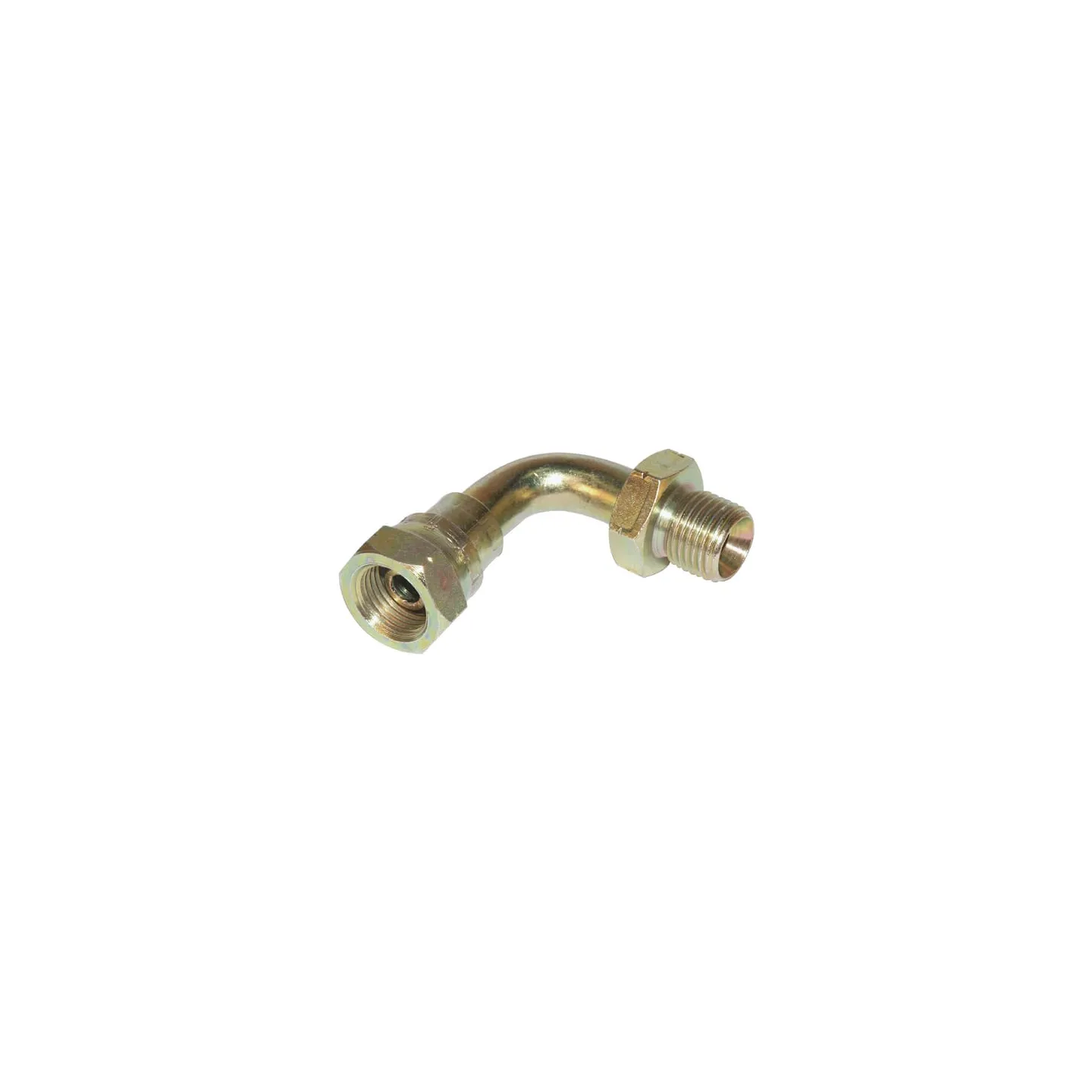

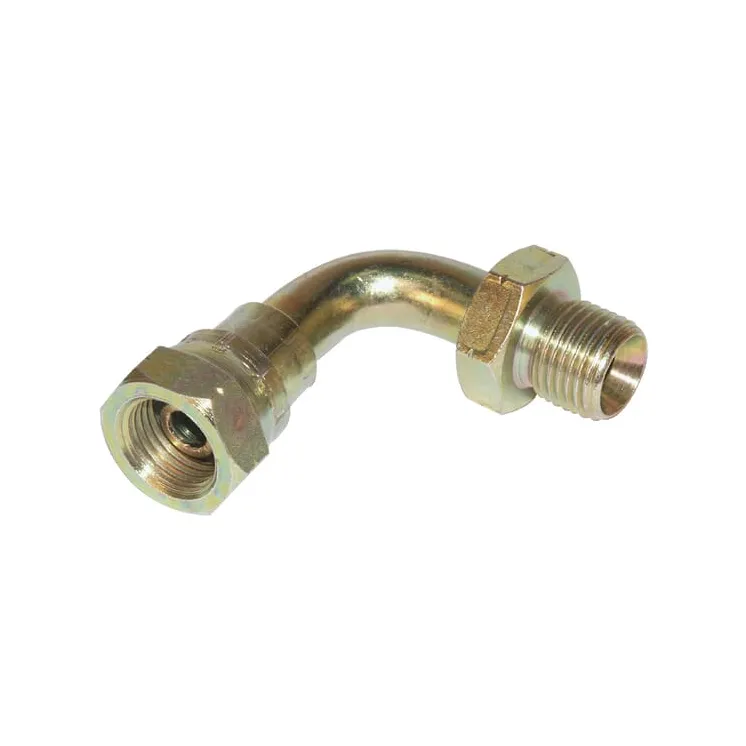

Slaucīts elkonis M/F M14x1,5 MF90M14B MF9014B

Name: Slaucīts elkonis M/F M14x1,5 MF90M14B MF9014B
Brand: AGRALV
SKU: MF90M14B
Price: 10.85 EUR
Availability: InStock

Apmaksas iespējas

10,85 €

AR PVN

4-5 Darba dienas

Slaucīts elkonis M/F M14x1,5 MF90M14B AGRALV MF9014B

IR NOLIKTAVĀ

ID: 40264

Apraksts

Part number	MF90M14B
EAN
Unit	Each
Product details	Direction of the coupling is adjustable Tube connector
Angle	90 Â°
Cone angle	60 Â°
AConnection 2, thread pitch	1.50 mm
AConnection 2, thread diameter	M14
Connection 2, thread type	Metric
Connection 2, type	Cone
Connection 2, type - male/female	Female
LConnection no 1 center to end distance	30 mm
HConnection centre to insert distance	40 mm
BConnection no 1 thread pitch	1.50 mm
BConnection no 1 thread diameter	M14
Connection no 1 thread type	Metric
Connection no 1 type - male/female	Female
Connection no 1 type	Cone
SWConnection no 1 wrench size	19.0 mm
Material	Steel
Max working pressure	380 BAR
Shape	Elbow - 2 connection sides
Surface treatment	Galvanised
