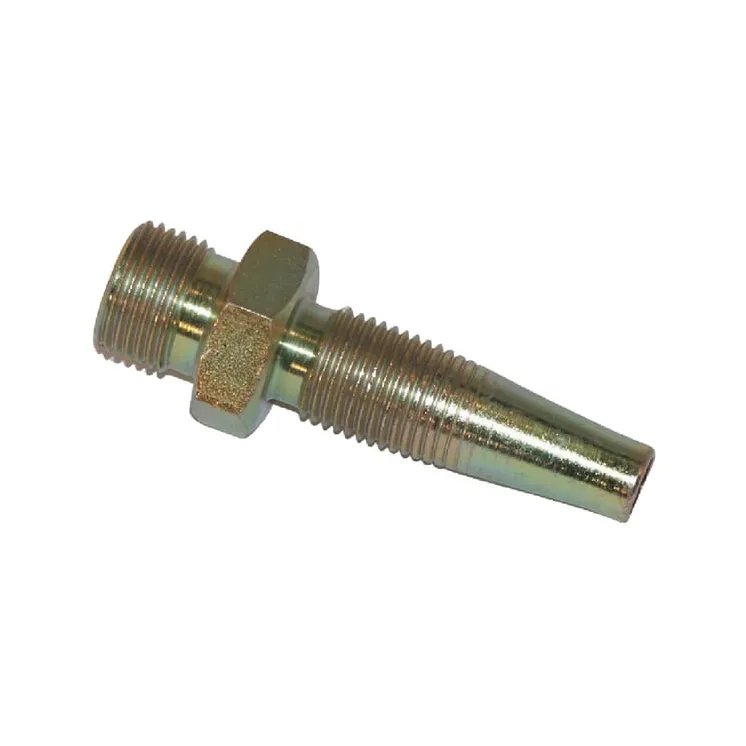

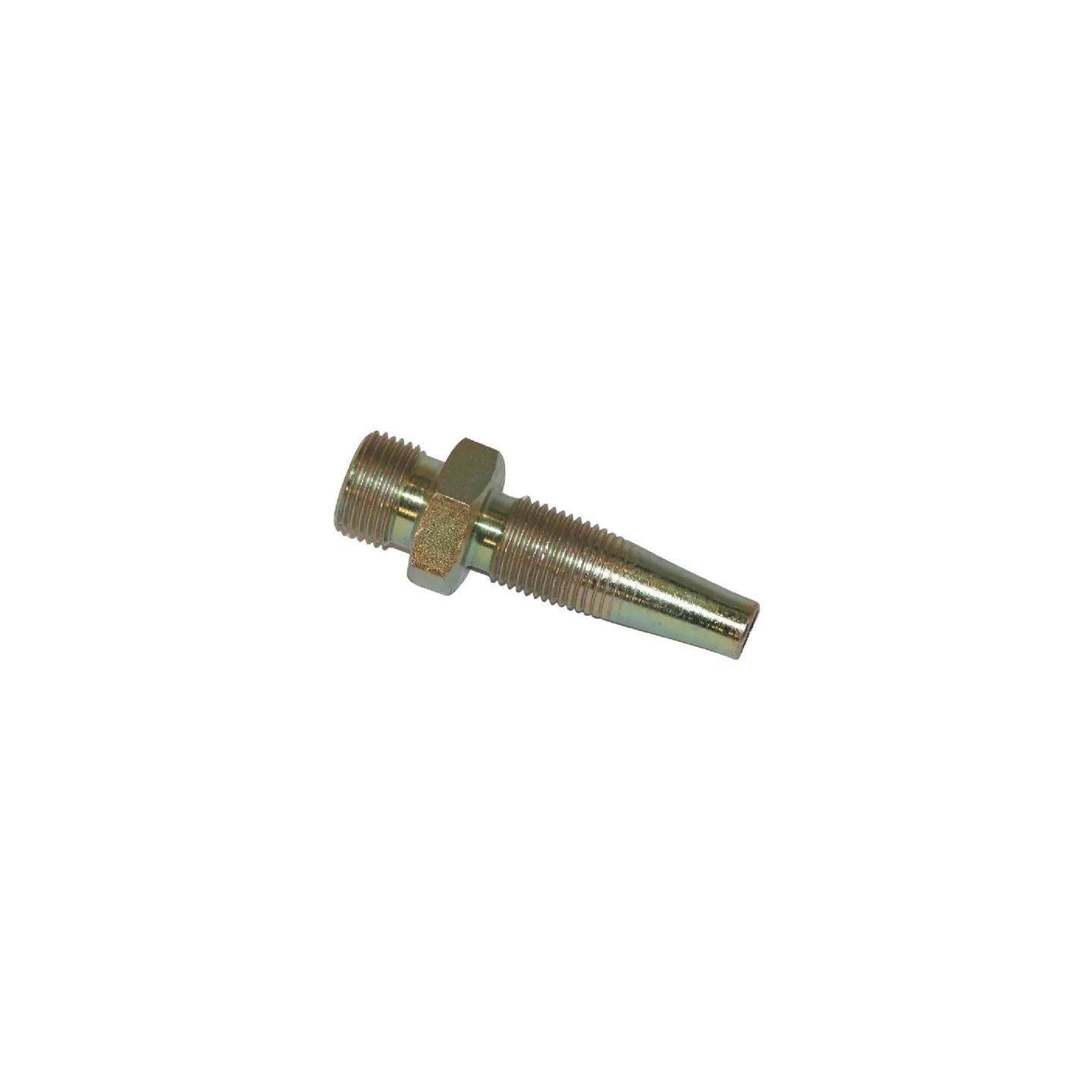

Ievietojiet DN06-1/4 BSP NH64

Name: Ievietojiet DN06-1/4 BSP NH64
Brand: AGRALV
SKU: NH64
Price: 3.17 EUR
Availability: InStock

Apmaksas iespējas

3,17 €

AR PVN

4-5 Darba dienas

Ievietojiet DN06-1/4 BSP NH64 AGRALV

IR NOLIKTAVĀ

ID: 40294

Apraksts

Part number	NH64
EAN
Unit	Each
Product details	Metal on metal seal- Screw pipe nozzle allows a hose assembly to be assembled without the use of a hose press
Shape	Straight - 2 connection sides
Connection no 1 type	Thread
Connection no 1 type - male/female	Male
Connection no 1 type code	DKR
Connection no 1 length	33.3 mm
Connection no 1 thread diameter	1/4 Inch
Connection no 1 thread type	BSP
HConnection no 1 wrench size	19.0 mm
Connection 2, type	Hose end
Connection 2, diameter	1/4 Inch
Connection 2, diameter	6 mm
LConnection 2, length	11.7 mm
ISO standard	228
CInside diameter	4.3 mm
Height	11.7 mm
Angle	180 Â°
Cone angle	60 Â°
Material	Steel
Surface treatment	Zinc-plated White passivated
