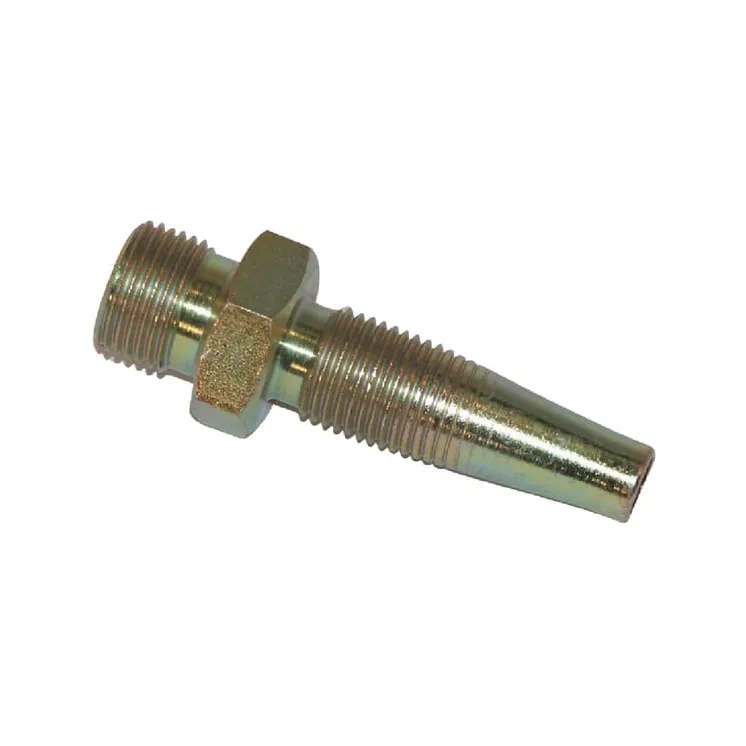

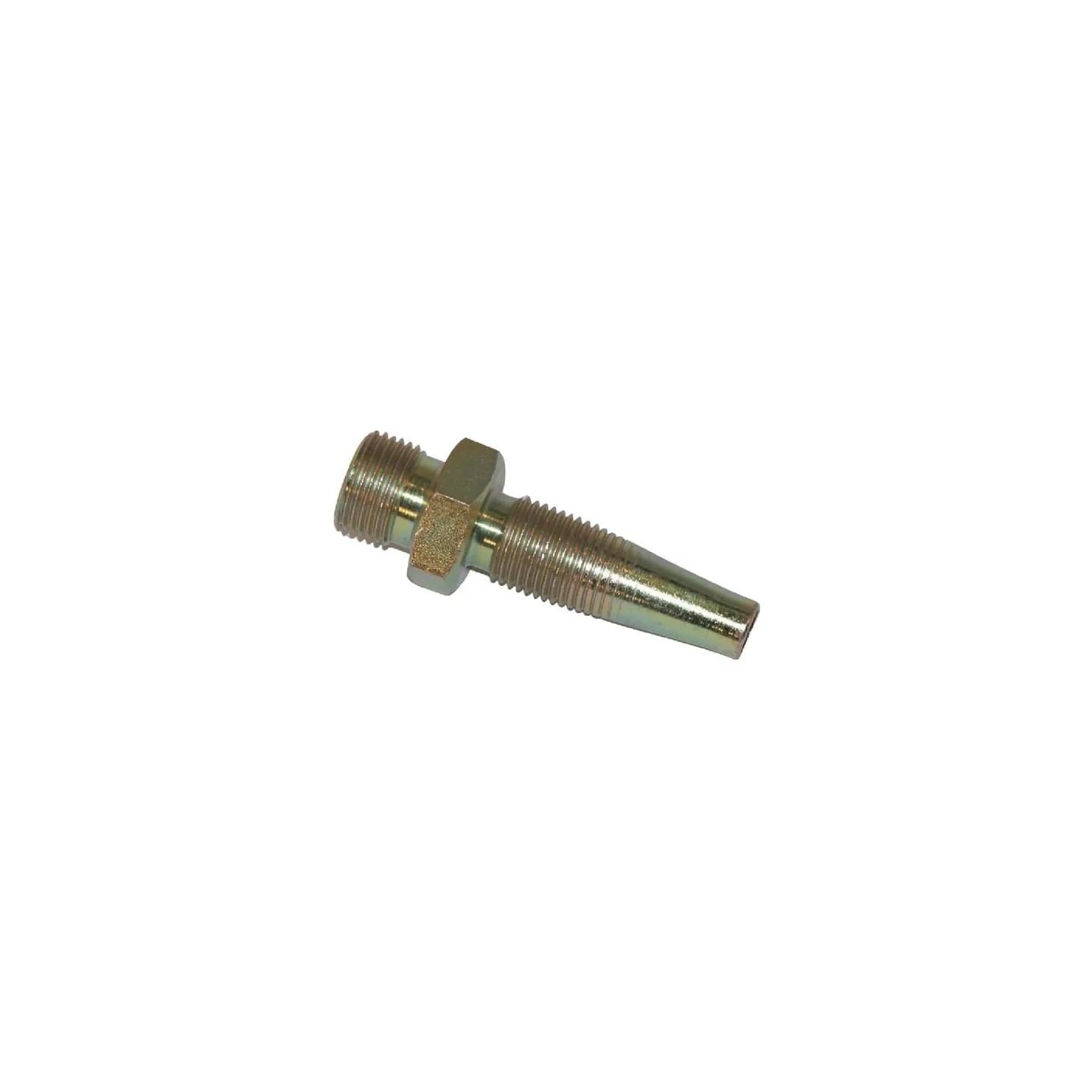

Ievietojiet DN10-3/8 BSP NH106

Name: Ievietojiet DN10-3/8 BSP NH106
Brand: AGRALV
SKU: NH106
Price: 3.86 EUR
Availability: InStock

Apmaksas iespējas

3,86 €

AR PVN

4-5 Darba dienas

Ievietojiet DN10-3/8 BSP NH106 AGRALV

IR NOLIKTAVĀ

ID: 40301

Apraksts

Part number	NH106
EAN
Unit	Each
Product details	Metal on metal seal- Screw pipe nozzle allows a hose assembly to be assembled without the use of a hose press
Long description	Properties: Metal on metal seal Technical information: Available in stainless steel on request Using a swage coupling, it is possible to create a hose connection without using a hose press
Shape	Straight - 2 connection sides
Connection no 1 type	Thread
Connection no 1 type - male/female	Male
Connection no 1 type code	DKR
Connection no 1 length	34.8 mm
Connection no 1 thread diameter	3/8 Inch
Connection no 1 thread type	BSP
HConnection no 1 wrench size	22.0 mm
Connection 2, type	Hose end
Connection 2, diameter	3/8 Inch
Connection 2, diameter	10 mm
LConnection 2, length	13.5 mm
ISO standard	228
CInside diameter	7.6 mm
Height	13.5 mm
Angle	180 Â°
Cone angle	60 Â°
Material	Steel
Surface treatment	Zinc-plated White passivated
