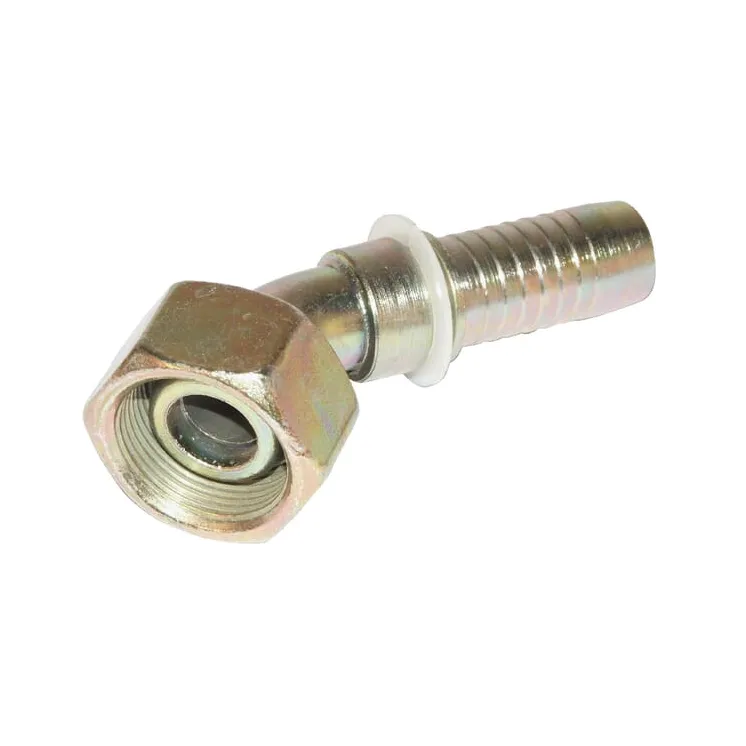

Ievietot DN06-M12x1,5-6L-45Â° PGL61245

Name: Ievietot DN06-M12x1,5-6L-45Â° PGL61245
Brand: AGRALV
SKU: PGL61245
Price: 7.64 EUR
Availability: BackOrder

Apmaksas iespējas

7,64 €

AR PVN

Pēc pieprasījuma

Ievietot DN06-M12x1,5-6L-45Â° PGL61245 AGRALV

Uz pasūtījumu

ID: 40363

Apraksts

Part number	PGL61245
EAN
Unit	Each
Product details	Cone, metal on metal seal Cutting ring adaptors L series 24Â° cone Adaptors with 60Â° cone Do not use for 4-layer hose ABT (4SP)
Long description	Application range: Cutting ring adapter series L, 24Â° cone Adapter with 60Â° cone Properties: Cone, metal on metal seal Technical information: Do not use for HDR hoses with 4 inserts (4SP)
Shape	Elbow - 2 connection sides
Connection no 1 type	Thread
Connection no 1 type - male/female	Female
Connection no 1 type code	DKM
Connection no 1 length	35 mm
Connection no 1 thread diameter	M12
Connection no 1 thread pitch	1.50 mm
Connection no 1 thread type	Metric
HConnection no 1 wrench size	14.0 mm
LConnection no 1 center to end distance	62 mm
Connection 2, type	Hose end
Connection 2, diameter	1/4 Inch
Connection 2, diameter	6 mm
DConnection 2, centre to end distance	16 mm
CConnection centre to insert distance	35 mm
Angle	45 Â°
Cone angle	60 Â°
Material	Steel
Surface treatment	Zinc-plated White passivated
Series	6L
