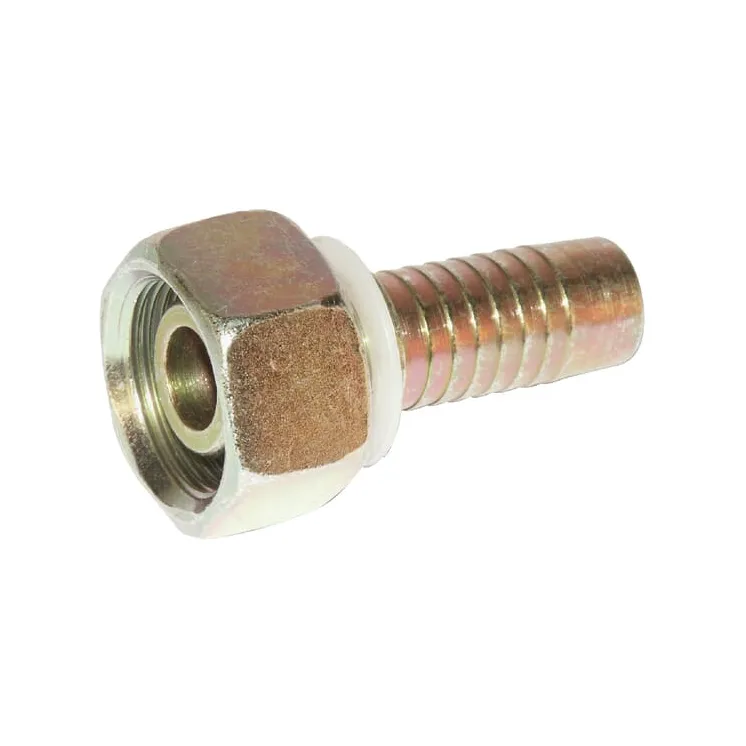

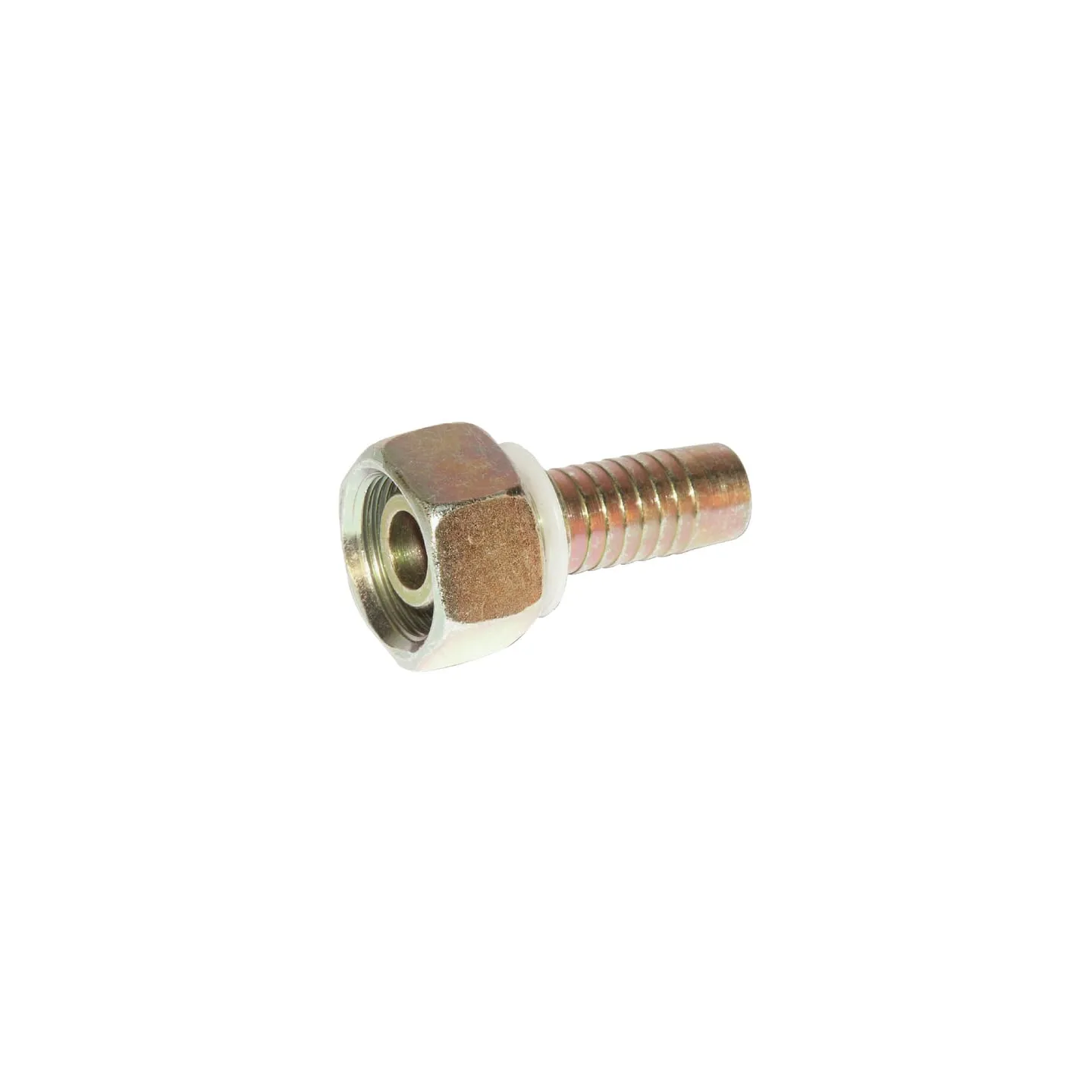

Ievietojiet DN06-M12x1,5-6L PGL612 DKM612 PGL612DB

Name: Ievietojiet DN06-M12x1,5-6L PGL612 DKM612 PGL612DB
Brand: AGRALV
SKU: PGL612
Price: 3.07 EUR
Availability: InStock

Apmaksas iespējas

3,07 €

AR PVN

4-5 Darba dienas

Ievietojiet DN06-M12x1,5-6L PGL612 AGRALV DKM612 PGL612DB

IR NOLIKTAVĀ

ID: 40371

Apraksts

Part number	PGL612
EAN
Unit	Each
Product details	Cone, metal on metal seal Cutting ring adaptors L series 24Â° cone Adaptors with 60Â° cone Do not use for 4-layer hose HDR (4SP)
Long description	Application range: Cutting ring adapter series L, 24Â° cone Adapter with 60Â° cone Properties: Cone, metal on metal seal Technical information: Do not use for HDR hoses with 4 inserts (4SP)
Surface treatment	Zinc-plated White passivated
Cone angle	60 Â°
Connection 2, diameter	1/4 Inch
Connection 2, diameter	6 mm
Connection 2, type	Hose end
LConnection no 1 center to end distance	51 mm
Connection no 1 thread pitch	1.50 mm
Connection no 1 thread diameter	M12
Connection no 1 thread type	Metric
Connection no 1 type code	DKM
Connection no 1 type - male/female	Female
Connection no 1 type	Thread
HConnection no 1 wrench size	14.0 mm
Material	Steel
Series	6L
Shape	Straight - 2 connection sides
