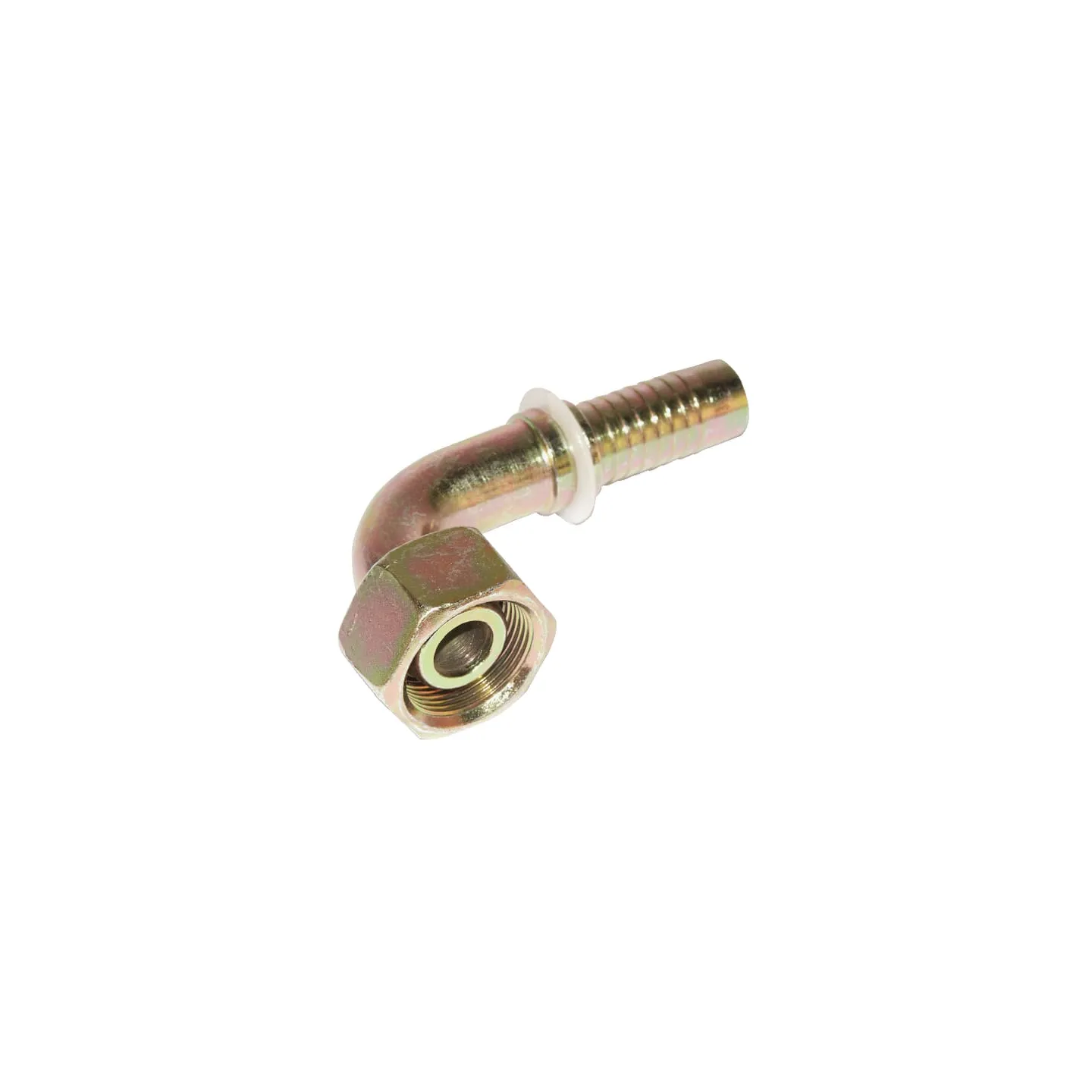

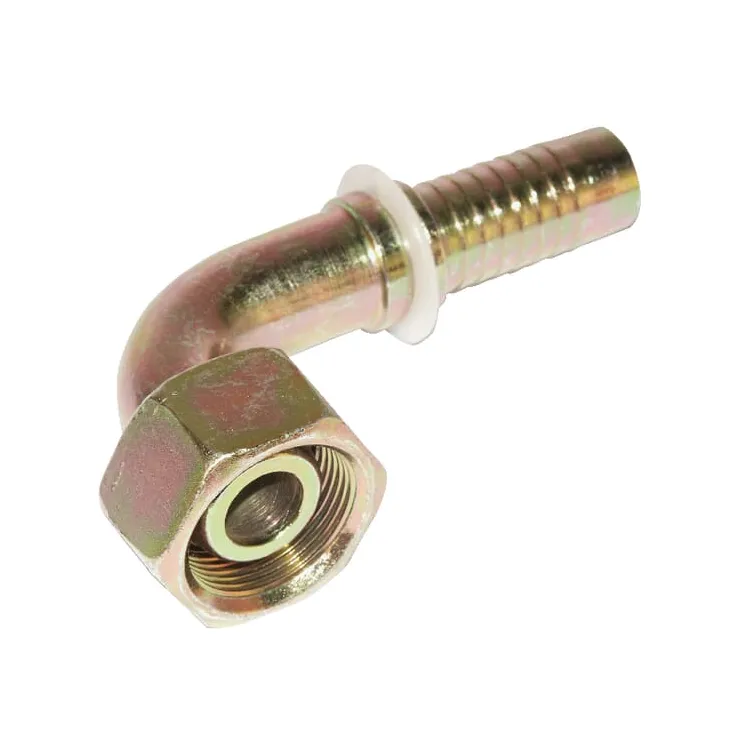

Ievietot DN10-M16x1,5-10L-90Â° PGL101690 DKM101690

Name: Ievietot DN10-M16x1,5-10L-90Â° PGL101690 DKM101690
Brand: AGRALV
SKU: PGL101690
Price: 7.37 EUR
Availability: InStock

Apmaksas iespējas

7,37 €

AR PVN

4-5 Darba dienas

Ievietot DN10-M16x1,5-10L-90Â° PGL101690 AGRALV DKM101690

IR NOLIKTAVĀ

ID: 40383

Apraksts

Part number	PGL101690
EAN
Unit	Each
Product details	Cone, metal on metal seal Cutting ring adaptors L series 24Â° cone Adaptors with 60Â° cone Do not use for 4-layer hose HDR (4SP)
Shape	Elbow - 2 connection sides
Connection no 1 type	Thread
Connection no 1 type - male/female	Female
Connection no 1 type code	DKM
Connection no 1 length	30 mm
Connection no 1 thread diameter	M16
Connection no 1 thread pitch	1.50 mm
Connection no 1 thread type	Metric
HConnection no 1 wrench size	22.0 mm
Connection 2, type	Hose end
Connection 2, diameter	3/8 Inch
Connection 2, diameter	10 mm
Angle	90 Â°
Cone angle	60 Â°
Material	Steel
Surface treatment	Zinc-plated White passivated
Series	10L
