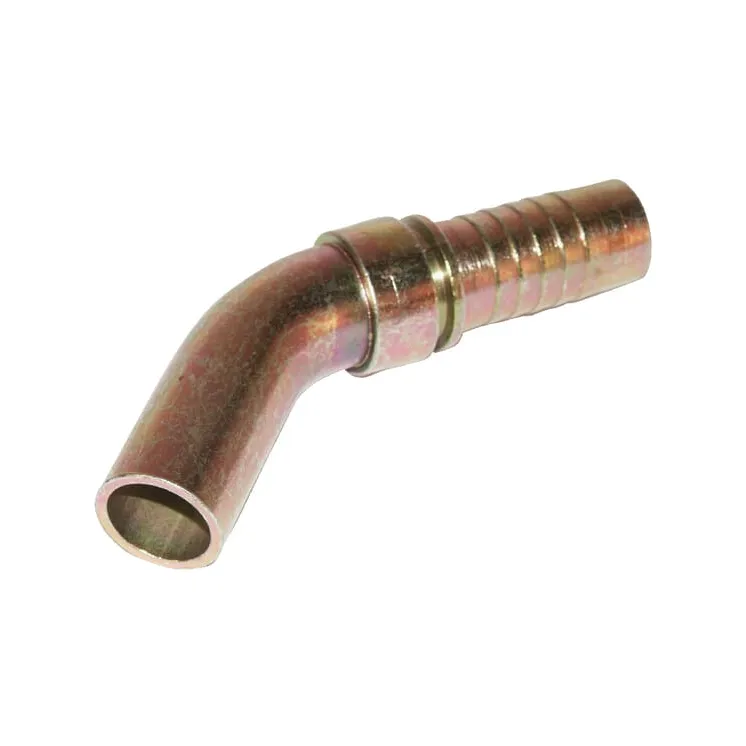

Ievietojiet DN05-06mm-45Â° PT5645

Name: Ievietojiet DN05-06mm-45Â° PT5645
Brand: AGRALV
SKU: PT5645
Price: 11.76 EUR
Availability: InStock

Apmaksas iespējas

11,76 €

AR PVN

4-5 Darba dienas

Ievietojiet DN05-06mm-45Â° PT5645 AGRALV

IR NOLIKTAVĀ

ID: 40447

Apraksts

Part number	PT5645
EAN
Unit	Each
Product details	Sealing: cutting ring assembly L series Do not use for 4-layer hose HDR (4SP)
Long description	Application range: L-series cutting ring adapter Properties: Seal: L series cutting ring assembly Technical information: Do not use for HDR hoses with 4 inserts (4SP) Available in stainless ste
Surface treatment	Zinc-plated White passivated
Angle	45 Â°
DConnection 2, centre to end distance	26 mm
Connection 2, diameter	3/16 Inch
Connection 2, diameter	5 mm
Connection 2, type	Hose end
CConnection centre to insert distance	33 mm
0D1Connection no 1 diameter	6 mm
Connection no 1 thread pitch	1.50 mm
Connection no 1 thread diameter	M12
Connection no 1 type code	BEL
Connection no 1 type	Stand pipe
Material	Steel
Series	6L
Shape	Elbow - 2 connection sides
