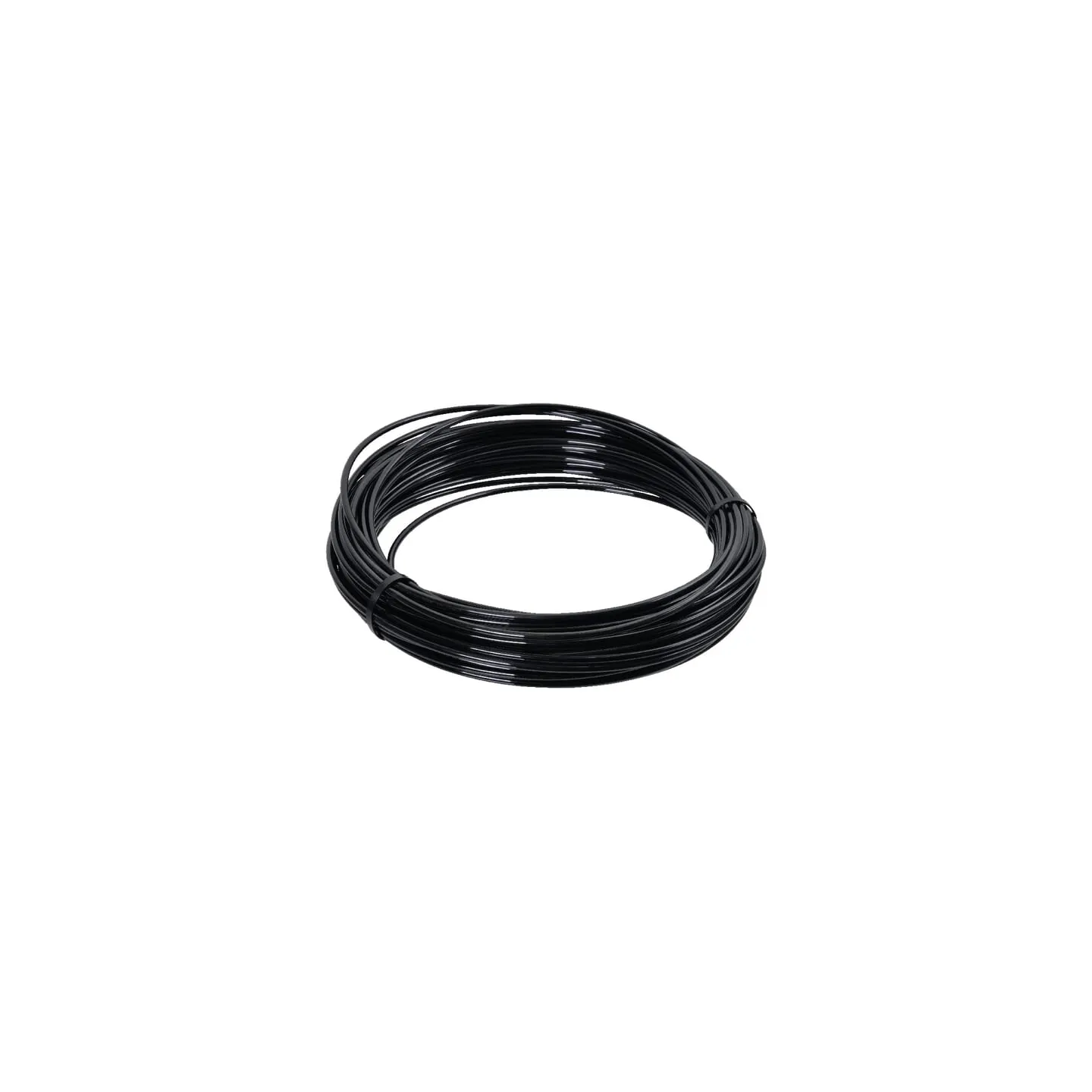

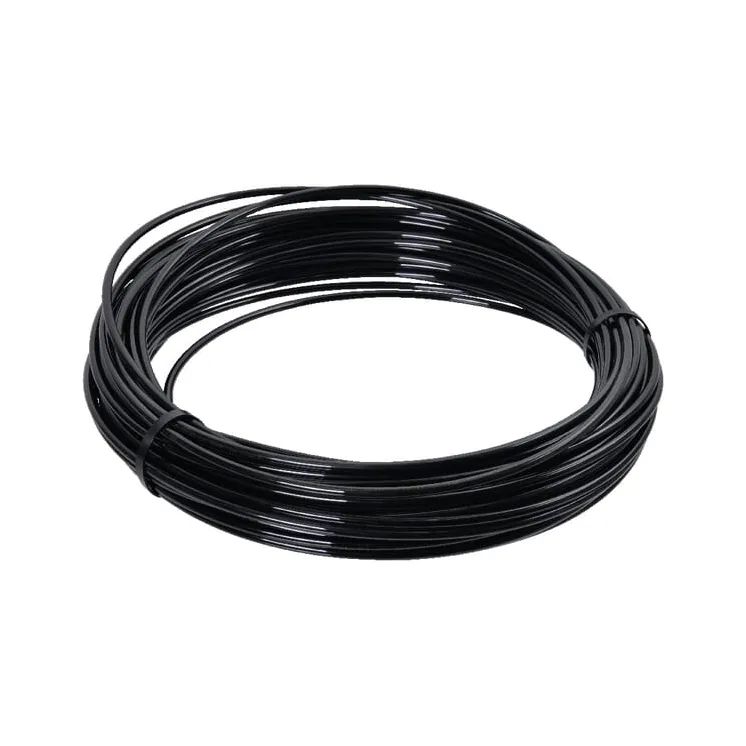

Servo vadības šļūtene 8x4 TA84N40

Name: Servo vadības šļūtene 8x4 TA84N40
Brand: AGRALV
SKU: TA84N40
Price: 6.47 EUR
Availability: InStock

Apmaksas iespējas

6,47 €

AR PVN

4-5 Darba dienas

Servo vadības šļūtene 8x4 TA84N40 AGRALV

IR NOLIKTAVĀ

ID: 40741

Apraksts

Part number	TA84N40
EAN
Unit	Metre
Qty. Rounding	0.01
Application range	Servo control on valves Grease lubrication with a maximum working pressure of 33 bar.
Technical info	Put a locking or clamping ring before mounting on the fittings Supporting clamp for lock coupling: item: 2212 001 Oil and petrol resistant, no acid resistance.
Hose inside diameter	4 mm
Max working pressure	33 BAR
Material inside	Polyamide
Bend radius	32 mm
Weight	0.039 kg/m
Type	Hydraulic high pressure hose
Hose outside diameter	8 mm
Burst pressure	132 BAR
Medium	Hydraulic oil
Max working temperature	80 Â°C
Min working temperature	-20 Â°C
Material outside	Polyamide
Reinforcement type	n/a
Reinforcement material	n/a
DIN standard	73378
