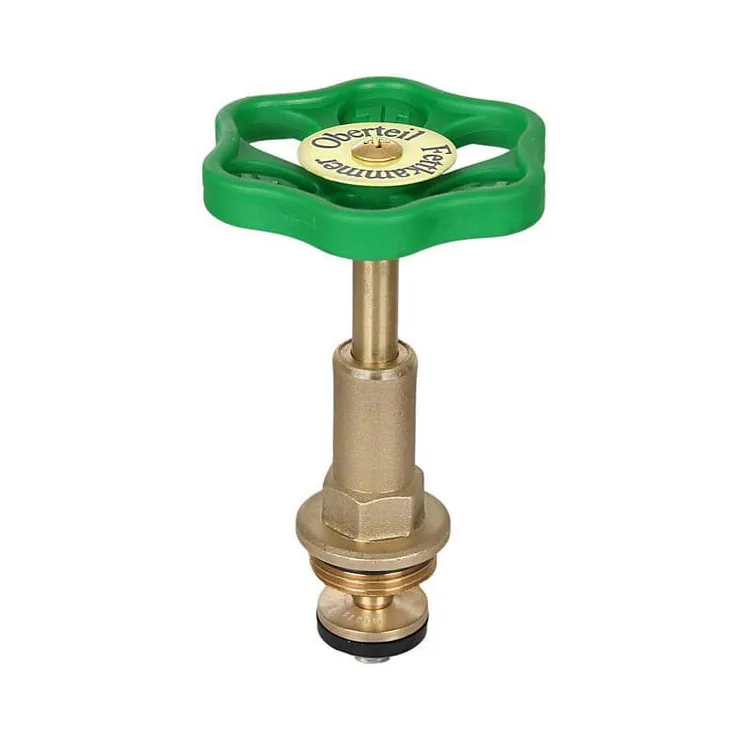

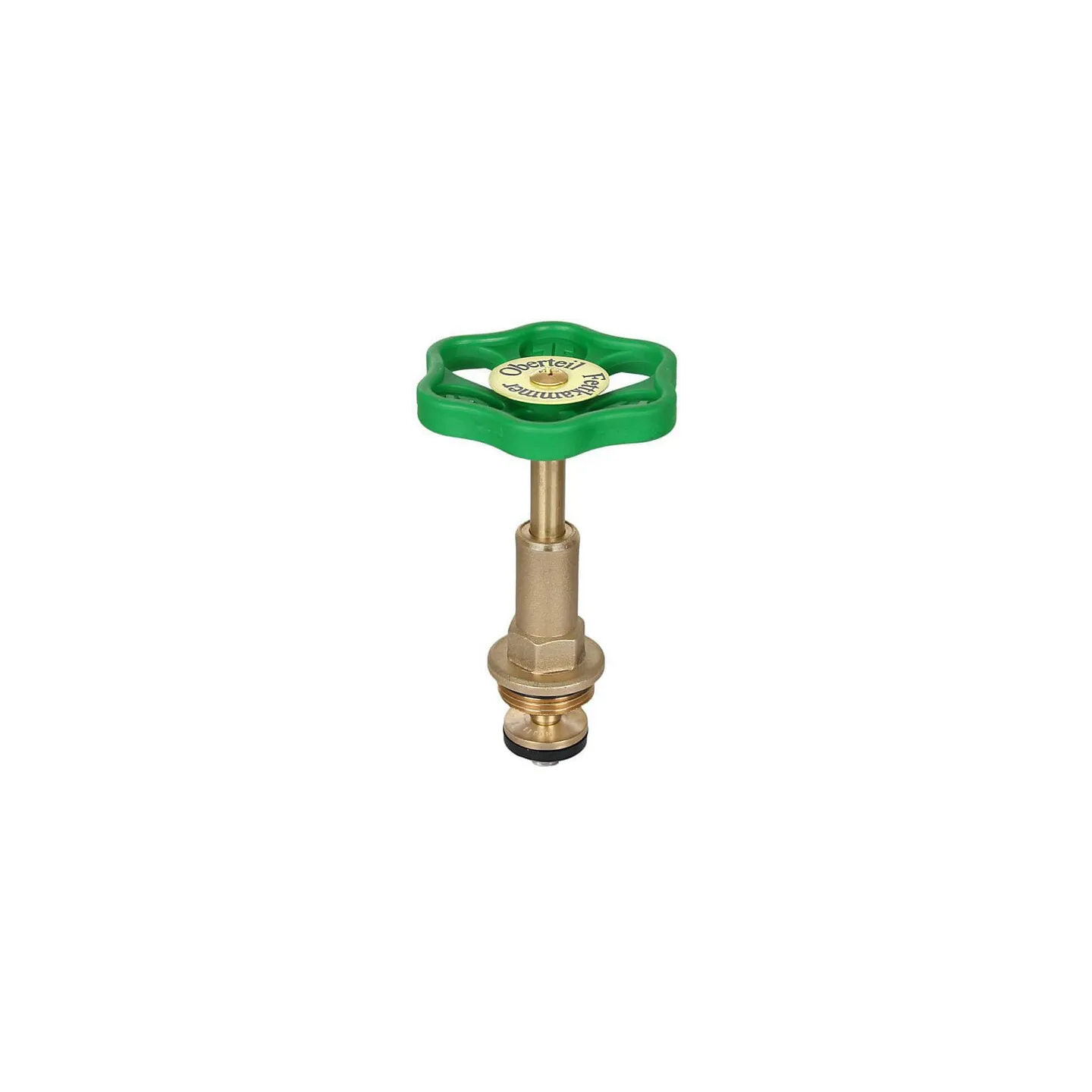

SSV augšējā daļa 1 1/2 SSV9112

Name: SSV augšējā daļa 1 1/2 SSV9112
Brand: AGRALV
SKU: SSV9112
Price: 25.58 EUR
Availability: InStock

Apmaksas iespējas

25,58 €

AR PVN

4-5 Darba dienas

SSV augšējā daļa 1 1/2 SSV9112 AGRALV

IR NOLIKTAVĀ

ID: 40922

Apraksts

Part number	SSV9112
EAN	4044997122891
Unit	Each
Connection type	Thread
Connection thread type (male/female)	Male
DNPassage hole nominal diameter	40 mm
Passage hole nominal diameter	1-1/2 Inch
Type of drive/steering	Hand wheel
Flow direction type	Bi-directional
d3Total width	56 mm
h1Cylinder stroke	41.5 mm
h2Passage hole centre to stem distance	35 mm
h3Passage hole centre to lever end distance	119.5 mm
d2Cylinder outside diameter	43 mm
Cylinder mounting thread diameter	1-1/2 Inch
Extra info	long shank length
