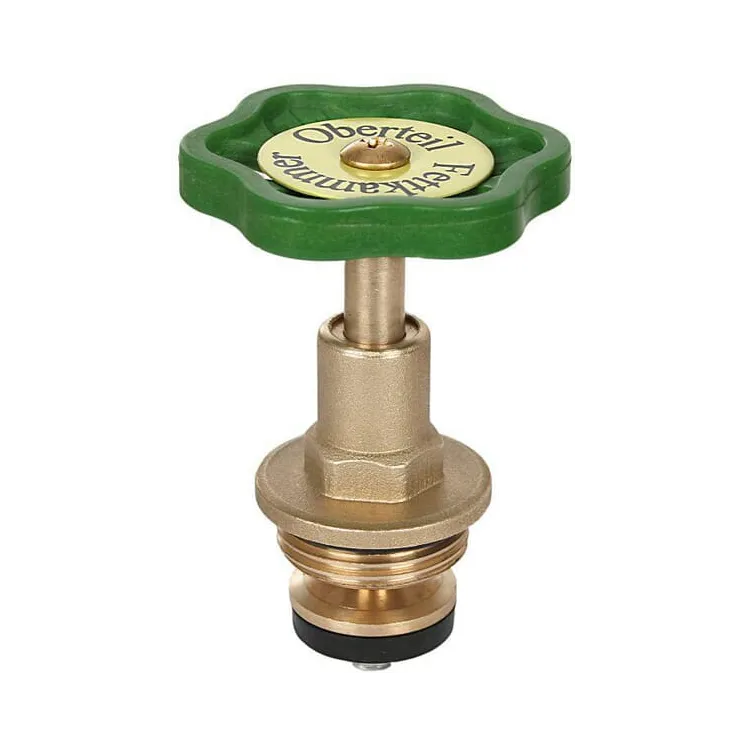

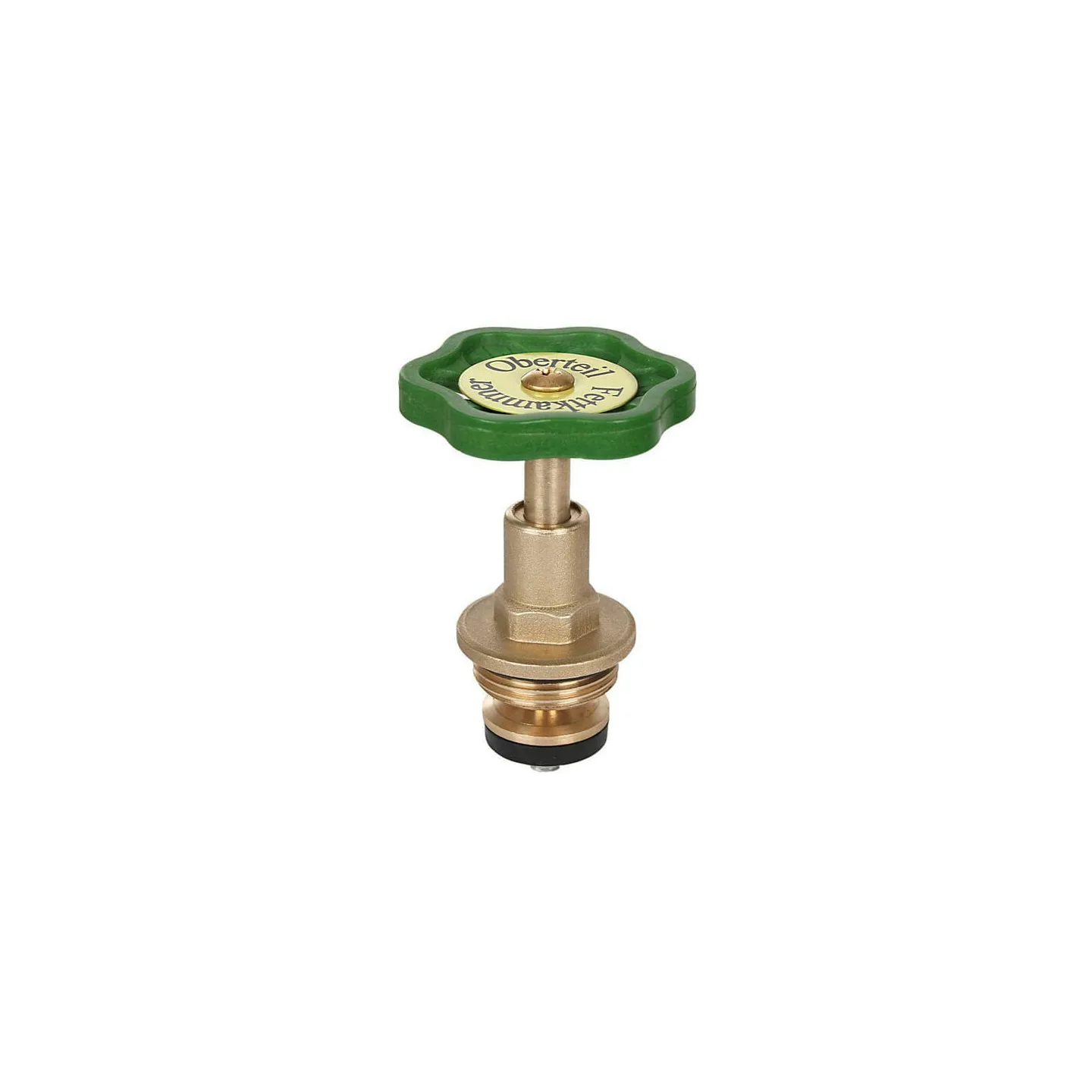

| Part number | SSV91 | |
|---|---|---|
| EAN | 4044997121580 | |
| Unit | Each | |
| Connection type | Thread | |
| Connection thread type (male/female) | Male | |
| DNPassage hole nominal diameter | 25 mm | |
| Passage hole nominal diameter | 1 Inch | |
| Type of drive/steering | Hand wheel | |
| Flow direction type | Bi-directional | |
| d3Total width | 40 mm | |
| h1Cylinder stroke | 22.5 mm | |
| h2Passage hole centre to stem distance | 21 mm | |
| h3Passage hole centre to lever end distance | 76.5 mm | |
| d2Cylinder outside diameter | 28 mm | |
| Cylinder mounting thread diameter | 1 Inch | |
| Extra info | short shank length |
