Spiediena plāksne 228020810

Name: Spiediena plāksne 228020810
Brand: LuK
SKU: 228020810
Price: 275.6 EUR
Availability: BackOrder

Apmaksas iespējas

275,60 €

AR PVN

Pēc pieprasījuma

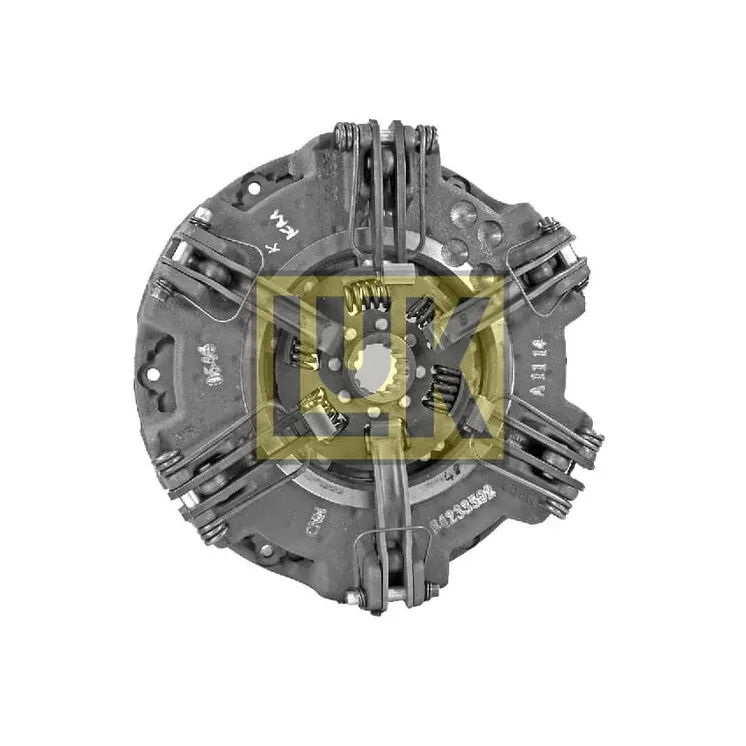

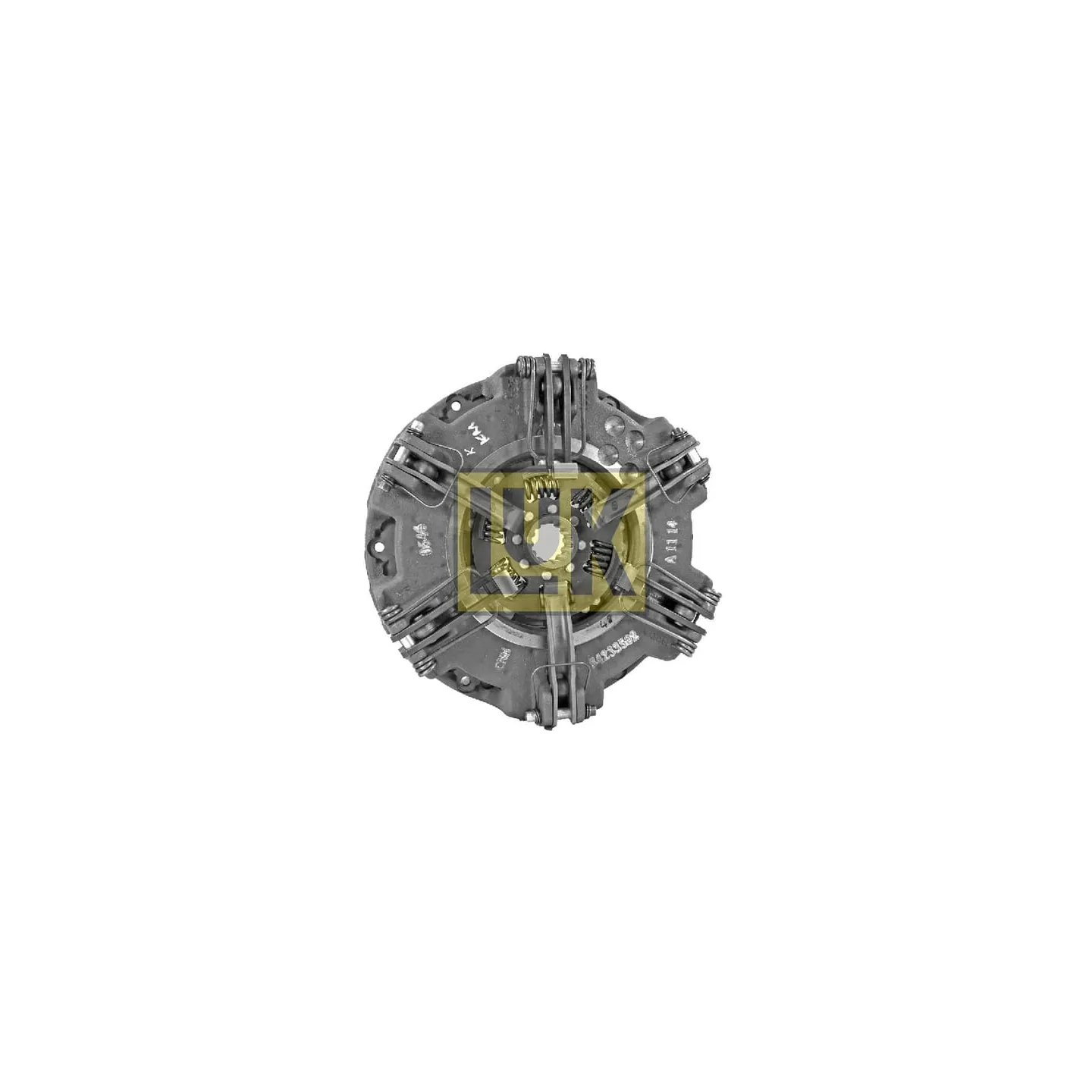

Spiediena plāksne 228020810 LuK

Uz pasūtījumu

ID: 49396

Apraksts

Part number	228020810
EAN	4005108834614
Unit	Each
Technical info	SINGLE-PLATE CLUTCH 1st figure: clamping system S = coil spring T = diaphragm spring N = fixed PTO on coil spring clutch D = fixed PTO on diaphragm spring clutch H = diaphragm clutch with levers J = diaphragm clutch with levers and fixed PTO 2nd figure: housing material B = pressed steel G = cast iron 3rd figure: flywheel type F = flat flywheel V = pot flywheel A = non-standard version 4th figure: release bearing contact area O = without release plate M = with release plate R = curved diaphragm fingers P = flat diaphragm fingers DOUBLE CLUTCH: 1st figure: clamping system S = coil spring T = diaphragm spring K = combination of coil and diaphragm spring X = twin plate clutch; diaphragm spring; levers Y = twin plate clutch; coil spring; levers with release plate Z = twin plate clutch; diaphragm spring; levers; fixed PTO 2nd figure: housing material B = pressed steel G = cast iron 3rd figure: clutch type A = combined or sequential U = independent W = single gear shaft 4th figure: number of levers 3 = 3 levers 6 = 6 levers
Working outside diameter	280 mm 280 mm
LuK type code	KGS 6
Levers	Yes
Number of holes	6
Diameter (mm)	280/280 mm
OEM-Number	84233502 Case IH
Number of holes	6
Number of springs	1
Number of springs	1
Suitable for	Case New Holland
Type	KGS6
