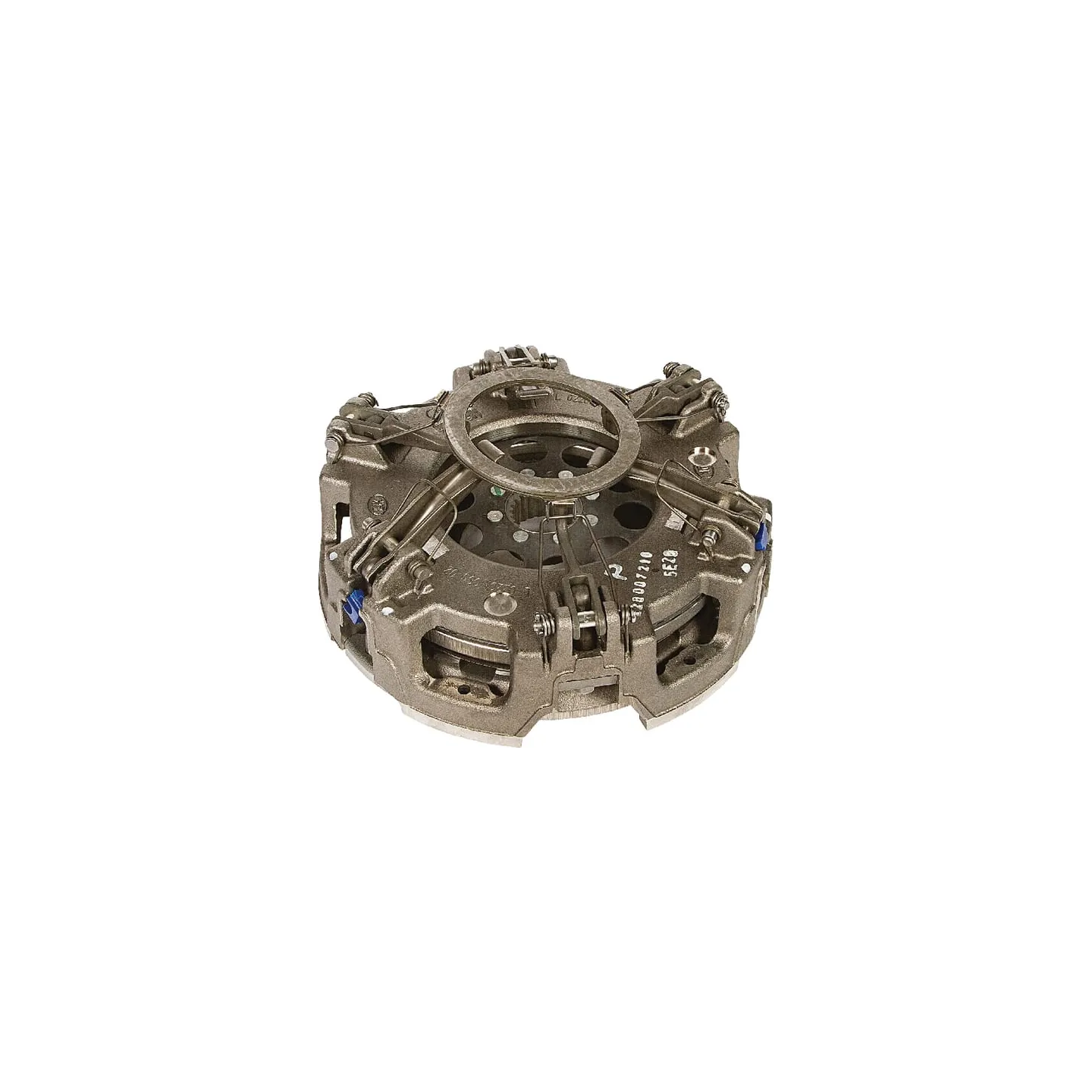

Sajūga pārsegi dubultie TGU6 228007210 228007221

Name: Sajūga pārsegi dubultie TGU6 228007210 228007221
Brand: LuK
SKU: 228007210
Price: 616.86 EUR
Availability: BackOrder

Apmaksas iespējas

616,86 €

AR PVN

Pēc pieprasījuma

Sajūga pārsegi dubultie TGU6 228007210 LuK 228007221

Uz pasūtījumu

ID: 49412

Apraksts

Part number	228007210
EAN	4005108524645
Unit	Each
Technical info	SINGLE-PLATE CLUTCH 1st figure: clamping system S = coil spring T = diaphragm spring N = fixed PTO on coil spring clutch D = fixed PTO on diaphragm spring clutch H = diaphragm clutch with levers J = diaphragm clutch with levers and fixed PTO 2nd figure: housing material B = pressed steel G = cast iron 3rd figure: flywheel type F = flat flywheel V = pot flywheel A = non-standard version 4th figure: release bearing contact area O = without release plate M = with release plate R = curved diaphragm fingers P = flat diaphragm fingers DOUBLE CLUTCH: 1st figure: clamping system S = coil spring T = diaphragm spring K = combination of coil and diaphragm spring X = twin plate clutch; diaphragm spring; levers Y = twin plate clutch; coil spring; levers with release plate Z = twin plate clutch; diaphragm spring; levers; fixed PTO 2nd figure: housing material B = pressed steel G = cast iron 3rd figure: clutch type A = combined or sequential U = independent W = single gear shaft 4th figure: number of levers 3 = 3 levers 6 = 6 levers
LuK type code	TGU 6
Levers	Yes
Number of holes	12
Number of springs	1
Outside diameter	280 mm 280 mm
Suitable for	Steyr
Type	TGU6
