Sajūga pārsegs dubultā TGU6 233003711

Name: Sajūga pārsegs dubultā TGU6 233003711
Brand: LuK
SKU: 233003711
Price: 1024.2 EUR
Availability: BackOrder

Apmaksas iespējas

1 024,20 €

AR PVN

Pēc pieprasījuma

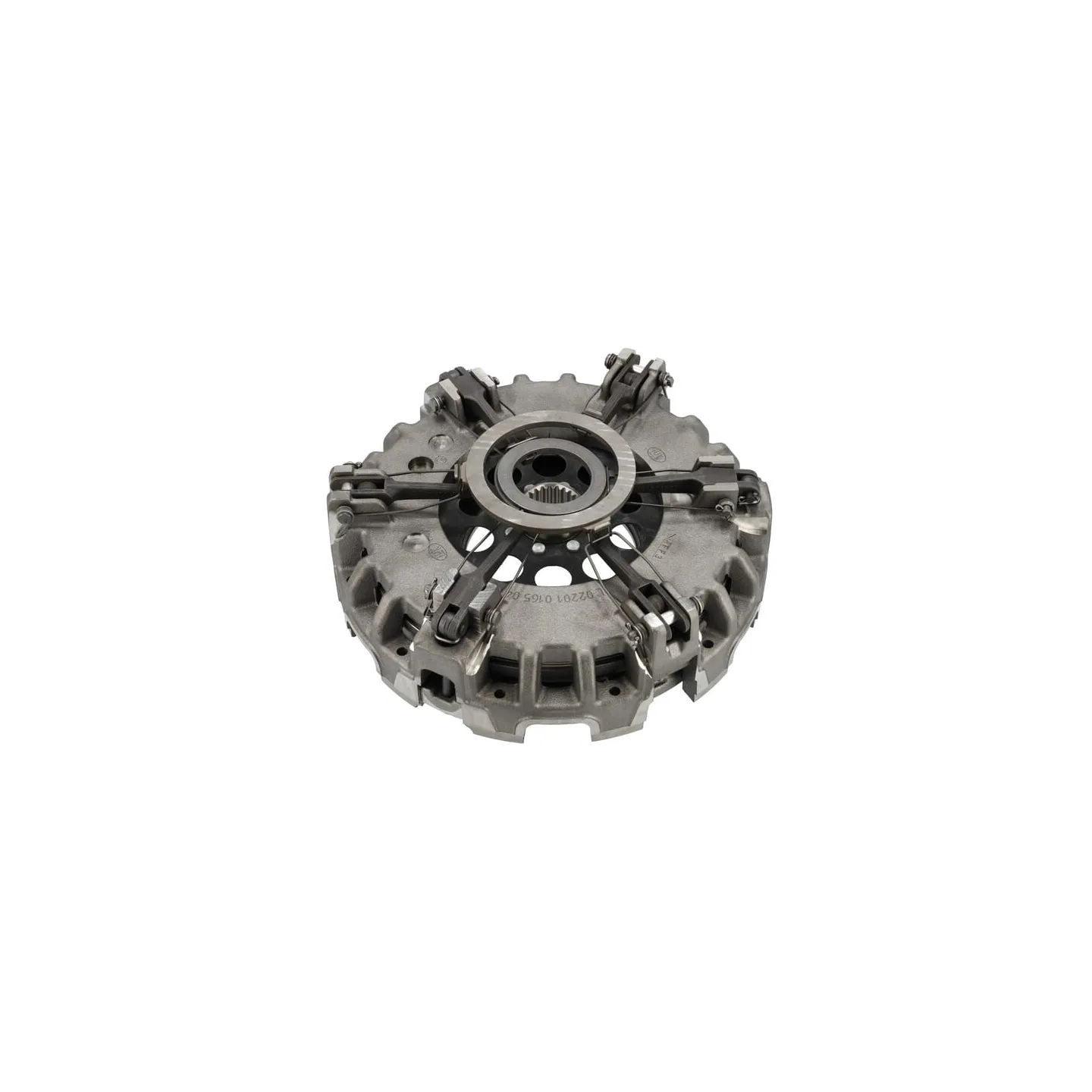

Sajūga pārsegs dubultā TGU6 233003711 LuK

Uz pasūtījumu

ID: 49448

Apraksts

Part number	233003711
EAN	4014870769758
Unit	Each
Technical info	SINGLE-PLATE CLUTCH 1st figure: clamping system S = coil spring T = diaphragm spring N = fixed PTO on coil spring clutch D = fixed PTO on diaphragm spring clutch H = diaphragm clutch with levers J = diaphragm clutch with levers and fixed PTO 2nd figure: housing material B = pressed steel G = cast iron 3rd figure: flywheel type F = flat flywheel V = pot flywheel A = non-standard version 4th figure: release bearing contact area O = without release plate M = with release plate R = curved diaphragm fingers P = flat diaphragm fingers DOUBLE CLUTCH: 1st figure: clamping system S = coil spring T = diaphragm spring K = combination of coil and diaphragm spring X = twin plate clutch; diaphragm spring; levers Y = twin plate clutch; coil spring; levers with release plate Z = twin plate clutch; diaphragm spring; levers; fixed PTO 2nd figure: housing material B = pressed steel G = cast iron 3rd figure: clutch type A = combined or sequential U = independent W = single gear shaft 4th figure: number of levers 3 = 3 levers 6 = 6 levers
LuK type code	TGU 6
Levers	Yes
Number of holes	12
Number of springs	1
Outside diameter	310 mm 330 mm
Suitable for	Mercedes-Benz
Type	TGU6
