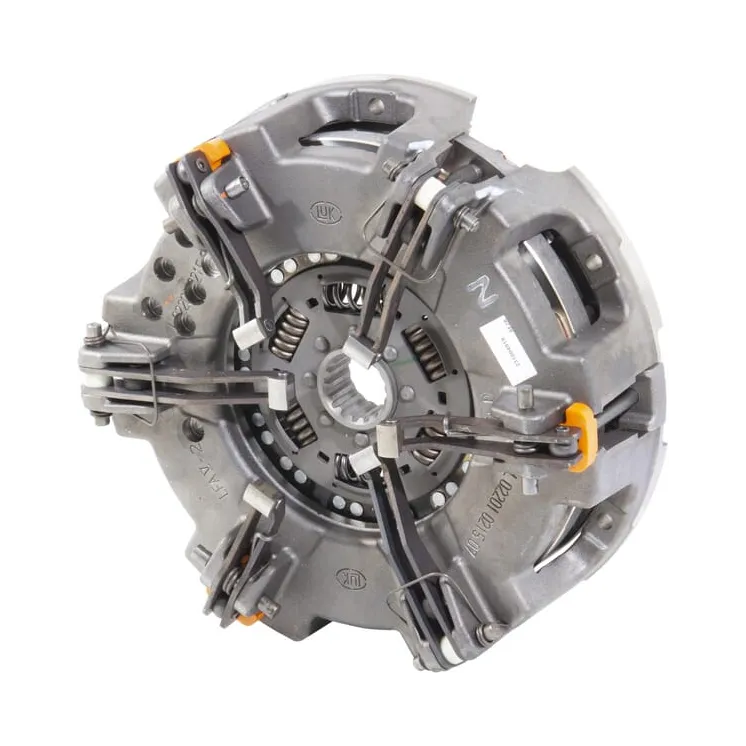

Sajūga pārsegi dubultie TGU6 231004919 231004911

Name: Sajūga pārsegi dubultie TGU6 231004919 231004911
Brand: LuK
SKU: 231004919
Price: 639.86 EUR
Availability: InStock

Apmaksas iespējas

639,86 €

AR PVN

4-5 Darba dienas

Sajūga pārsegi dubultie TGU6 231004919 LuK 231004911

IR NOLIKTAVĀ

ID: 49464

Apraksts

Part number	231004919
EAN
Unit	Each
Technical info	SINGLE-PLATE CLUTCH 1st figure: clamping system S = coil spring T = diaphragm spring N = fixed PTO on coil spring clutch D = fixed PTO on diaphragm spring clutch H = diaphragm clutch with levers J = diaphragm clutch with levers and fixed PTO 2nd figure: housing material B = pressed steel G = cast iron 3rd figure: flywheel type F = flat flywheel V = pot flywheel A = non-standard version 4th figure: release bearing contact area O = without release plate M = with release plate R = curved diaphragm fingers P = flat diaphragm fingers DOUBLE CLUTCH: 1st figure: clamping system S = coil spring T = diaphragm spring K = combination of coil and diaphragm spring X = twin plate clutch; diaphragm spring; levers Y = twin plate clutch; coil spring; levers with release plate Z = twin plate clutch; diaphragm spring; levers; fixed PTO 2nd figure: housing material B = pressed steel G = cast iron 3rd figure: clutch type A = combined or sequential U = independent W = single gear shaft 4th figure: number of levers 3 = 3 levers 6 = 6 levers
LuK type code	TGU 6
Levers	Yes
Number of holes	6
Number of springs	1
Outside diameter	310 mm 310 mm
Suitable for	Fiatagri New Holland
Type	TGU6
