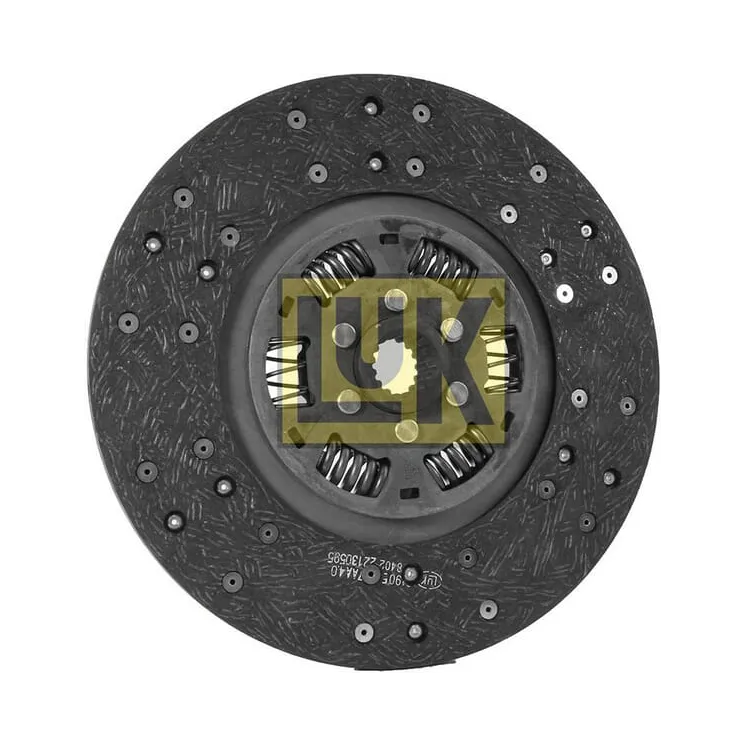

Sajūga plāksne 329001410

Name: Sajūga plāksne 329001410
Brand: LuK
SKU: 329001410
Price: 290.87 EUR
Availability: BackOrder

Apmaksas iespējas

290,87 €

AR PVN

Pēc pieprasījuma

Sajūga plāksne 329001410 LuK

Uz pasūtījumu

ID: 49525

Apraksts

Part number	329001410
EAN	4005108238610
Unit	Each
Long description	Clutch plates overview
Product details	1st letter: hub version U = rigid T = torsion damped 2nd letter: cushion deflection K = without axial cushion S = with segment cushion D = with dual segment cushion Z = with intermediate segments L = central plate with segments 3rd letter: friction material C = cerametallic lining F = asbestos free 4th letter: torsion damper N = standard damper A = with compensating springs V = pre-damper
Technical info	1st figure: basic version U = rigid T = torsion damped 2nd figure: cushion deflection K = without axial cushion S = with segment cushion D = with dual segment cushion Z = with intermediate segments L = central plate with segments 3rd figure: friction material C = cerametallic lining F = asbestos free 4th figure: torsion damper N = standard damper A = with compensating springs V = pre-damper
Connection number of splines/groves	17
Connection diameter	28 mm 32 mm
Working outside diameter	290 mm
LuK type code	TZFA
Material	Organic
Diameter (mm)	289 mm
Hub Ã˜ (mm)	28 x 32 mm
OEM-Number	47958512 Case IH
Splines	17
Suitable for	Case New Holland
Suspension	torsion damped
Type	TKFN
