| Part number | G1420563 | |
|---|
| EAN | | |
|---|
| Unit | Each | |
|---|

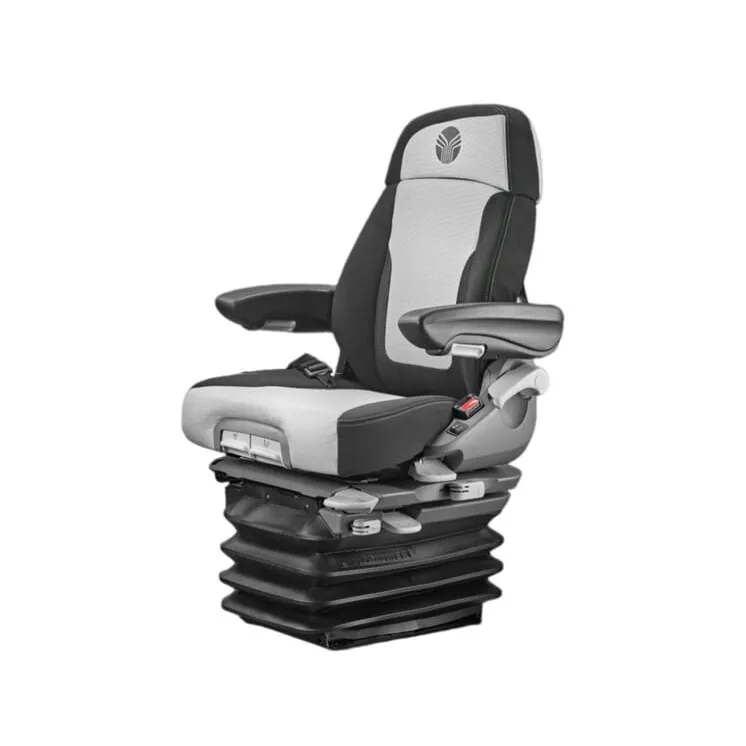

| Details | - Air-sprung seat
- With dynamic damping system (DDS)
- Fully automatic weight adjustment
- With longitudinal horizontal suspension, blocking
- With rotation adaptor
- Low-frequency suspension
| |
|---|
| Application range | For medium-sized and heavy tractors | |
|---|
| Properties | - Seat cushion width 565 mm
- Spring travel: 120 mm
- Infinitely variable height adjustment 80 mm, air-assisted
- Horizontal adjustment 210 mm
- Backrest inclination adjustment, max. 35°
- Lumbar support, pneumatically adjustable
- Air-conditioning system, active charcoal filter
- Weight adjustment 50–130 kg
- Weight 52 kg
- Seat heating (seat and seat back)
- APS: automatic positioning system
| |
|---|
| Benefits | - Extremely comfortable seat
- No spring penetration thanks to DDS
- Effectively prevents spinal disc damage
- Protects the back from impacts
- Facilitates entry
- Significantly reduces vibrations
| |
|---|
| Suspension type | Pneumatic | |
|---|
| Upholstery material | | |
|---|
| Upholstery colour | | |
|---|
| Total width | 565 mm | |
|---|
| Consists of | - Seat
- With backrest extension
- With left arm rest, adjustable inclination 80 mm x 380 mm
- Without right arm console
- Rotation adapter 20°
- Store bag
- Integrated air compressor (12 V)
| |
|---|
| Armrests included | Yes | |
|---|
| Backrest extension included | Yes | |
|---|
| Seatbelt included | Yes | |
|---|
| Contact switch included | No | |
|---|
| Auto user weight adjustment | Yes | |
|---|
| Model | n/a | |
|---|
| Back angle adjustment | 35 ° | |
|---|
| Height adjustment | 8 cm | |
|---|
| Depth | 648 mm | |
|---|
| Min. working load | 50 kg | |
|---|
| Suspension stroke | 12 cm | |
|---|
| Max. working load | 130 kg | |
|---|
| Total height | 920 mm | |
|---|
| Heating kit included | Yes | |
|---|
| Total length | 648 mm | |
|---|
| Supply voltage | 12 V | |
|---|
