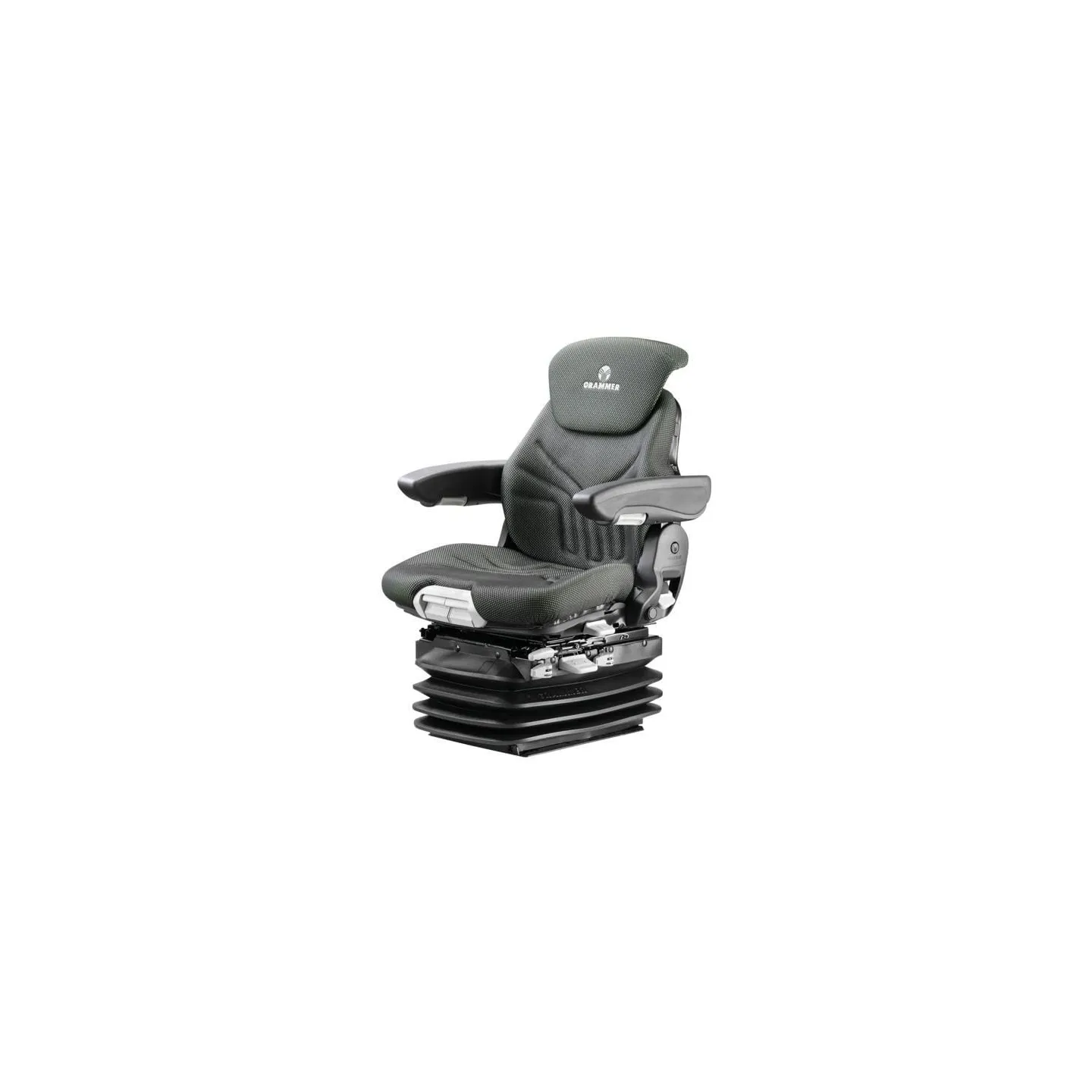

| Part number | G1288547 | |
|---|
| EAN | | |
|---|
| Unit | Each | |
|---|
| Details | - Air-sprung seat with low-frequency suspension
- Longitudinal horizontal suspension
- Damper, adjustable
| |
|---|
| Product details | - Pneumatic seat with low-frequency suspension
- Longitudinal horizontal suspension
- Damper, adjustable
- Seat cushion width 530mm
- Spring travel 100mm
- Variable height adjustment 80mm, air-assisted
- Horizontal adjustment 210mm
- Mechanically-adjustable lumbar support
- Automatic weight adjustment, 50 - 130kg
- Weight 53 kg
- APS: automatic positioning system
| |
|---|
| Application range | For medium-sized and heavy tractors and large construction machines with a straight construction | |
|---|
| Properties | - Seat cushion width 530 mm
- Spring travel: 100 mm
- Infinitely variable height adjustment 80 mm, air-assisted
- Horizontal adjustment 210 mm
- Mechanically adjustable lumbar support
- Automatic weight adjustment 50–130 kg
- Weight 53 kg
- APS: automatic positioning system
| |
|---|
| Benefits | - Extremely comfortable seat
- Protects the back from impacts
- Prevents the seat from rocking
| |
|---|
| Includes | - Seat with backrest extension
- Arm rests height adjustable and inclination adjustable 60x380mm
- Rotation adaptor 20°
- Integrated air compressor (12V)
| |
|---|
| Long description | - Application range:
- For medium-sized and heavy tractors and large construction machines with a straight construction
- Benefits:
- Extremely comfortable seat
- Protects the back from impacts
- Prevents the seat from rocking
- Consists of:
- Seat
- With backrest extension
- Arm rests, height adjustable and inclination adjustable 60 mm x 380 mm
- Rotation adapter 20°
- Integrated air compressor (12 V)
- Details:
- Air-sprung seat with low-frequency suspension
- Longitudinal horizontal suspension
- Damper, adjustable
- Properties:
- Seat cushion width 530 mm
- Spring travel: 100 mm
- Infinitely variable height adjustment 80 mm, air-assisted
- Horizontal adjustment 210 mm
- Mechanically adjustable lumbar support
- Automatic weight adjustment 50–130 kg
- Weight 53 kg
- APS: automatic positioning system
| |
|---|
| Suspension type | Pneumatic | |
|---|
| Upholstery material | Fabric | |
|---|
| Upholstery colour | Black | |
|---|
| Total width | 530 mm | |
|---|
| Consists of | - Seat
- With backrest extension
- Arm rests, height adjustable and inclination adjustable 60 mm x 380 mm
- Rotation adapter 20°
- Integrated air compressor (12 V)
| |
|---|
| Armrests included | Yes | |
|---|
| Backrest extension included | Yes | |
|---|
| Seatbelt included | No | |
|---|
| Contact switch included | No | |
|---|
| Auto user weight adjustment | Yes | |
|---|
| Model | MSG95AL/731 | |
|---|
| Back angle adjustment | 35 ° | |
|---|
| Height adjustment | 8 cm | |
|---|
| Depth | 605 mm | |
|---|
| Min. working load | 50 kg | |
|---|
| Suspension stroke | 10 cm | |
|---|
| Max. working load | 130 kg | |
|---|
| Suitable for machine/vehicle model | MSG95AL/731 | |
|---|
| Total height | 766 mm | |
|---|
| Heating kit included | No | |
|---|
| Total length | 605 mm | |
|---|
| Supply voltage | 12 V | |
|---|
| Additional info | *Please note that this item is either a dangerous good or a non-standard delivery size. This means a specialist carrier will be used and this item will take upto 48 hours to deliver. | |
|---|
