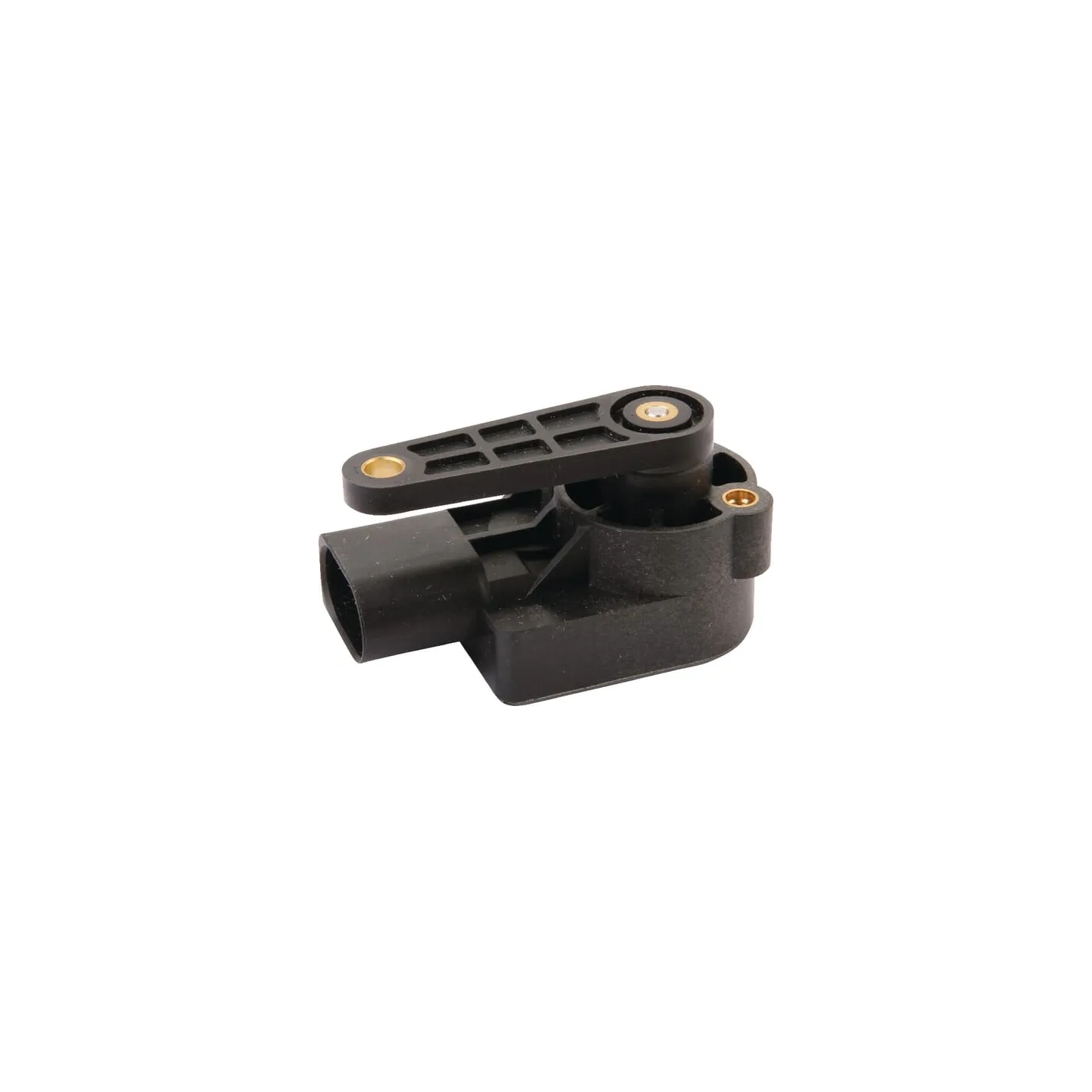

Stūra sensors 5V/9-32V/108 6PD009583011

Name: Stūra sensors 5V/9-32V/108 6PD009583011
Brand: Hella
SKU: 6PD009583011
Price: 249.62 EUR
Availability: InStock

Apmaksas iespējas

249,62 €

AR PVN

4-5 Darba dienas

Stūra sensors 5V/9-32V/108 6PD009583011 Hella

IR NOLIKTAVĀ

ID: 59794

Apraksts

Part number	6PD009583011
EAN
Unit	Each
Details	Specially designed for failure detection Internal 14 bit resolution
Application range	For many different applications to measure angles accurately and reliably, even in tough environments Can be installed any offset angle that is a multiple of 120°
Properties	Unlimited mechanical angle range (360°) Zero position can be individually programmed High thermal stability and linearity High insensitivity to magnetic fields
Benefits	Improves the reliability of the overall system High precision
Measuring range	-54-54 °
Plug type	AMP
Operating voltage	9-32 V
Output signal	0.5 - 4.5 V
Insulation class	6K9K
Operation temperature	-40-85 °C
Original number equivalent	6PD 009 583-011
