Kabeļa savienotājs - 6 kontaktu savienotājs 8KW744810801

Name: Kabeļa savienotājs - 6 kontaktu savienotājs 8KW744810801
Brand: Hella
SKU: 8KW744810801
Price: 22.11 EUR
Availability: InStock

Apmaksas iespējas

22,11 €

AR PVN

4-5 Darba dienas

Kabeļa savienotājs - 6 kontaktu savienotājs 8KW744810801 Hella

IR NOLIKTAVĀ

ID: 62851

Apraksts

Part number	8KW744810801
EAN	4082300178791
Unit	Each
Properties	Current transmission: 14 A — with a 1.5 mm² cable
Number of poles	6
Series	SuperSeal

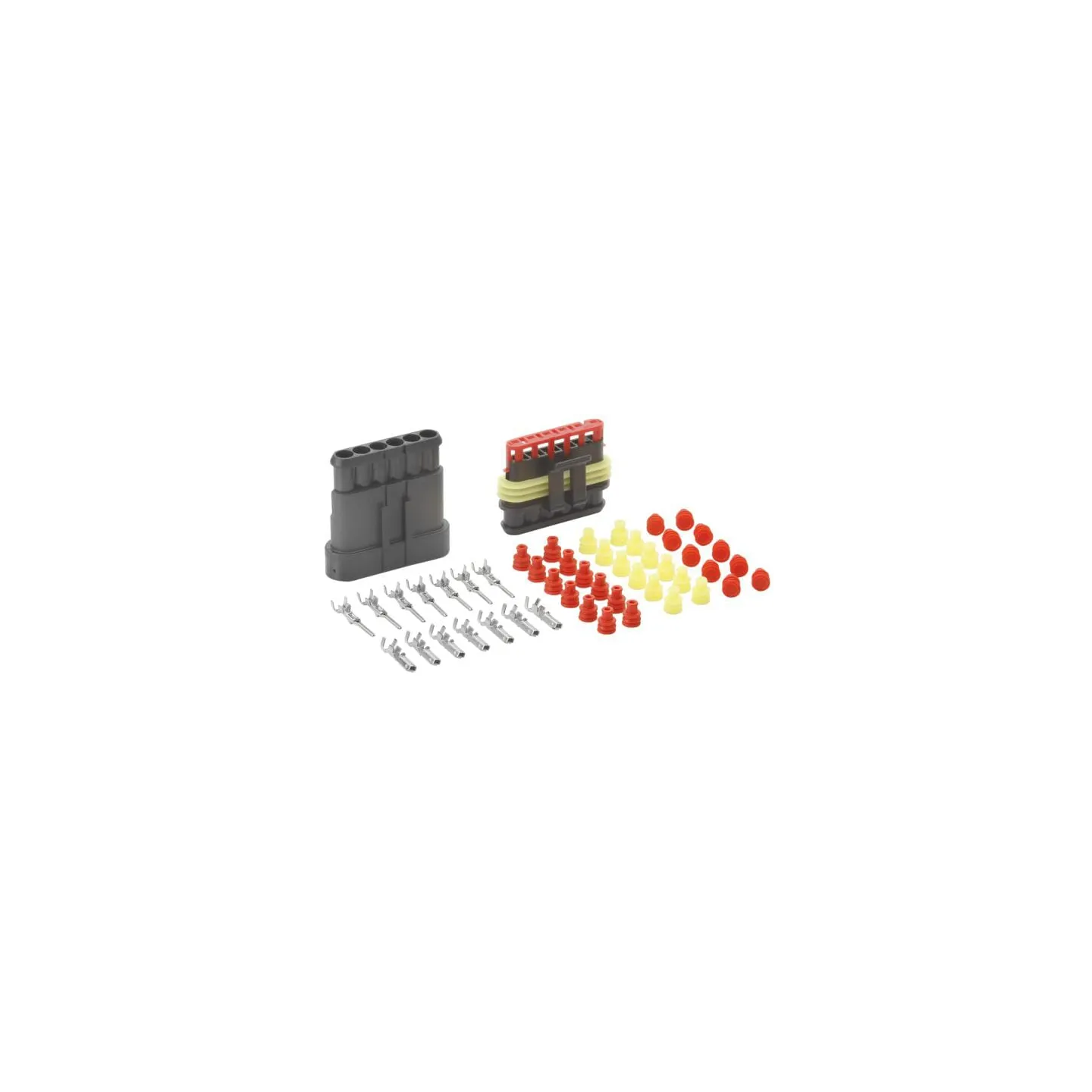

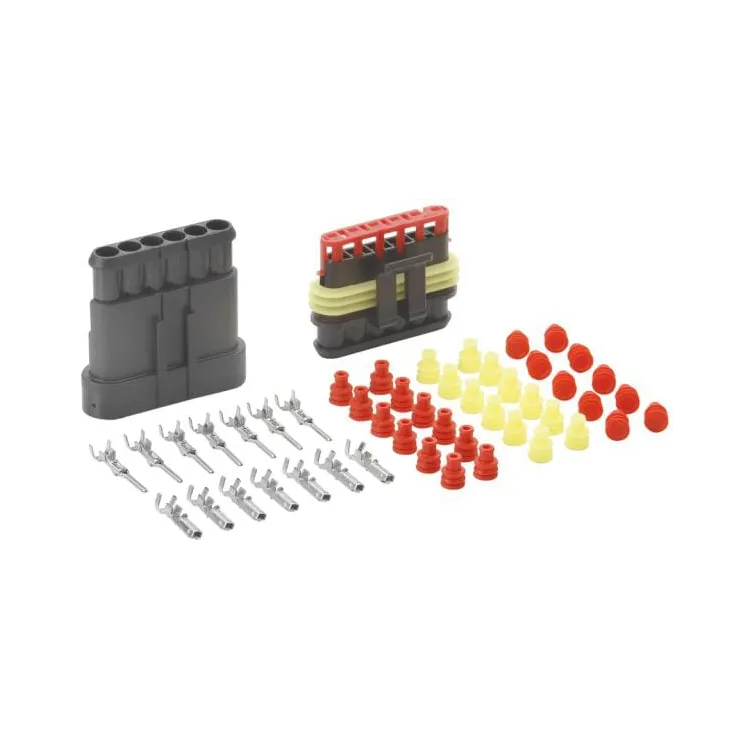

Consists of	Plug housing Bush housing Contact pin 1 – 1.5 mm² Bushing contacts 1 – 1.5 mm² Seals for individual wires 1.8 – 3.3 mm Transport plug
Nominal voltage range	12-24 V
Protection class IP	67
Connection type male/female - connection no 1	Male
Connection 2, connection type	6.3L
Connection 3, connection type	6.3L
DIN standard	40050
IEC standard	529
Electric category	Sensor Signal
Content in sale unit	1 pcs
Packing type	Blister
