Ligzda 7-pin 8JB001941001

Name: Ligzda 7-pin 8JB001941001
Brand: Hella
SKU: 8JB001941001
Price: 11.91 EUR
Availability: InStock

Apmaksas iespējas

11,91 €

AR PVN

4-5 Darba dienas

Ligzda 7-pin 8JB001941001 Hella

IR NOLIKTAVĀ

ID: 62858

Apraksts

Part number	8JB001941001
EAN	4082300102802
Unit	Each

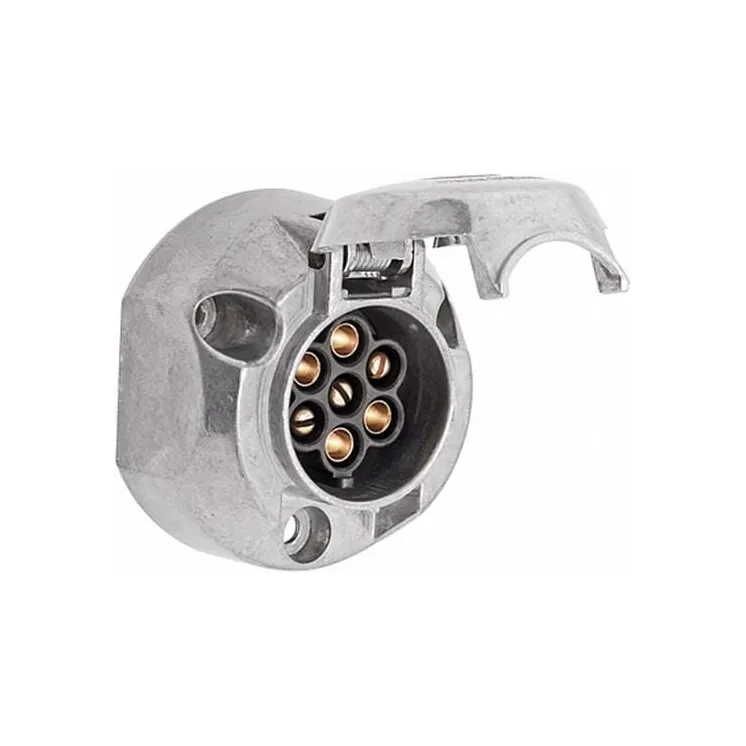

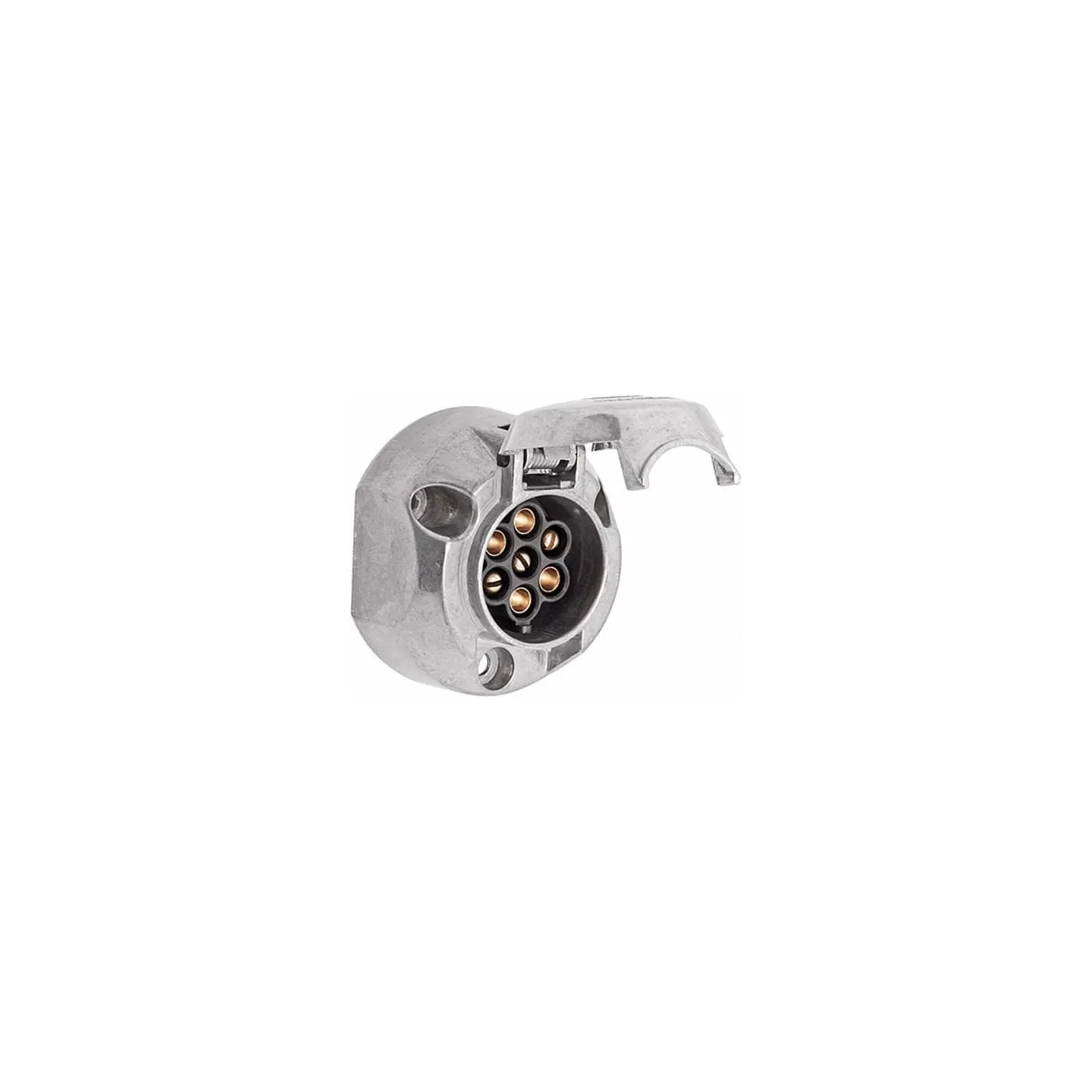

Long description	7-pin socket panel surface mounted metal Hella
Product details	Socket panel DIN ISO 1724. Metal design With cover 7 connections Power handling: 16A at 12V (1.5 mm²), 25A at 12V (2.5 mm²)"
Operating current	16 A
Number of poles	7
Series	A
Cable position type - connection no 1	Standard
Nominal voltage	12 V
Nominal voltage range	12-24 V
Type	Screw terminal
Connection type male/female - connection no 1	Female
Connection 2, connection type	7-pin
Connection 3, connection type	7-pin
Min. cable cross section	1.5 mm²
ISO standard	1724
Poles material	Tin
Electric category	Trailer lighting
Packing type	Blister
