| Part number | 8JB001946011 | |
|---|---|---|
| EAN | 4082300212273 | |
| Unit | Each | |

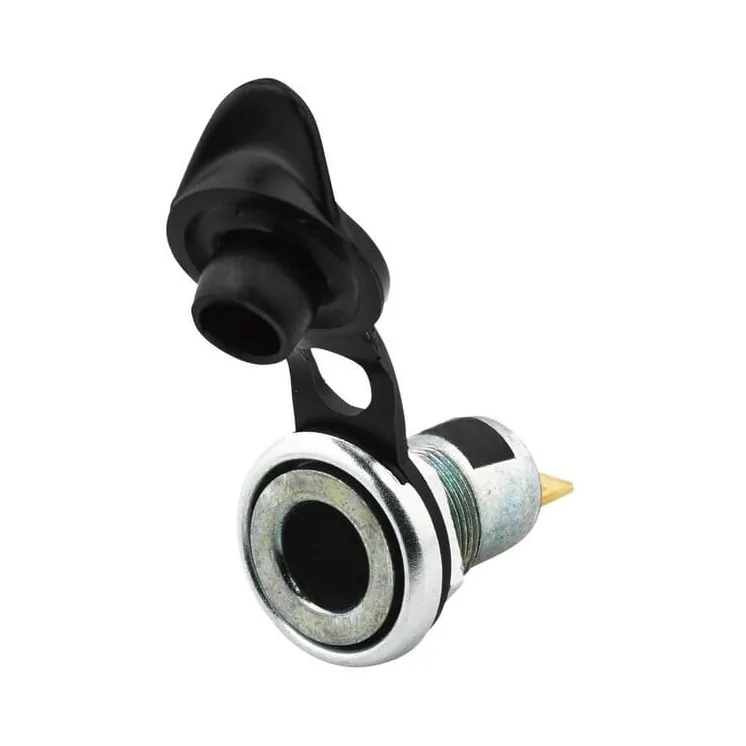

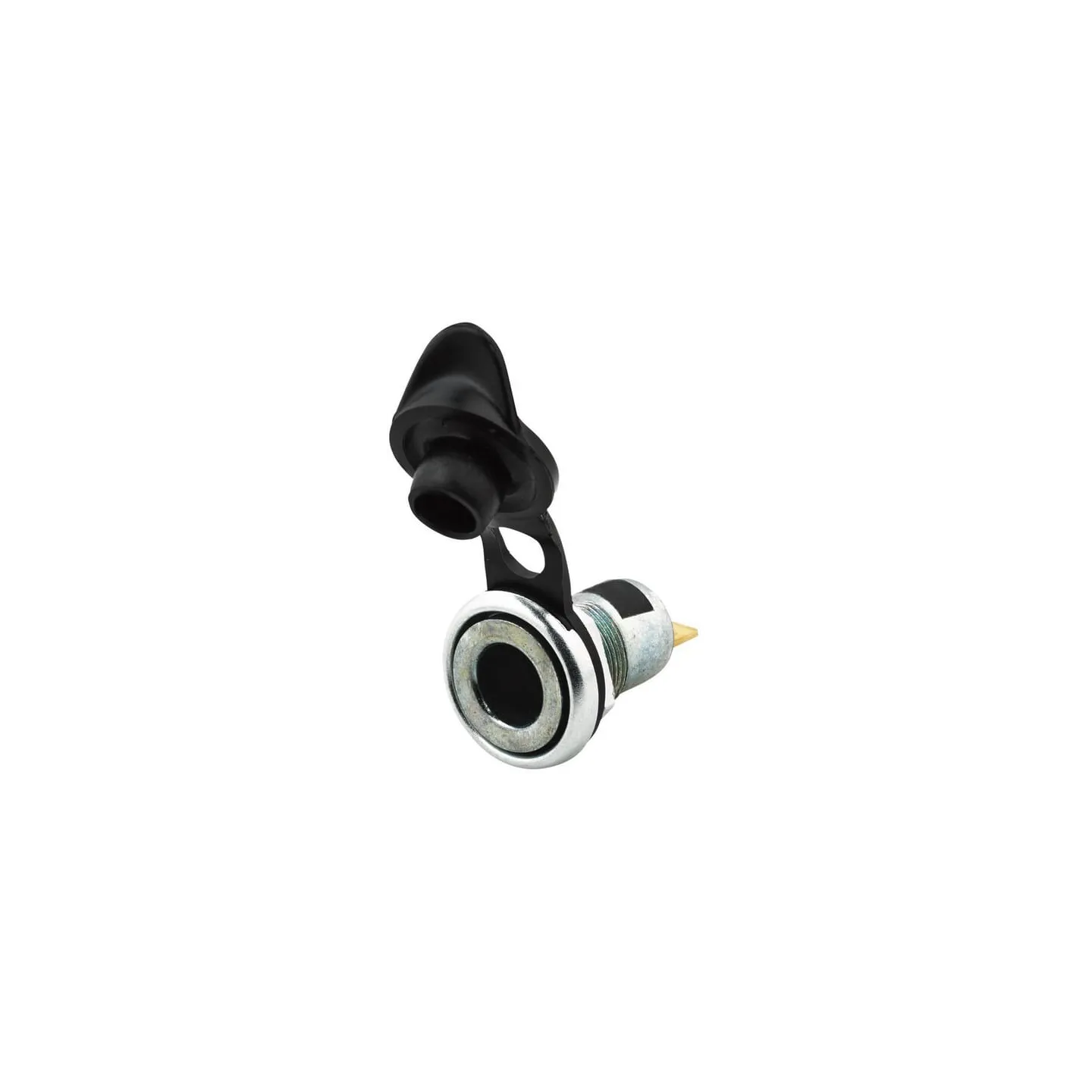

| Long description | 2-pole socket, flush-mounted 8JB.001.946-011/021 | |
| Details | Socket with screw or flat connections 6.3mm in accordance with DIN ISO 4165 | |
| Properties | With cap - Earthed via sleeve - Slip-in tube with stopper - Installation Ø 18.5mm - For plate thickness to max. 7mm - Load capacity: 8 A at 24 V | |
| Operating current | 8 A | |
| Number of poles | 1 | |
| Cable position type - connection no 1 | Straight | |
| Nominal voltage | 24 V | |
| Nominal voltage range | 12-24 V | |
| Type | Flat terminal | |
| Connection type male/female - connection no 1 | Female | |
| Electric category | Power | |
| Length | 48 mm | |
| Width | 22 mm |
