Kontaktligzda - 24 V - 4 kontaktu savienotājs - Spraudnis: Skrūvējamais kontakts 8JB001944011 Hella 8JB001944001

Kontaktligzda - 24 V - 4 kontaktu savienotājs - Spraudnis: Skrūvējamais kontakts 8JB001944011 8JB001944001

Name: Kontaktligzda - 24 V - 4 kontaktu savienotājs - Spraudnis: Skrūvējamais kontakts 8JB001944011 8JB001944001
Brand: Hella
SKU: 8JB001944011
Price: 11.53 EUR
Availability: InStock

Apmaksas iespējas

11,53 €

AR PVN

4-5 Darba dienas

Kontaktligzda - 24 V - 4 kontaktu savienotājs - Spraudnis: Skrūvējamais kontakts 8JB001944011 Hella 8JB001944001

IR NOLIKTAVĀ

ID: 62984

Apraksts

Part number	8JB001944011
EAN	4082300178586
Unit	Each

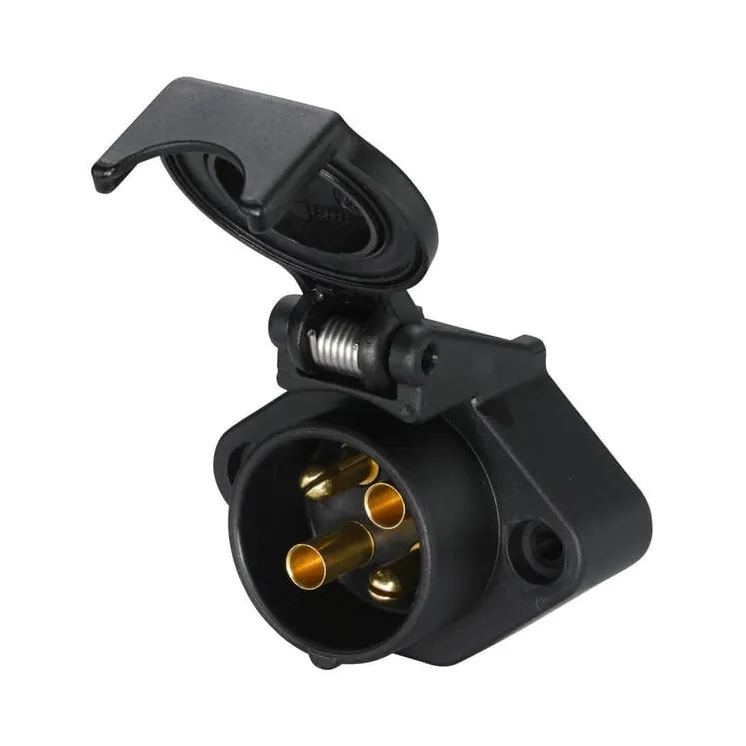

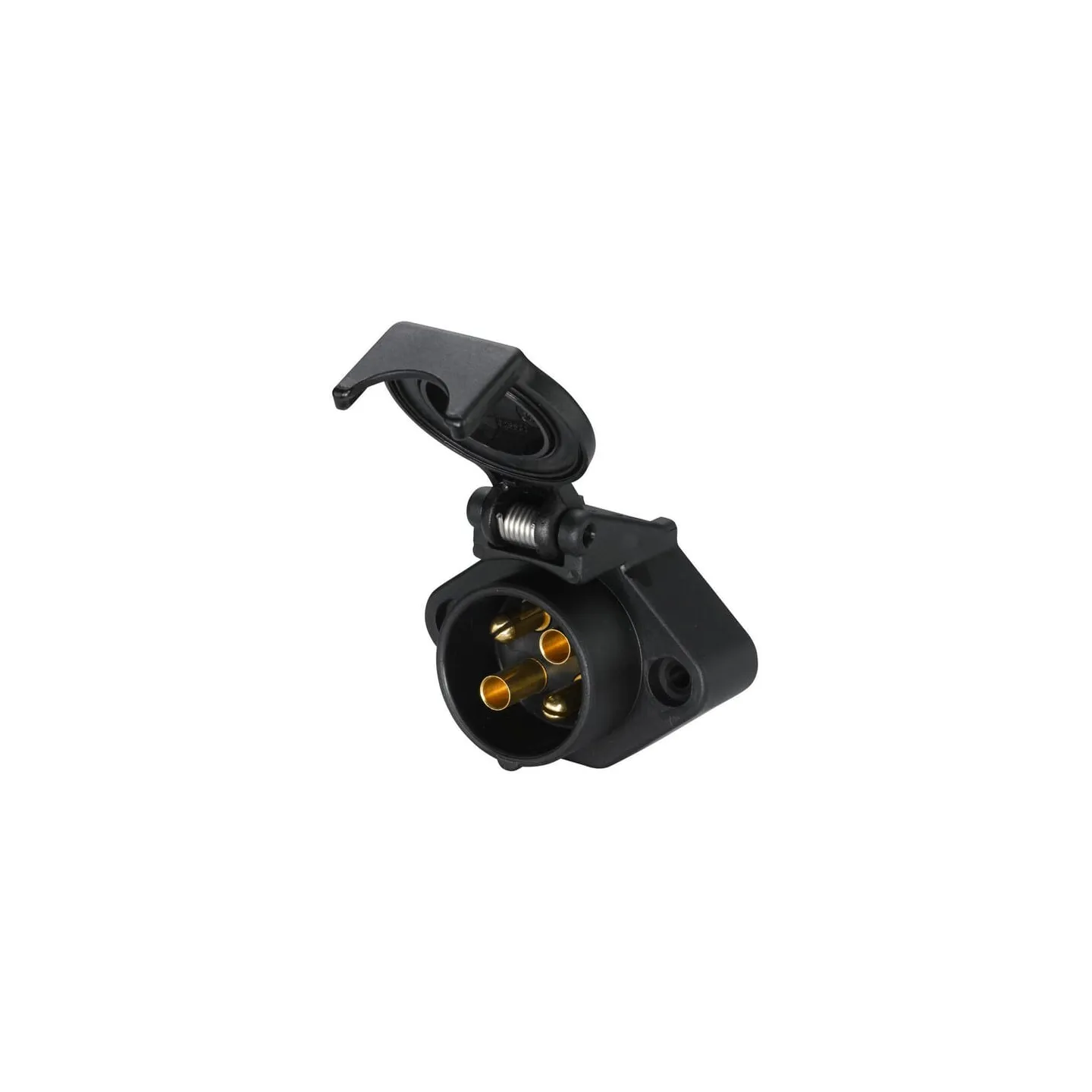

Details	Socket with screw connection in accordance with DIN ISO 72575 A4 Housing made from black plastic With seal in lid
Application range	The 4-pin connector system is used for transmitting additional functions between the tractor unit and the trailer. Corresponding plug 8JA001920011
Properties	Temperature range: -40°C to +80°C Power rating: 16 A at 24V (1.5mm²), 25 A at 24V (2.5mm²) 90-degree cable outlet for cables Ø 7.2–9.0mm
Operating current	16 A 25 A
Number of poles	4
Series	A
Cable position type - connection no 1	Straight
Nominal voltage	24 V
Nominal voltage range	12-24 V
Housing colour	Black
Type	Screw terminal
Connection type male/female - connection no 1	Female
Electric category	Trailer lighting
