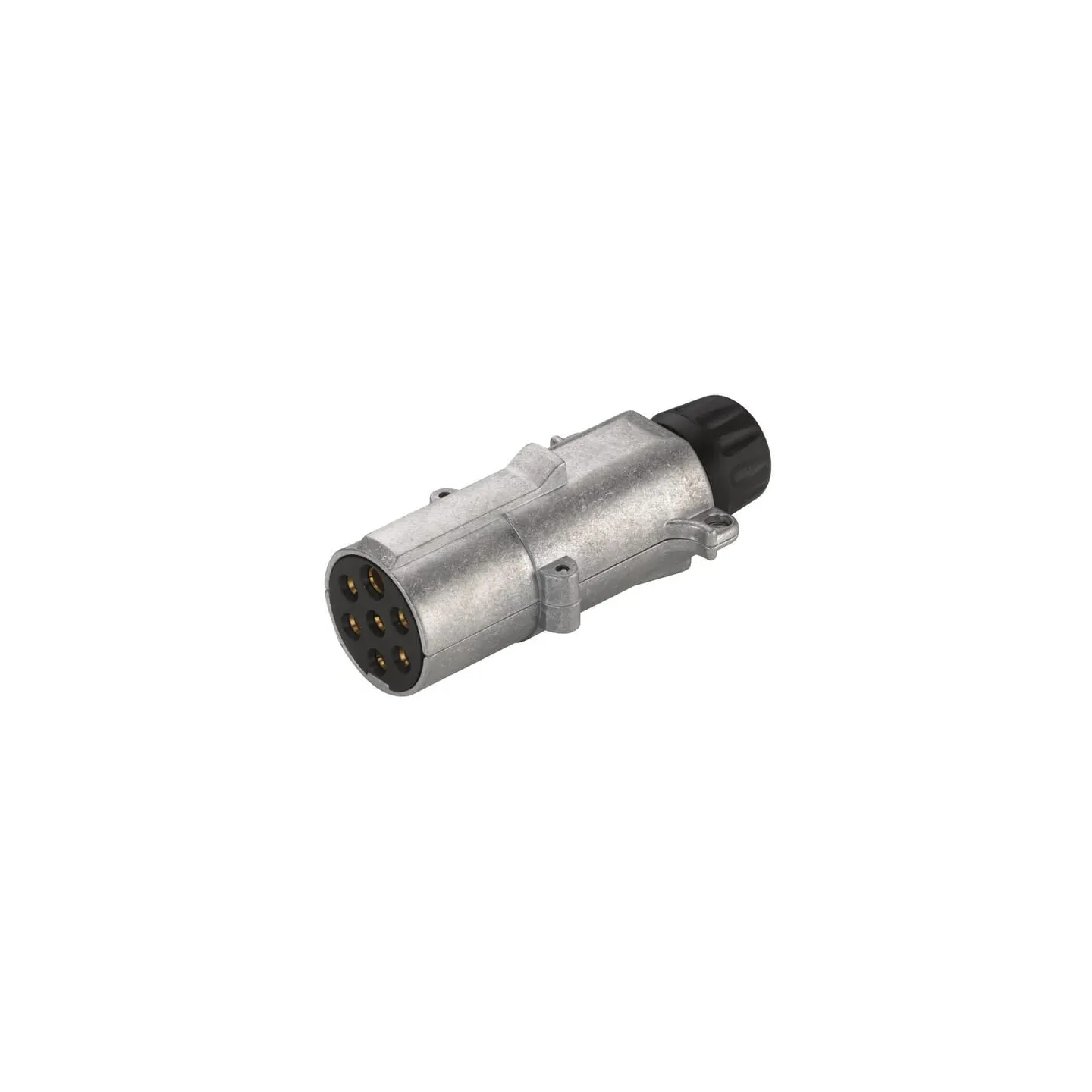

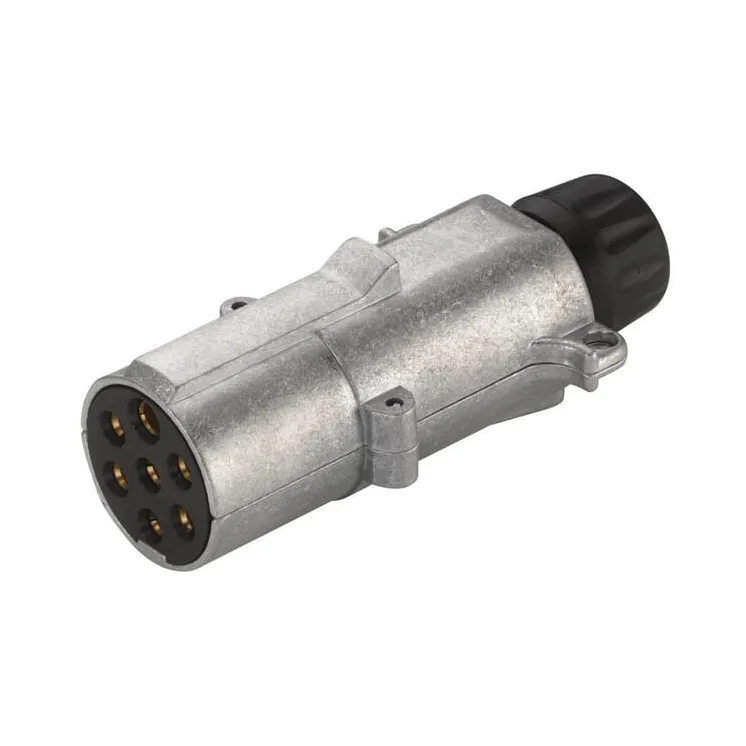

Spraudnis - 24V - 7 kontaktu savienotājs - Spraudnis: Skrūvējamais kontakts 8JA003831001

Name: Spraudnis - 24V - 7 kontaktu savienotājs - Spraudnis: Skrūvējamais kontakts 8JA003831001
Brand: Hella
SKU: 8JA003831001
Price: 10.7 EUR
Availability: InStock

Apmaksas iespējas

10,70 €

AR PVN

4-5 Darba dienas

Spraudnis - 24V - 7 kontaktu savienotājs - Spraudnis: Skrūvējamais kontakts 8JA003831001 Hella

IR NOLIKTAVĀ

ID: 63201

Apraksts

Part number	8JA003831001
EAN	4082300193046
Unit	Each
Details	7 pin metal trailer plug suitable for 24V systems With screw connections
Application range	For 24V trailer lighting
Operating current	16 A 25 A
Number of poles	7
Series	A
Cable position type - connection no 1	Straight
Nominal voltage	12 V
Nominal voltage range	12-24 V
Type	Screw terminal
Connection type male/female - connection no 1	Male
Connection 2, connection type	7-pin
Connection 3, connection type	7-pin
ISO standard	1185
Poles material	Metal
Electric category	Trailer lighting
Min. cable core diameter	1.5 mm
Max. cable core diameter	2.5 mm
