Spraudnis 7-polu metāla 8JA001918002 8JA001918009

Name: Spraudnis 7-polu metāla 8JA001918002 8JA001918009
Brand: Hella
SKU: 8JA001918002
Price: 6.61 EUR
Availability: InStock

Apmaksas iespējas

6,61 €

AR PVN

4-5 Darba dienas

Spraudnis 7-polu metāla 8JA001918002 Hella 8JA001918009

IR NOLIKTAVĀ

ID: 63217

Apraksts

Part number	8JA001918002
EAN	4082300171662
Unit	Each

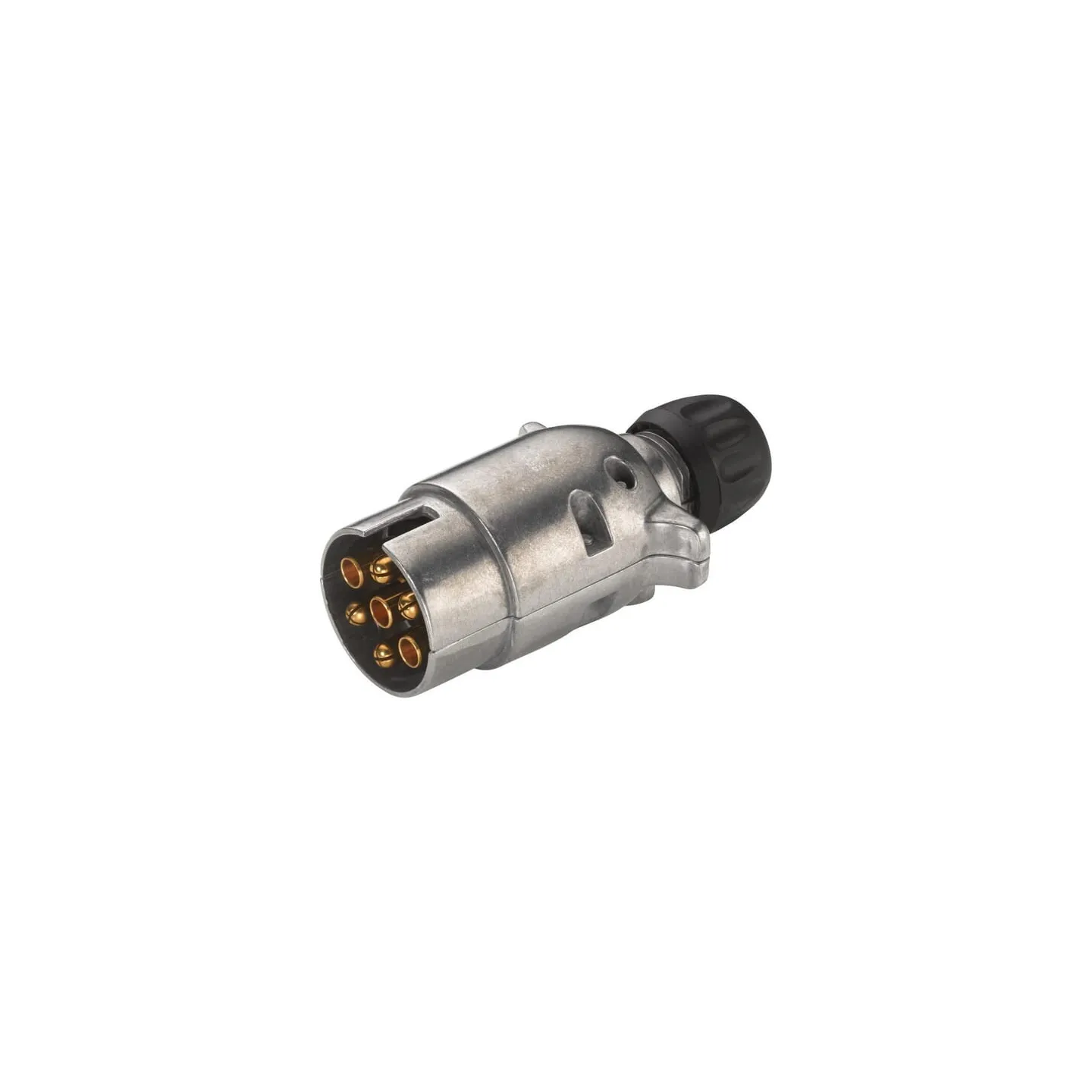

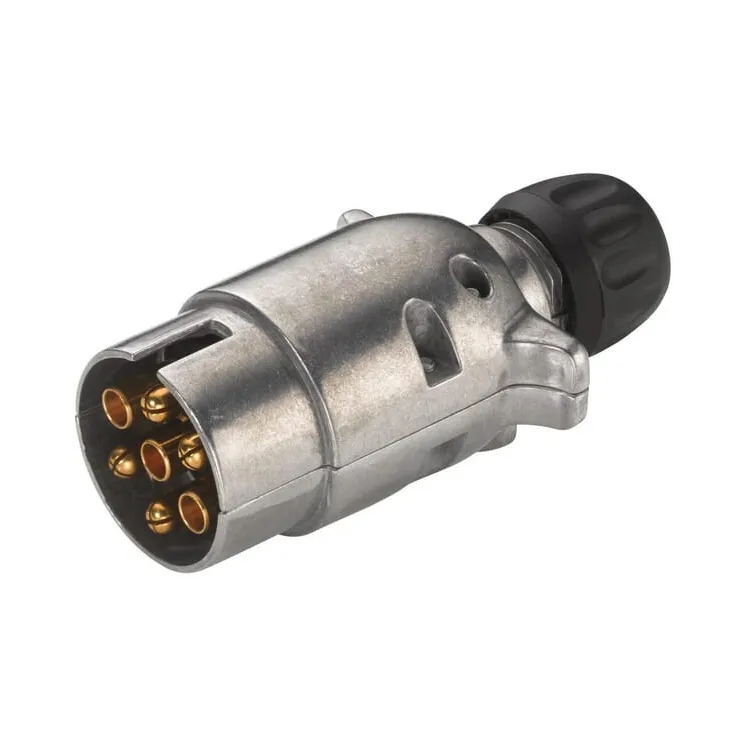

Long description	7-pin metal plug with strain relief in accordance with DIN ISO 1724
Details	7 pin metal trailer plug suitable for 12V systems strain relief in accordance with DIN ISO 1724
Product details	Metal design Power handling: 16A at 24V (1.5mm²), 25A at 24V (2.5mm²)
Application range	For 12V trailer lighting
Operating current	16 A 25 A
Number of poles	7
Series	A
Cable position type - connection no 1	Straight
Nominal voltage	12 V
Nominal voltage range	12-24 V
Type	Screw terminal
Connection type male/female - connection no 1	Male
Connection 2, connection type	7-pin
Connection 3, connection type	7-pin
ISO standard	1724
Electric category	Trailer lighting
Min. cable core diameter	1.5 mm
Max. cable core diameter	2.5 mm
