Pievienojiet 7 kontaktu asmens spaili 8JA001918011

Name: Pievienojiet 7 kontaktu asmens spaili 8JA001918011
Brand: Hella
SKU: 8JA001918011
Price: 8.76 EUR
Availability: InStock

Apmaksas iespējas

8,76 €

AR PVN

4-5 Darba dienas

Pievienojiet 7 kontaktu asmens spaili 8JA001918011 Hella

IR NOLIKTAVĀ

ID: 63218

Apraksts

Part number	8JA001918011
EAN	4082300192902
Unit	Each

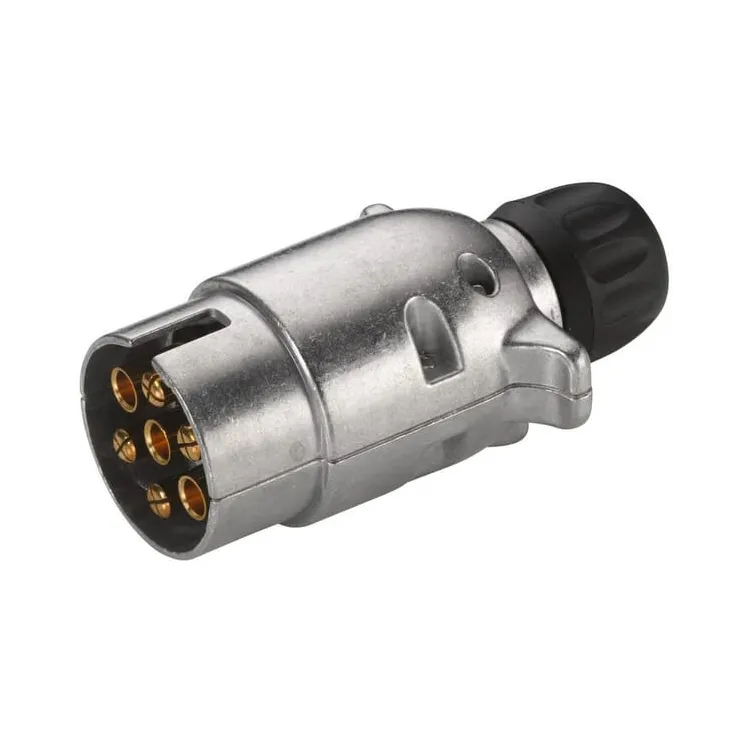

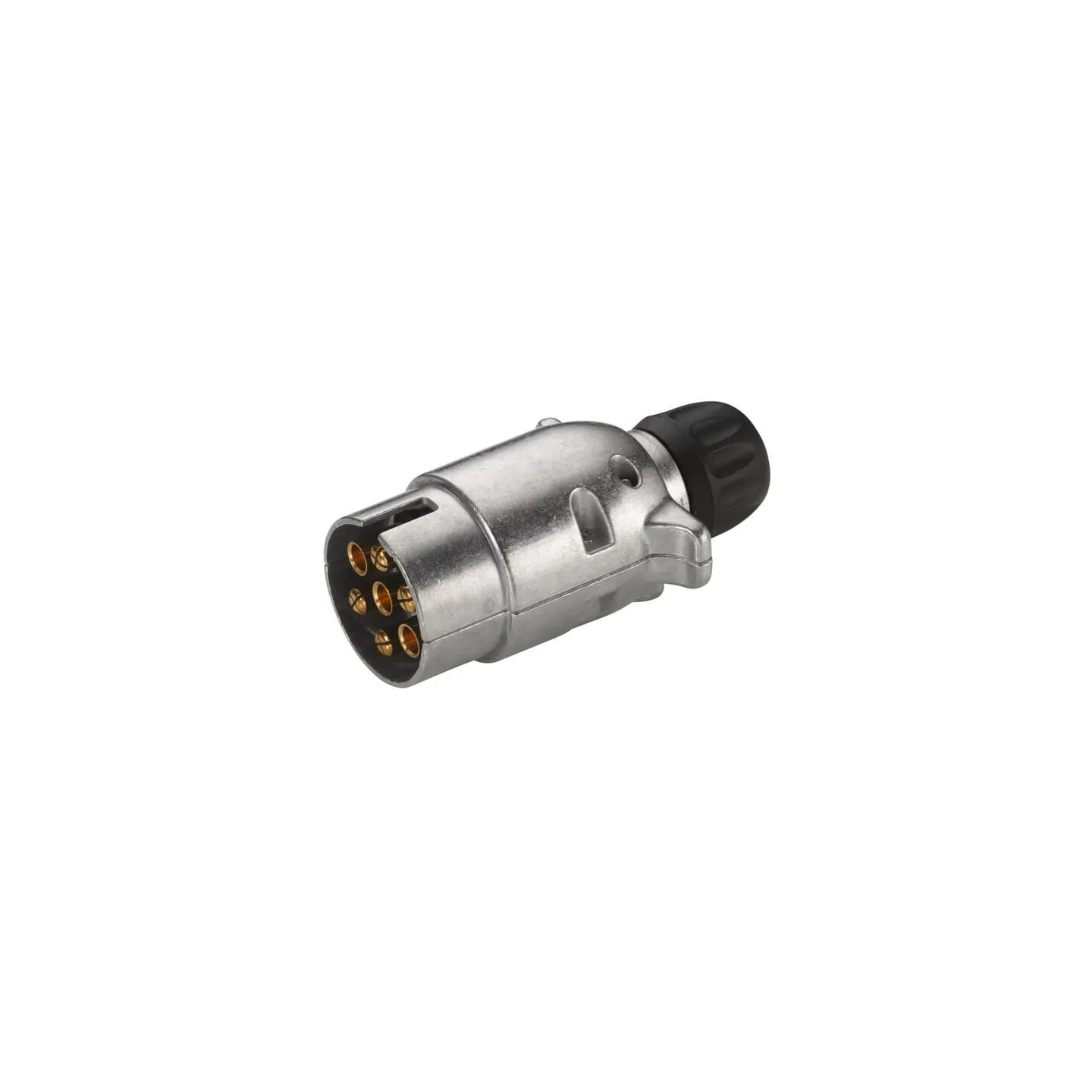

Long description	7-pin metal plug with strain relief in accordance with DIN ISO 1724
Details	7 pin metal trailer plug suitable for 12V systems strain relief in accordance with DIN ISO 1724
Product details	Metal design Power handling: 16A at 24V (1.5mm²), 25A at 24V (2.5mm²)
Application range	For 12V trailer lighting
Operating current	16 A
Number of poles	7
Series	A
Cable position type - connection no 1	Straight
Nominal voltage	12 V
Nominal voltage range	12-24 V
Type	Flat terminal
Connection type male/female - connection no 1	Male
Connection 2, connection type	7-pin
Electric category	Trailer lighting
Extra info	with 6.3mm blade terminal connection
